Visualizers
AVerVision M15-13M
Mechanical Arm Visualizer
Explore the Creativity of Teaching
- 1/3.06' VCMImage sensor
- 13 megapixelsTotal pixels
- 60fps (max.)Frame rate

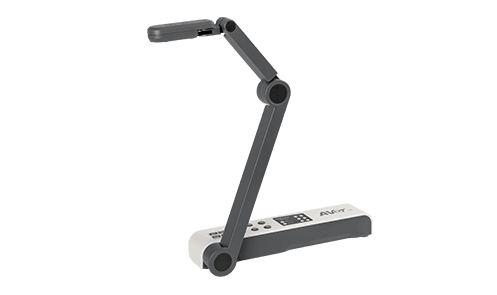

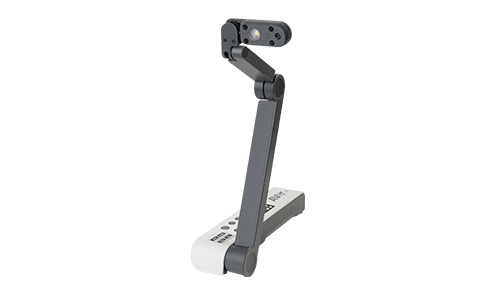

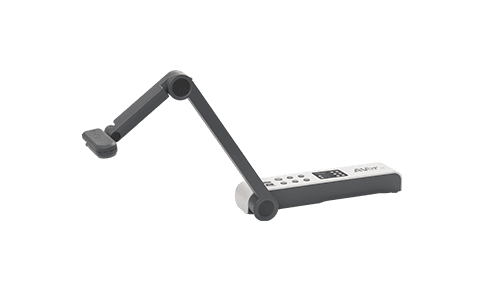

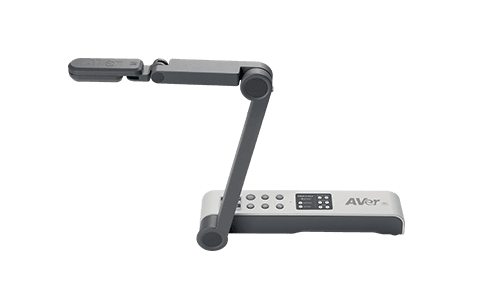

Product views
Overview
The M15-13M is a visualizer (document camera) designed to facilitate learning at all education levels. The beautifully sleek, compact design reflects the quality of its stunning 13-megapixel camera with 4K, 60fps imaging. Create an engaging and creative learning experience in a second with the M15-13M.
13-Megapixel Camera with 4K Quality
The 13-megapixel camera delivers 4K Ultra HD 60fps output resolution, creating remarkably detailed images of any object. Enjoy breathtaking video with no lag.
Fantastic USB Camera for Distance Learning
The M15-13M’s extremely compact and lightweight design makes it the best USB camera for boundary-free distance learning.

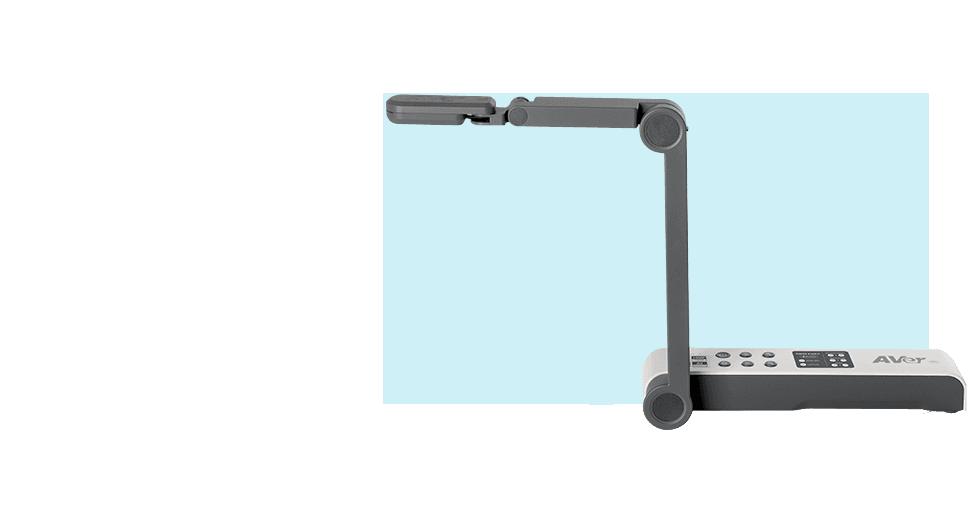

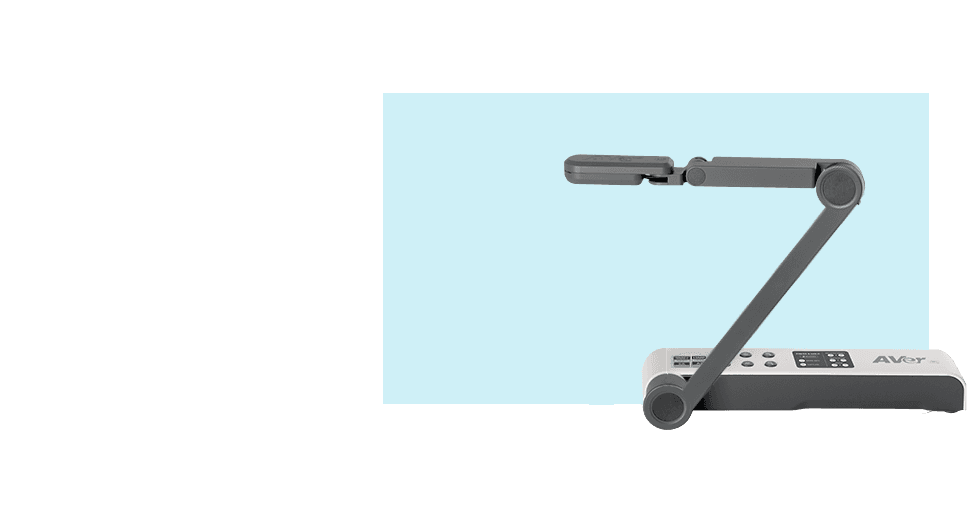

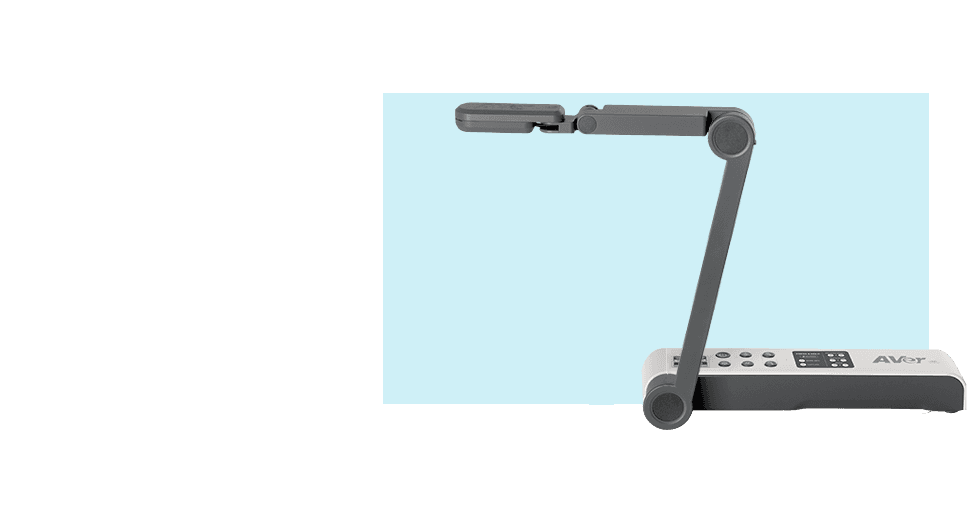

Highly Flexible Foldable Arm

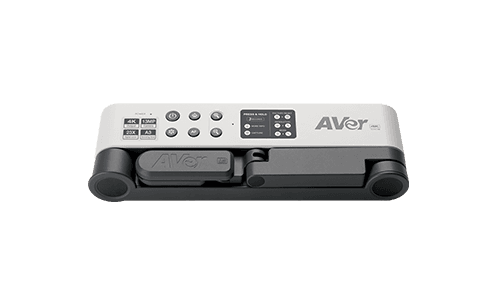

The flexible and adjustable arm allows teachers to show materials from many different angles. Also, the M15-13M’s arm conveniently folds shut so teachers can easily carry it anywhere.

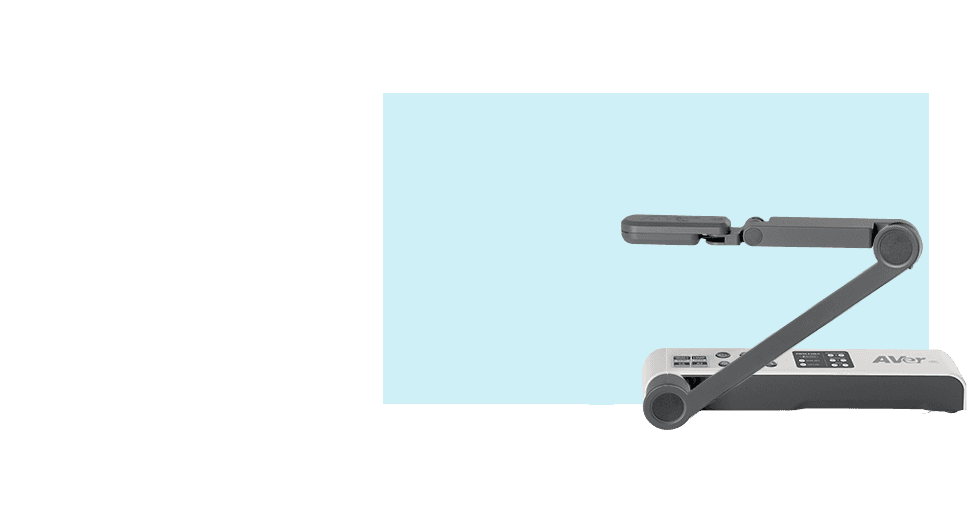

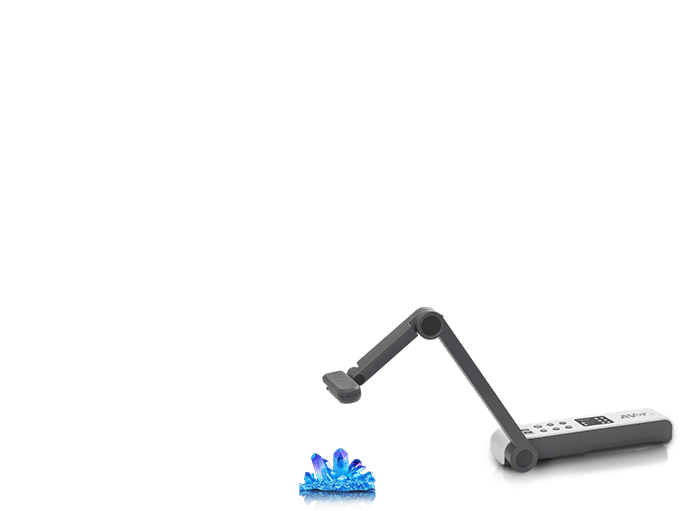

A3 Shooting Area
A large shooting area enables users to capture A3 or bigger papers. Also, never worry about upside-down images again. Thanks to the position indicator on the camera head, teachers can always rock an accurate and efficient display.
USB & HDMI Connections
Changing teaching behavior should be the least of your concerns. Teachers can visualize materials from multiple devices via the USB and HDMI connections they’re accustomed to using.
A+ Suite
Classroom Software for AVer Visualizers
Explore new possibilities!
- Integrate live images into existing teaching material, while accessing visualizer functions.
- Upload lessons to YouTube™, DropBox™, classroom management sites and more!
- Stream live video from a second visualizer in picture-in-picture mode.
- Create your own media library then compare them side-by-side.
- View and adjust live visualizer images via an Interactive Flat Panel (IFP) or IWB.
- Create an interactive, and 1 to 1 learning environment with Sphere2 and ClassSend.
Optional Accessories
-
Carrying bag
-
Anti-glare sheet
Specifications
Image sensor
| Image sensor | 1/3.06' VCM |
|---|---|
| Total pixels | 13 megapixels |
| Frame rate | 60fps (max.) |
| Output resolution | 4K Full HD 1080p 60Hz HD 720p 60Hz |
| Zoom | Total 23X (max.) |
| Shooting area | A3 (426 x 313 mm at 330 mm) |
| Focus | Auto Manual Area (via software) |
| TV lines | 1400 |

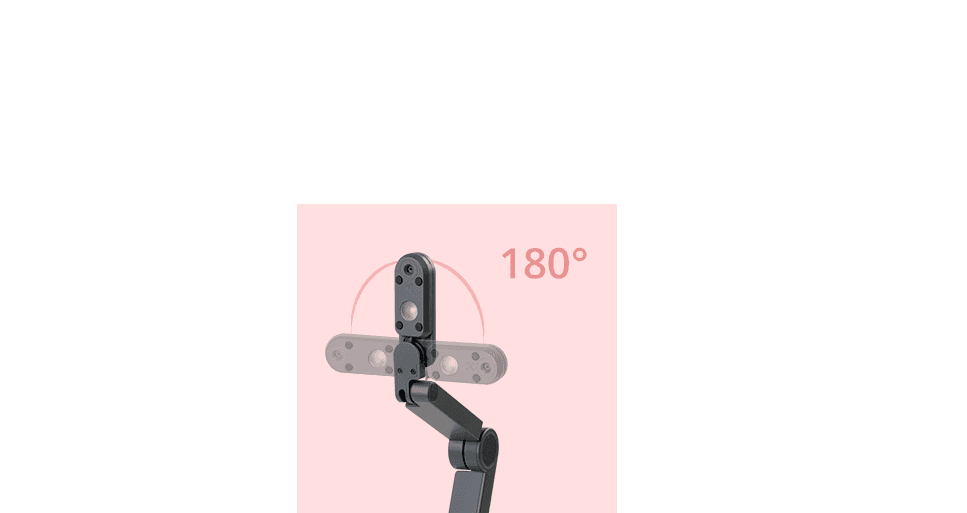

| Image rotation | 0° / 90° / 180° (via camera head rotation) |
| Effect | Rotate / Freeze |
| Image effects | Color / B&W / Negative |
| Image adjustments (white balance / exposure) | Auto / Manual |
| Recording | Yes, via software |
| Capture | Yes, via software |
| Annotation | Yes, via software |
| Timer | Yes, via software |
| Picture-by-picture | Yes, via software |
| Preview mode | Normal / Motion / High Quality |
| Capture mode | Single, via software |
| User profile | 1 |
| Flicker filter control | Yes |
| ePTZ | Yes, via software |
| Cloud library | Yes, via software |
| Lamp type | LED light |
| MIC | Built-in |
| USB port | Yes, USB Type mini-B x 1 |
| Dimensions (L x W x H) | Operating: 518 mm (L) x 84 mm (W) x 351 mm (H) Folded: 280 mm (L) x 84 mm (W) x 42 mm (H) |
| Weight | 0.68 kg (1.5 lbs) |
| Warranty | Visualizer: 3 years Battery and accessories: 1 year |
| Power source | DC 5V/2A, AC 100-240V |
| Consumption | 4 Watts (lamp on) 3.5 Watts (lamp off) |
| Windows® OS | Windows® 8, 8.1, 10, 11 |
| Mac® OS | macOS® X 10.15, 11, 12 |
| Chrome OS™ | Chrome OS™ 76 or above |
| Package Contents | AVerVision M15-13M unit quick guide software mini CD1 USB cable power adapter (DC 5V) warranty card |
| Optional accessories | Carrying bag Anti-glare sheet |
1 Software mini CD is available in EU market only.
† Android is a trademark of Google LLC.
