AVerVision F17+
Flexible Arm Interactive Visualizer (Document Camera)
Creativity and Versatility at Your Fingertips
- 23X Digital ZoomZoom
- 13MTotal pixels
- 1,500 (max.)TV lines

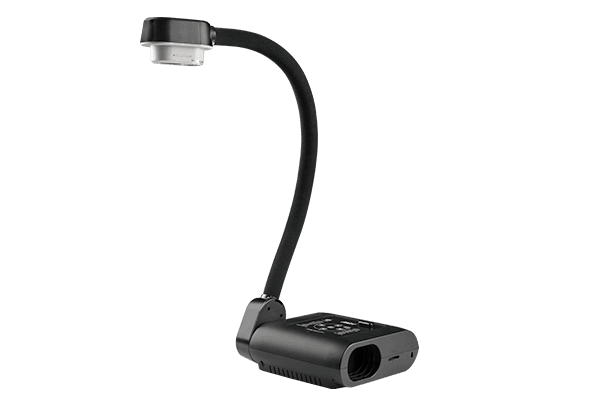

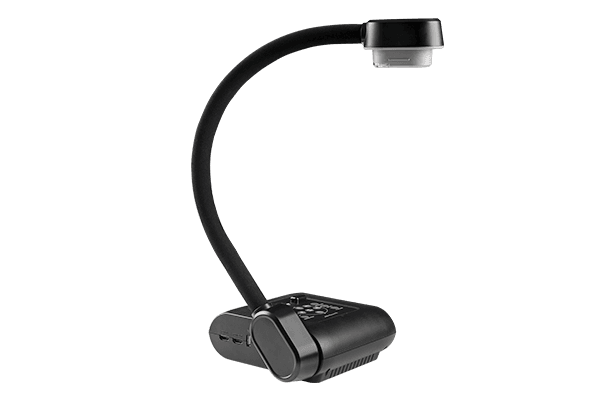

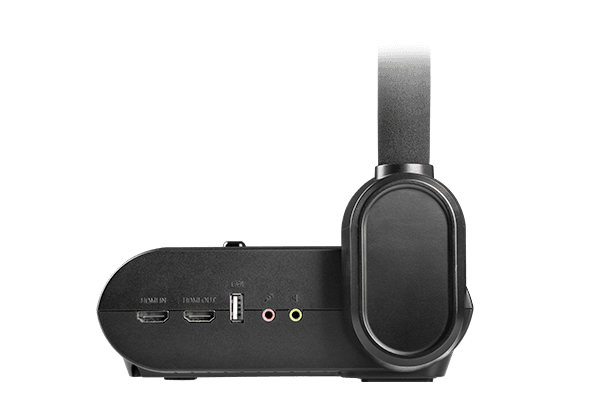

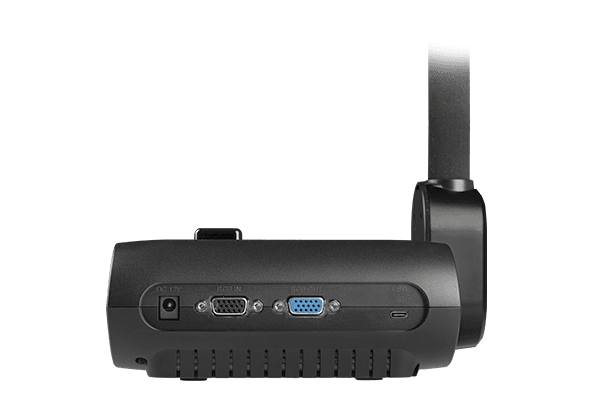

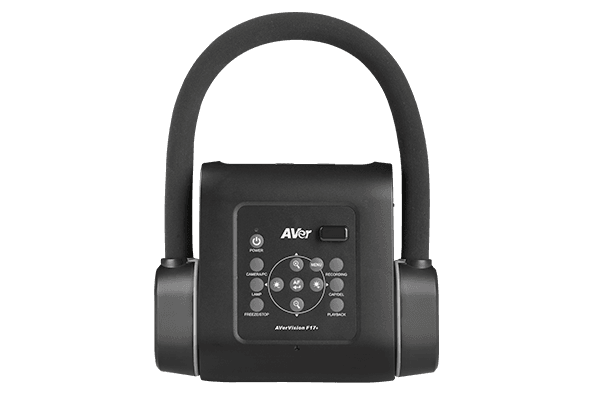

Product views
Overview
AVerVision F17+ is a visualizer suitable for every classroom. Its 13-megapixel camera delivers 4K image quality, letting you easily present teaching material with its 23X zoom. Helping to inspire students’ limitless creativity through hybrid interactive learning has never been easier than with the F17+.
Beautiful Image Quality
The 13-megapixel camera combined with its 23X total zoom allows you to display your teaching material in a brilliant manner and lets students push their boundaries of imagination.

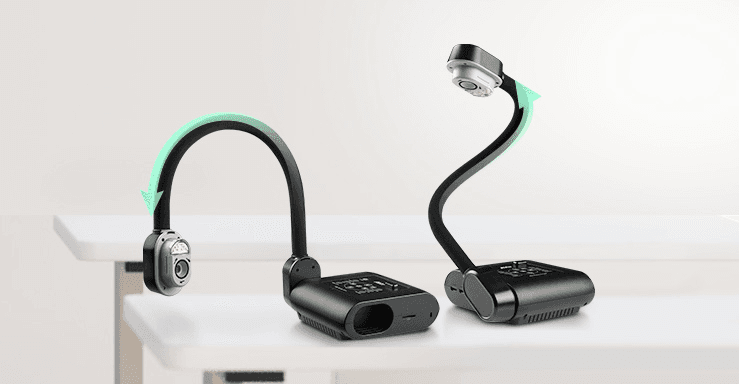

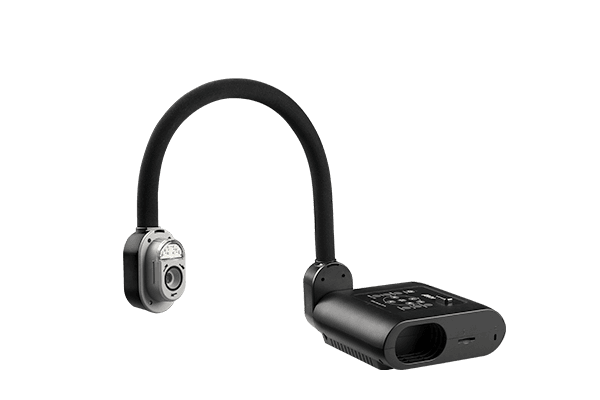

360-degree Flexible Arm
Bend and adjust the gooseneck however you want to always find the best viewing angle of people and teaching materials.
Image Streaming in 4K Quality
Present your teaching materials to the class with 4K resolution video quality via HDMI connectivity from your device to the display.
Ideal for Hybrid Learning
F17+ is the right fit for hybrid classrooms. With a single button to snapshot and record, F17+ can instantly make any teaching materials digital and interactive. Furthermore, teachers can also use the F17+ as an USB camera to start online teaching right away.
Included AVerTouch Software Enhances Remote Teaching
Powerful AVerTouch software exclusively designed for AVer visualizers comes included. One touch connects your visualizer with your computer for easy content sharing, and cloud sync support offers automatic annotation, capture, and recording backup. AVerTouch engages students online and offline.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

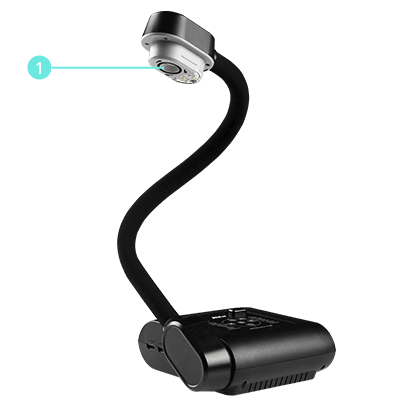

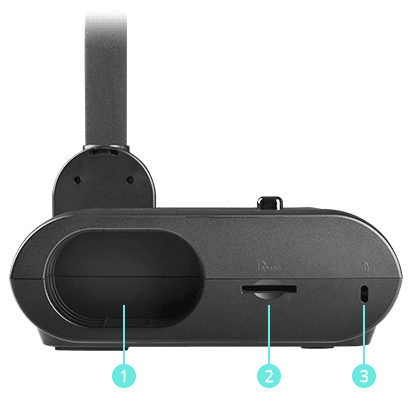

Product Appearance
- 1
- Camera Head
- 2
- Camera Head Holder
- 3
- SD Card Slot
- 4
- Kensington Slot
- 5
- DC 12V
- 6
- VGA In
- 7
- VGA Out
- 8
- USB Type-C for PC
- 9
- HDMI In
- 10
- HDMI Out
- 11
- USB Type-A Port
- 12
- MIC In
- 13
- Audio Out
Standard Accessories
-
Remote Control
Optional Accessories
-
Microscope adapter
-
Anti-glare sheet
-
Carrying bag
Specifications
Image sensor
| Image sensor | 1/3.06" CMOS color image sensor |
|---|---|
| Output resolution | HDMI: 4K at 60 / 30Hz, Full HD 1080p at 60Hz, HD 720p at 60Hz VGA: Full HD 1080p at 60Hz, HD 720p at 60Hz |
| Zoom | 23X Digital Zoom |
| Total pixels | 13M |
| TV lines | 1,500 (max.) |
| Frame rate | 60fps (max.) |
| Focus | Auto / Manual |
| Shooting area | Larger than A3 landscape |
| Image rotation | 0° / 180° |
| Internal storage | 200 to 240 pictures at XGA (1024 x 768)(Depends on content of images) |
| External storage | SDHC Card & USB Thumb Drive (Up to FAT32 / 32 GB) |
| One-touch recording | Yes |
| One-touch capturing | Yes |
| Image effects | Color / B&W / Negative |
| Image adjustments (white balance / exposure) | Auto / Manual |
| Display modes | Normal / Motion / High Quality |
| Capture modes | Single / Continuous |
| User profiles | Yes, up to 3 |
| Timer | Yes |
| Flicker filter control | Yes |
| ePTZ | Yes |
| Light source | Embedded LED lamp |
| HDMI I/O | 1 in; 1 out |
| VGA I/O | 1 in; 1 out |
| USB 2.0 ports | Type-A x 1 (USB Thumb Drive) Type-C x 1 (PC) |
| Audio | Line out (3.5 mm), Mic in (3.5 mm), Built-in Mic |
| Security | Kensington Slot |
| Dimensions | (W x D x H) Operating: 200 x 380 x 525 mm Folded: 230 x 305 x 73 mm |
| Net weight | 2.5 kg (5.51 lbs) |
| Power source | DC 12V / 2A AC 100 to 240V, 50 / 60Hz |
| Power consumption | 10 Watts (Lamp on); 9 Watts (Lamp off) |
| Warranty | Visualizer: 5 Years; Accessories: 1 Year |
| Software | AVerTouch, Sphere Lite |
| Windos®OS | Windows® 7, 10, 11 |
| Mac®OS | macOS® X 10.15, 11, 12 |
| Chrome™ OS | Chrome™ OS 88 or later (Available via the Sphere Lite App only) |
| Optional accessories | Microscope Adaptor, Anti-Glare Sheet, Carrying Bag |
| Package contents | AVerVision F17+, USB Type-A to Type-C Cable, VGA Cable, Power Adapter, Remote Control, Quick Start Guide |
