Visualizers

AVer MT100S

Matrix Tracking Box

Smart Switch. Activated by Voice.

14.2 WPower Consumption
150.0 x 210.0 x 43.0 mmDimensions (W x D x H)
0.83 (± 0.1) kgNet Weight

Product views

Overview

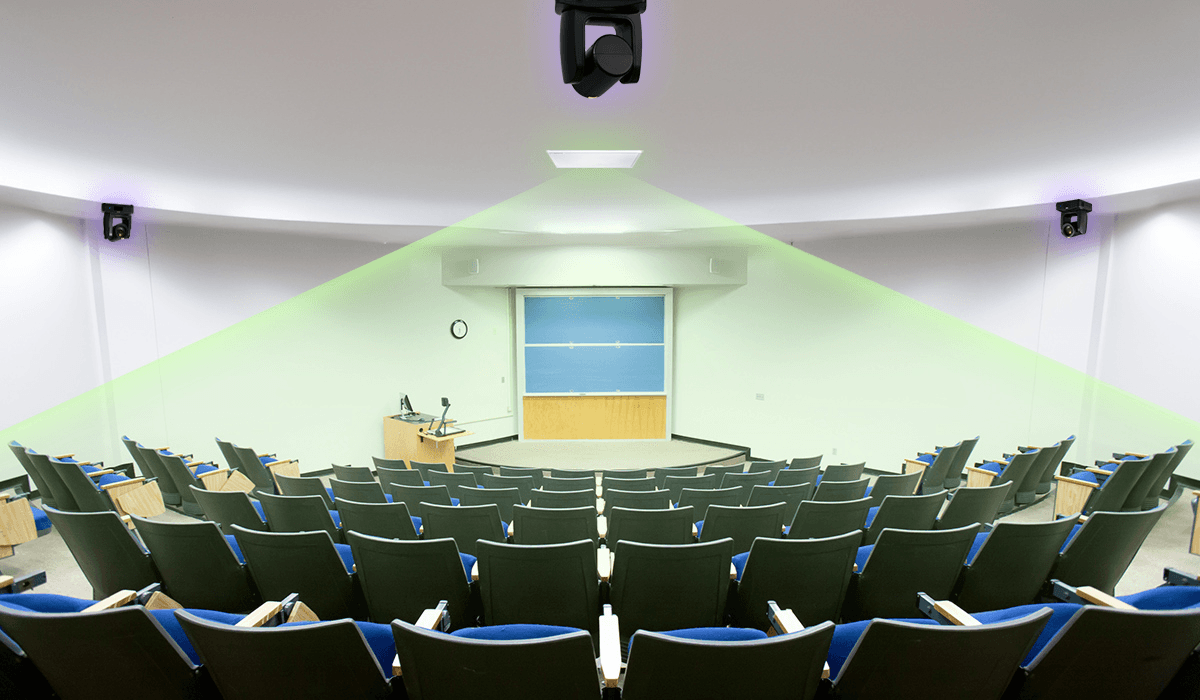

The AVer MT100S Matrix Tracking Box is a voice-tracking-enabled matrix switching solution that transforms hybrid classrooms, boardrooms, and HyFlex spaces with effortless speaker-focused presentations. Enjoy hands-free presentations as AI-driven voice tracking ensures cameras capture every active speaker instantly. This intelligent camera switching allows instructors to focus on engagement rather than technology. Supporting up to four live feeds, the MT100S provides dynamic layouts for viewing equity, making every student feel present regardless of location. Its compact design, intuitive web interface, and quick setup make integration simple and hassle-free, bringing reliable, efficient voice-enhanced AV from AVer.

* Available in select regions.

Smart Device Control. Built for Hybrid Workflows.

Experience superior hybrid meetings and teaching with the MT100S’s four live video feeds and flexible AV switching. An excellent showcase of today’s hybrid classroom AV solutions and advanced conference room technology for education and business.

Education and Business Friendly. Future Ready.

A cost-effective multimedia management system, the MT100S powers hybrid learning solutions and corporate AV integration. Built with scalable technology to keep your future-ready multimedia systems in play.

Custom Profiles. Instant Configuration Access.

Easily manage cameras and create custom display layout profiles with the MT100S’s web-based interface. Remote AV management precisely designed for efficient classroom AV systems and professional presentation technology.

Plug In. Stream Everything, Anywhere.

The MT100S offers the flexibility to bring your own device (BYOD) or integrate your existing devices seamlessly. With AVer camera support and multiple connections, it’s built for today’s networked workflows — stream and record effortlessly, no extra clutter.

Streamlined Setup. Optimized Space.

With its compact design and versatile connectivity, the MT100S streamlines AV deployment solutions for flexible installation. Less wiring means effortless multimedia integration and efficient presentation solutions for standard-sized classrooms and meeting rooms.

Multi-Camera Switching + Voice Tracking. Automated.

The MT100S intelligently connects AVer cameras with third-party microphone systems, enabling dynamic camera switching that follows the conversation. It ensures smooth speaker transitions, delivering professional-grade performance for enhanced hybrid collaboration.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Product Appearance

1: Power Button
2: Reset Button
3: LED Indicators
4: HDMI^® Output
5: USB Output

Specifications

Matrix Tracking Box

Power Requirement	AC 100 - 240V to DC 12V/1.5A
Power Consumption	14.2 W
Dimensions (W x D x H)	150.0 x 210.0 x 43.0 mm
Net Weight	0.83 (± 0.1) kg
LED Indicator: STATUS	Orange: power on Green: operating Green (flashing): firmware upgrading
LED Indicator: USB	Green: connected and standby Green (flashing): UVC/UAC streaming
LED Indicator: LAN	Green: connected
Resolution	Inputs: up to 1080p 60 fps Outputs: up to 4K 60 fps
Storage Conditions	Temperature: -20°C to +60°C Humidity: 20% to 95%
Operating Conditions	Temperature: 0°C to +50°C Humidity: 20% to 80%
Inputs	HDMI® x 1 USB 2.0 Type-A x 2 RJ-45 x 1 PoE+ x 1
Outputs	HDMI® x 1 USB 3.0 Type-B x 1 RJ-45 x 1
PoE+	Yes, 42.5V to 57V 0.6A
NDI®HX2 Video Output	Yes
NDI®HX3 Camera Input	Yes
Security	Kensington lock
Buttons	Power, Reset
Mounting Bracket	Yes, optional accessories
Certification	CE, FCC, IC, VCCI, PSTI, CB
Warranty	5 years

Software Tools

Enterprise Management	Supports Windows® 10 or later
Cloud Management	Supports Chrome™ & Microsoft Edge browsers
Room Management	Supports Windows® 7 or later, macOS® 11.6 or later
MT Control Panel	Yes

Package Contents & Optional Accessories

Package Contents	MT100S, Power Adapter, Power Cable, USB 3.0 Cable, Quick Start Guide
Optional Accessories	Cable Tie (x6) Cable Fixing Plate Installation Kit: Cable Fixing Plate (x2), 3.0 x 5 mm Flat Head Screw (x5) Rack Mount Installation Kit: Mount Bracket (x2), 3.0 x 5 mm Truss Head Screw (x4), M3 x 10 mm Screw (x4) Server Rack Installation Kit*: Server Rack, 3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2) CP10 G2 Collaboration Touch Panel

Voice Tracking Support

Supported Microphone Systems	Audio-Technica ATND1061DAN/ATND1061LK Beamforming Ceiling Array Microphone Audio-Technica ATUC-50/ATUC-IR Digital Discussion Systems

** Installing the server rack requires the rack mount installation kit.

† NDI® is a registered trademark of Vizrt NDI AB.

‡ All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
