Pro AV

UE1

USB Extender

Expand Your Horizons: USB 3.0 Extension for PTZ Cameras

USB 3.0USB Audio Class (UAC) Protocol
USB 3.0USB Video Class (UVC) Protocol
Up to 5 GbpsTransmission Rate

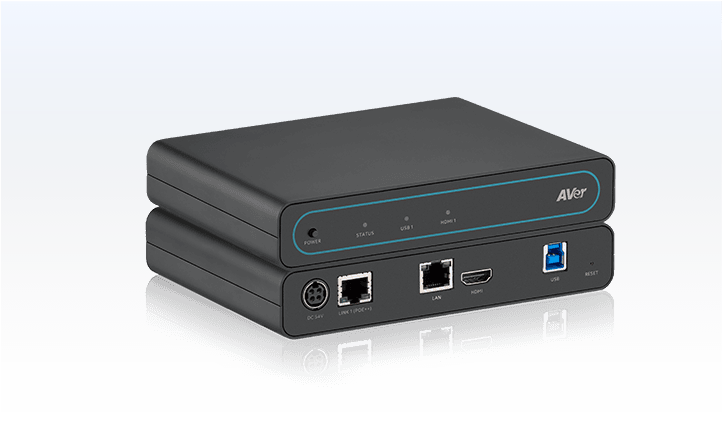

Product views

Overview

The AVer UE1 extends the reach of your PTZ cameras, overcoming traditional distance limitations with a seamless USB 3.0 extension solution. This unobtrusive extender kit transmits flawless USB 3.0 signals over long distances, leveraging your existing cabling. Perfect for environments with high-bandwidth connectivity, the UE1 lets you mount your PTZ cameras farther away while maintaining exceptional video quality.

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Flexible Deployment

Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.

Compact Design

Takes up minimal space and integrates seamlessly into any environment.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

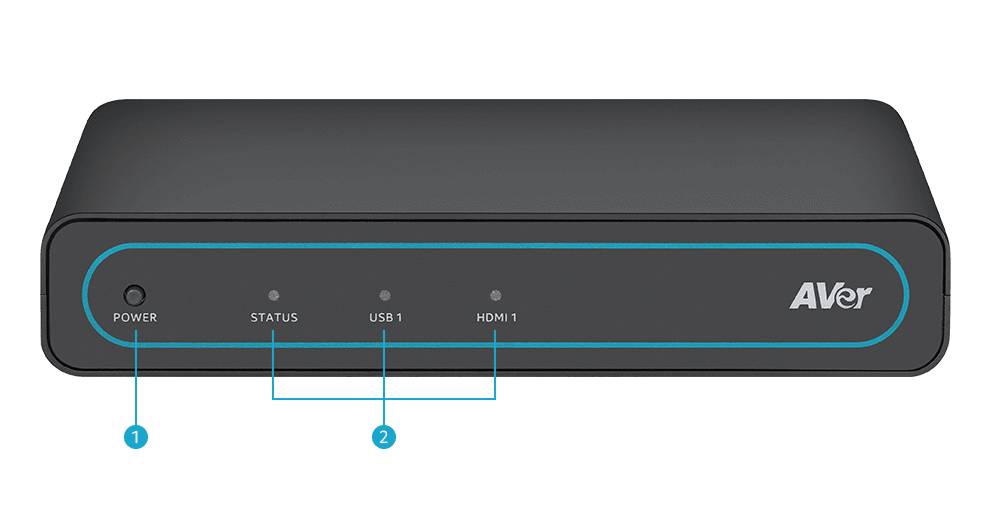

Hardware Specifications

1: Power Button
2: LED Indicators

Specifications

USB Audio Class (UAC) Protocol

USB Audio Class (UAC) Protocol	USB 3.0
USB Video Class (UVC) Protocol	USB 3.0
Output Resolution	USB: Up to 4K 60fps HDMI: Up to 4K 60fps (Available in 2024Q4)
Transmission Rate	Up to 5 Gbps
Network Bandwidth	1 Gbps
Transmission Distance	100m (328ft.) over CAT5e/6/7 cable

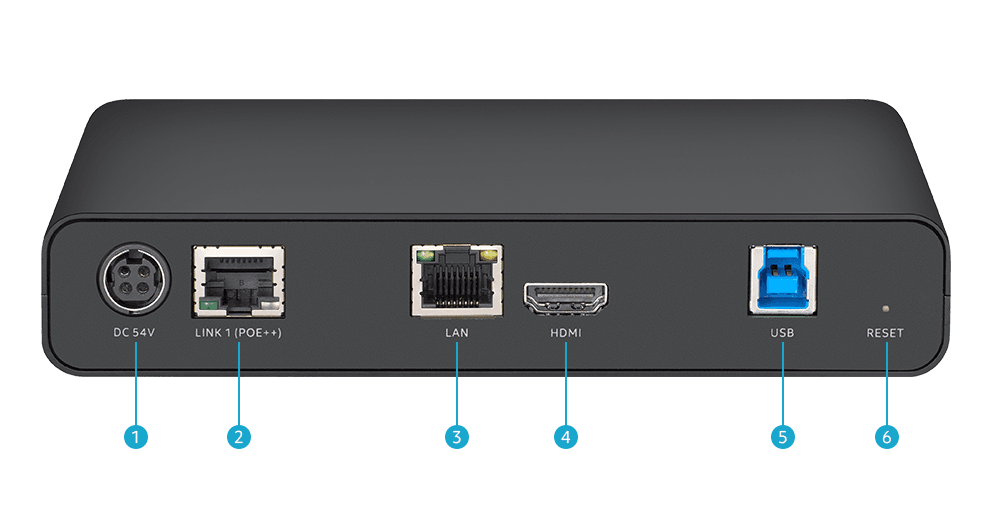

Connections

Output	USB 3.0 Type-B x 1 RJ-45 x 1 HDMI x 1
Input	RJ-45 x 1

LED Indicators

LED Indicators	Yes, status and connections LED
DC Input	AC 100 - 240V to DC 54V/1.2A; PoE input not supported
Power Consumption	65W
PoE++ Power Output	1 (IEEE 802.3bt), PSE only
Dimensions (W x H x D)	164.0 x 32.5 x 118.0 mm
Net Weight	0.62 kg
Operating Conditions	Temperature: 0 °C to +40 °C Humidity: 20% to 80%
Storage Conditions	Temperature: -20 °C to +60 °C Humidity: 20% to 95%
Warranty	5 Years
Package Content	UE1, Power Adapter & Power Cord, USB 3.0 Type-A to B Cable, DIN Rail Mounting Clip, Cable Fixing Plate, Cable Tie (x3), M3 x 5.1 mm Screw (x4), Quick Start Guide
