AVer NC30

NDI® Converter

Switch Modes. Scale Anywhere.

  • 3.5 mm × 1Audio In
  • 3.5 mm × 1Audio Out
  • 1USB-C
Request a quoteWhatsAppContact

Overview

The AVer NC30 NDI® Converter is a bi-directional NDI converter built for Pro AV environments, supporting NDI HX2 and HX3 for efficient, low-latency 4K video over standard networks. Switch between NDI encoding and decoding modes to bridge HDMI® sources and IP video streams — with 4K60P output to HDMI and USB-C in decoding mode. Centralized control via Enterprise Management makes multi-space NDI deployments faster to set up and easier to maintain across campuses, enterprises, and production spaces.

Simultaneous 4K 60P HDMI & USB-C Output.

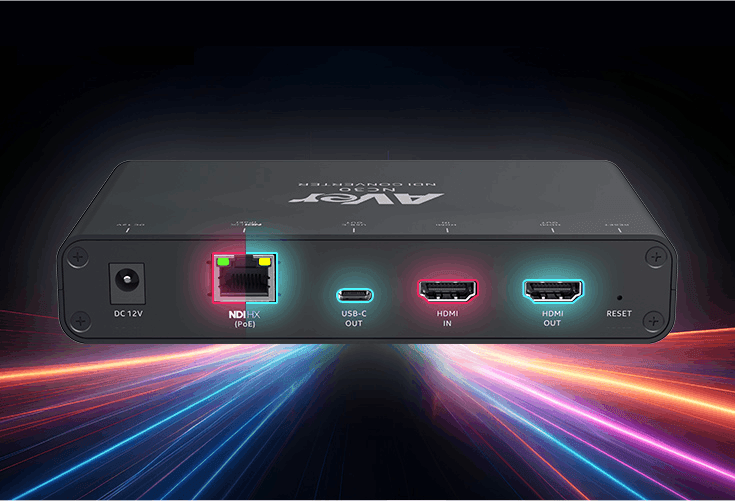

In decoding mode, the NC30 streams 4K 60fps* video to a display via HDMI while simultaneously delivering video to a laptop over USB-C. Keep both connections live without adapters or extra setups — an ideal solution for ensuring presentation equity in hybrid classrooms, meeting rooms, and live production.

Livestream nc30
nc30

Decode

Encode

nc30

Decode

Encode

Dual Modes. Total Flexibility.

Easily switch between encoding and decoding modes to adapt to your workflow. Whether converting HDMI sources into an NDI network or outputting IP streams to local displays, the NC30 handles it all effortlessly.

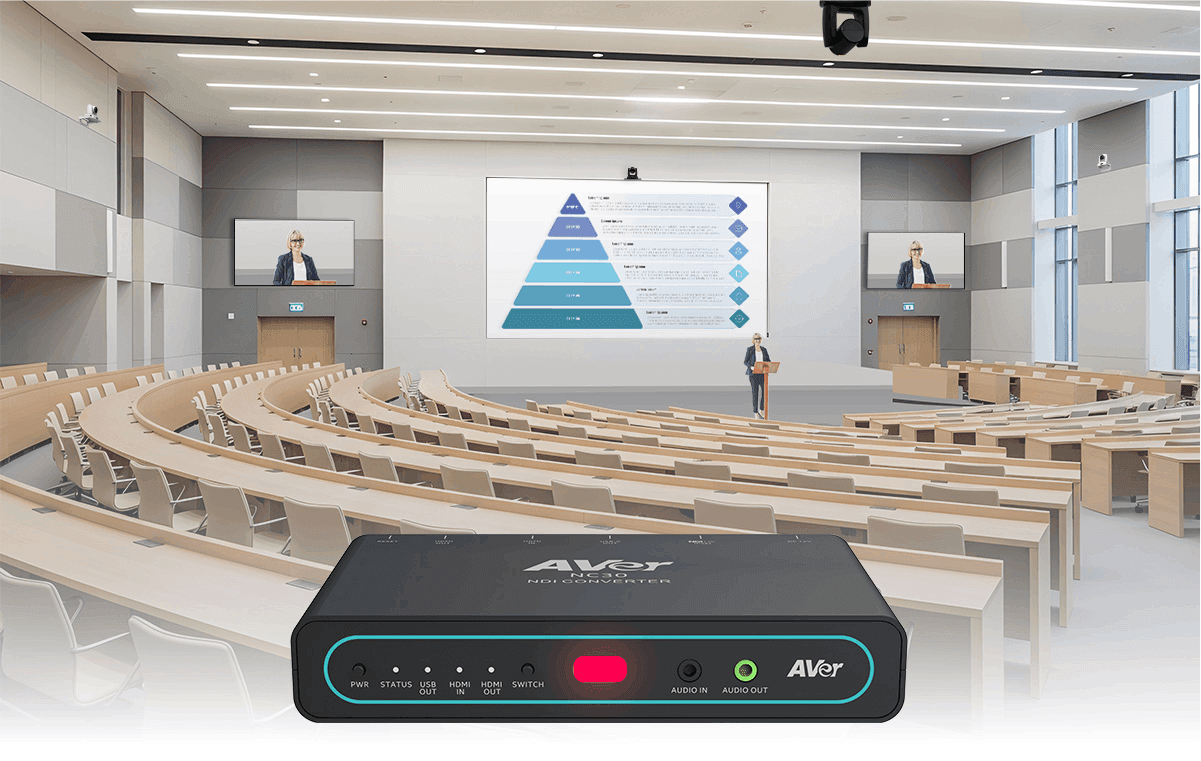

Built for the AVer Pro AV Ecosystem.

The NC30 works natively with AVer cameras, Matrix Tracking Boxes, and BYOM Matrix Switchers, for cross-room distribution. Standardize your setup, cut integration complexity, and build scalable AV-over-IP architectures that expand from a single room to multiple classrooms, meeting rooms, training spaces, and live production environments.

nc30
nc30
nc30
nc30

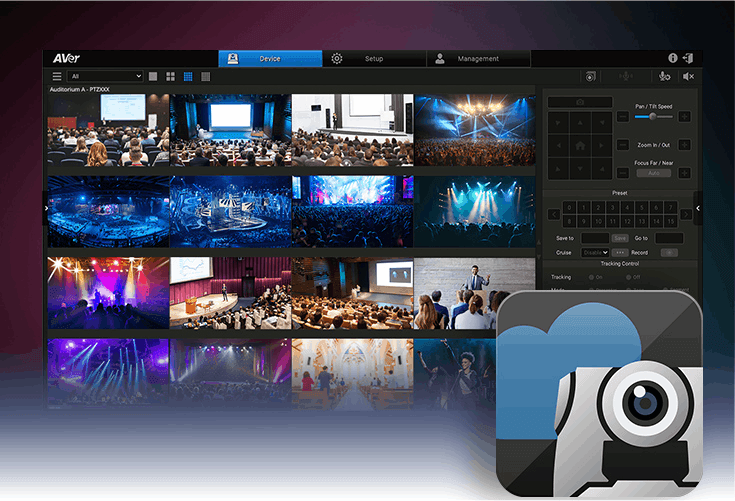

Centralized NDI Routing. Powered by Enterprise Management.

Manage your entire NDI network via Enterprise Management software. Assign signals and switch sources through an intuitive interface featuring multi-stream previews. It transforms complex IP routing into a faster, easier process.

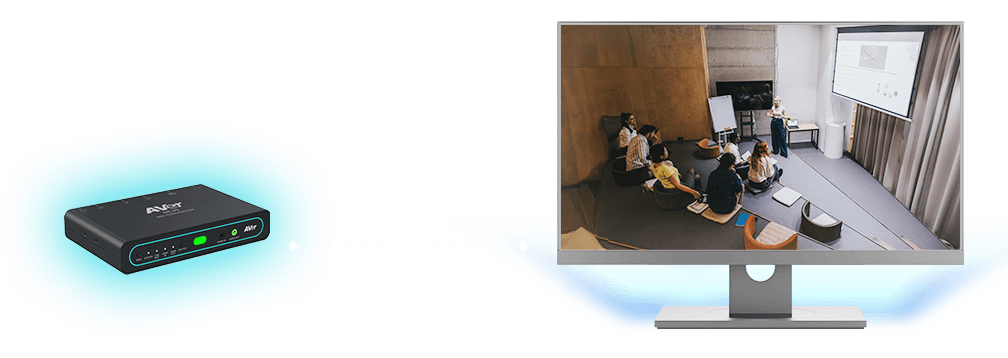

Zero-Latency Display. Streamlined Control.

In encoding mode, the HDMI Loop-out delivers instant, zero-latency live feeds for monitoring in professional live production. Network-based PTZ camera control and NDI low-latency streaming unify video transmission and device management into a single, cohesive workflow.

HDMI Instant Preview nc30

Product Appearance

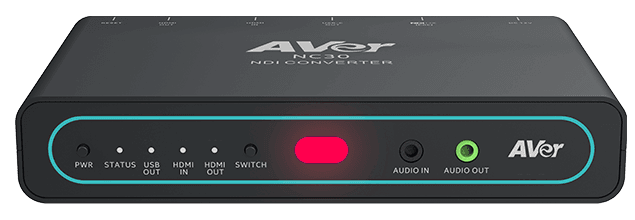

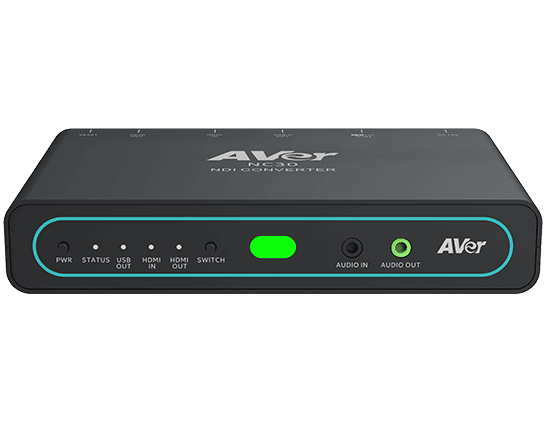

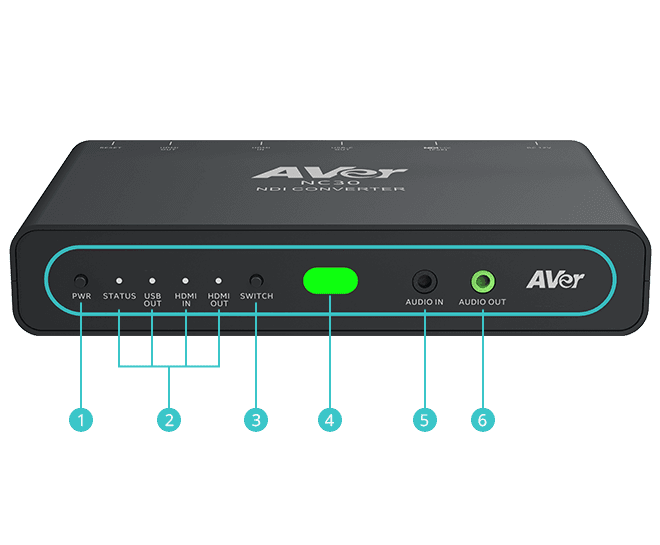

AVer NC30 Front Panel
1
Power Button
2
LED Indicators
3
NDI Source Switch Button
4
NDI Tally
5
3.5 mm Audio In
6
3.5 mm Audio Out

Package Content

  1. 3.0 x 5 mm Flat Head Screws
    3.0 x 5 mm Flat Head Screws
  2. 3.0 x 5 mm Truss Head Screws
    3.0 x 5 mm Truss Head Screws
  3. M3 x 10 mm Screws
    M3 x 10 mm Screws
  4. Rack Mount Brackets
    Rack Mount Brackets
  5. Cable Fixing Plate
    112AB31B-BFC
    Cable Fixing Plate
  6. Cable Tie
    210AAAAAAABW
    Cable Tie
  7. Quick Start Guide
    Quick Start Guide
  8. Power Adapter
    04131EGOQAS7
    Power Adapter
  9. Plug
    041399ECQAVB (EU AC Plug) 041399UGQAVE (UK AC Plug) 041399NHQAVF (AU AC Plug) 041399FAQAS9 (US AC Plug)
    Plug

Optional Accessories

  1. USB 3.0 Type-C to Type-C Cable
    USB 3.0 Type-C to Type-C Cable

Specifications

Operation Mode
Encoding ModeVideo Input & Resolution Via HDMI® 2.0 4K 60fps: 1 Input
Video Output NDI HX2 via IP
NDI Protocol NDI HX2
Codecs H.264 H.265
Audio In HDMI 3.5 mm
Audio Out HDMI 3.5 mm NDI RTSP
Web UI Yes
PoE Yes
Camera PTZ Control No
HDMI Loop-out Yes, Direct Pass-through
NDI Source Routing Yes
Decoding Mode (Default)Video Input NDI® HX2, NDI HX3 via IP 4K 60fps: 1 Input 1080p 60fps: Up to 4 Inputs
Video Output & Resolution Up to 4K 60fps via HDMI 2.0 & USB-C (UVC) Supports simultaneous HDMI & USB-C output**
NDI Protocol NDI HX2 NDI HX3
Codecs H.264 H.265
Audio In NDI 3.5 mm
Audio Out HDMI 3.5 mm USB-C (UVC)
Web UI Yes
PoE Yes
Camera PTZ Control Yes
HDMI Loop-out N/A
NDI Source Routing Yes
I/O Interfaces
Audio In3.5 mm × 1
Audio Out3.5 mm × 1
USB-C1
HDMI In1
HDMI Out1
PoE1 (IEEE 802.3af, 37V to 57V 0.35A)
Web UI
Live Video PreviewYes
Camera PTZ ControlPan
Tilt
Zoom
Focus
Preset Control
Encoding/Decoding Mode SwitchingYes, Reboot Required
NDI Source SelectionYes
Encoding SettingsCodec
Resolution
Frame Rate
Network ConfigurationDHCP (Default)
Static IP Configuration
Supported Web BrowsersChrome™
Microsoft Edge
Safari®
Software Tools
Enterprise ManagementSupports Windows® 10 or later
Device UtilitySupports Windows® 10 or later
macOS® 10.14 or later
General
DC InputAC 100 - 240V to DC 12V/2A
ButtonsPower
Source Switch
Dimensions (W × H × D)164.0 × 30.0 × 104.1 mm
Weight0.6 (±0.1) kg
LED IndicatorsStatus
USB Out
HDMI In
HDMI Out
NDI TallyYes
Solid Red: Program
Solid Green: Preview
Installation MethodsRack Mounted
Wall Mounted
Under the Table
Tripod
Operating ConditionsTemperature: 0 °C to +40 °C
Humidity: 20% to 80%
Storage ConditionsTemperature: –20 °C to +60 °C
Humidity: 20% to 95%
Warranty5 Years
Package ContentsNC30 NDI® Converter, Power Adapter, Power Cord, Cable Fixing Plate, Mount Bracket (× 2), 3.0 × 5 mm Flat Head Screw (× 2), 3.0 × 5 mm Truss Head Screw (× 4), M3 × 10 mm Screw (× 4), Cable Tie (× 3), Quick Start Guide
Optional AccessoriesUSB Type-C to Type-C Cable

** HDMI and UVC outputs are limited to 30fps under H.265 4K 60fps NDI decode with UVC enabled.

NDI® is a registered trademark of Vizrt NDI AB.

All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
