Pro AV
MT300
Matrix Tracking Box
Matrix Your Multimedia World
- 18WPower consumption
- 15.0 x 21.0 x 4.3 cmDimensions (W x D x H)
- 0.9 (± 0.1) kgNet weight
Product views
Overview

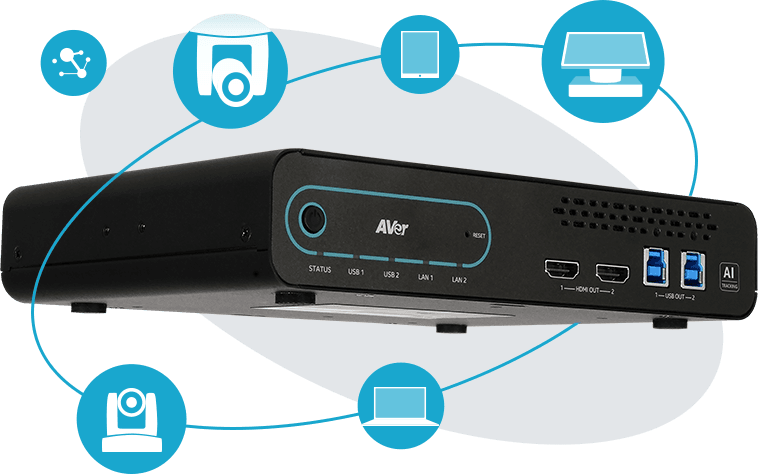

Take your audio-visual experience to the next level with the MT300 Matrix Tracking Box. AVer’s state-of-the-art multimedia device makes it easy to manage and control multiple sources through one unified platform. From meetings and training sessions to classrooms, the MT300 is perfect for any size requirement. With the MT300, you can easily mix-and-match video, audio and computer devices for the ultimate multimedia experience. The future of A/V management is here.
* Microsoft Teams certification applies to MT300(N) when paired with TR315, TR211, PTZ310UV2, or PTZ211.

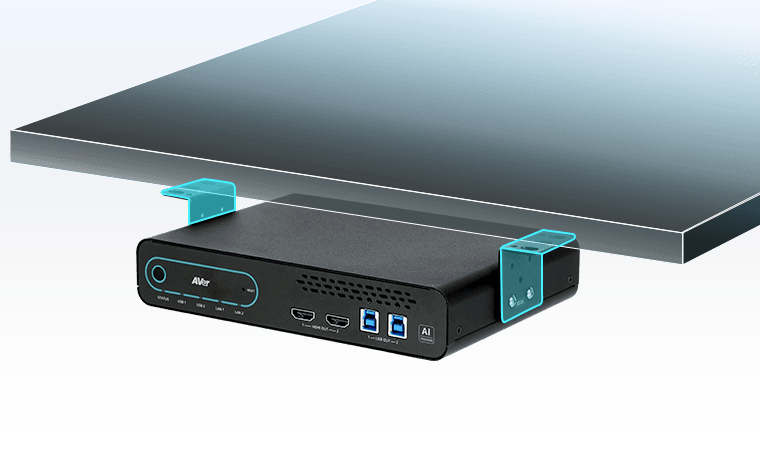

Compact. Just Right.
The MT300's sleek and modern appearance is complemented by its compact design, making transportation and storage effortless. Additionally, its ingeniously engineered compact design allows for flexible installation options.
Device Management. Streamlined.
Enhance your streaming performance by viewing up to 4 live videos. With MT300’s wide range of video inputs and outputs, you are free from the hassle of constantly plugging and unplugging devices.

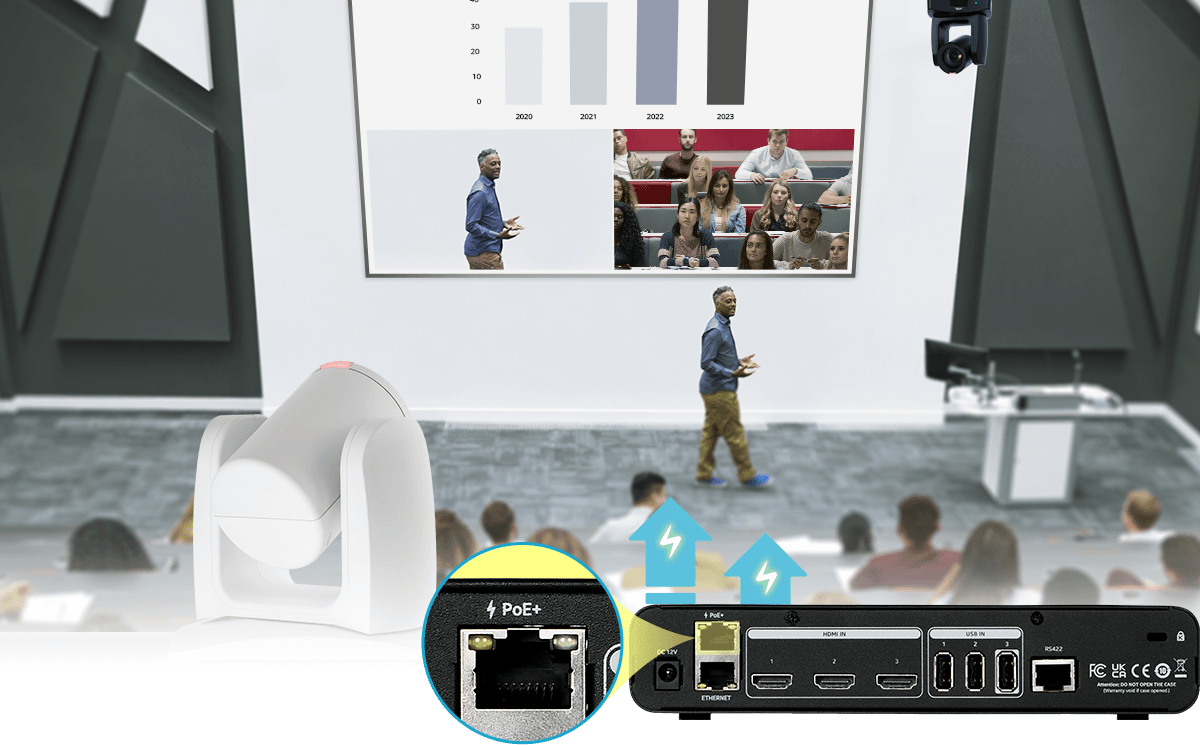

Seamless Deployment. Versatile Settings.
The MT300 has been designed to suit any use case with its all-in-one camera control and video switching capabilities. Additionally, its PoE+ function allows you to get started shooting in no time without any additional power supply.
Existing Devices. Integrated.
The MT300 offers the flexibility to either bring your own device (BYOD) or integrate it with your existing devices, while leveraging its multimedia capabilities to take your presentation experience to the next level.

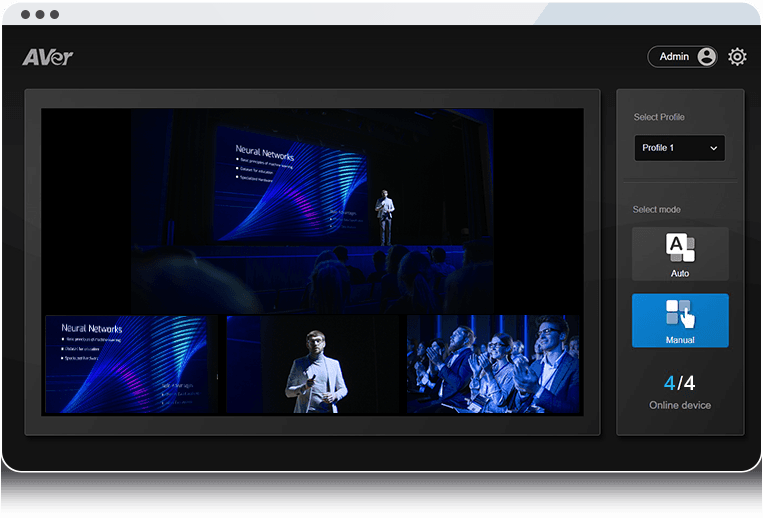

Web UI. Remote Management.
The simple web-based interface enables convenient remote access and management of cameras. Additionally, users can effortlessly create personalized profiles including display layouts to access their preferred settings promptly and efficiently.

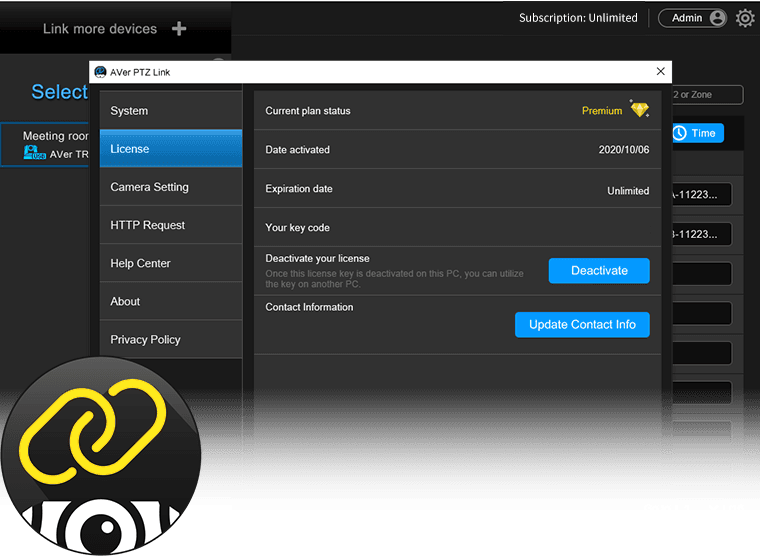

PTZ Link Premium. Embedded.
It takes one step to convert AVer’s PTZ camera into a voice-tracking camera with PTZ Link Premium. Built-in PTZ Link Premium functionality, you can create more device groups and mic channels, and automatic video switch combining with human detection auto tracking, making it ideal for presentation needs in hybrid environments.
PTZ Link Supported MicrophonesMulti-Camera Switching + Voice Tracking. Automated.
The MT300 intelligently connects AVer cameras with leading microphone systems, enabling dynamic camera switching that follows the conversation. It ensures smooth speaker transitions, delivering professional-grade performance for enhanced hybrid collaboration.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

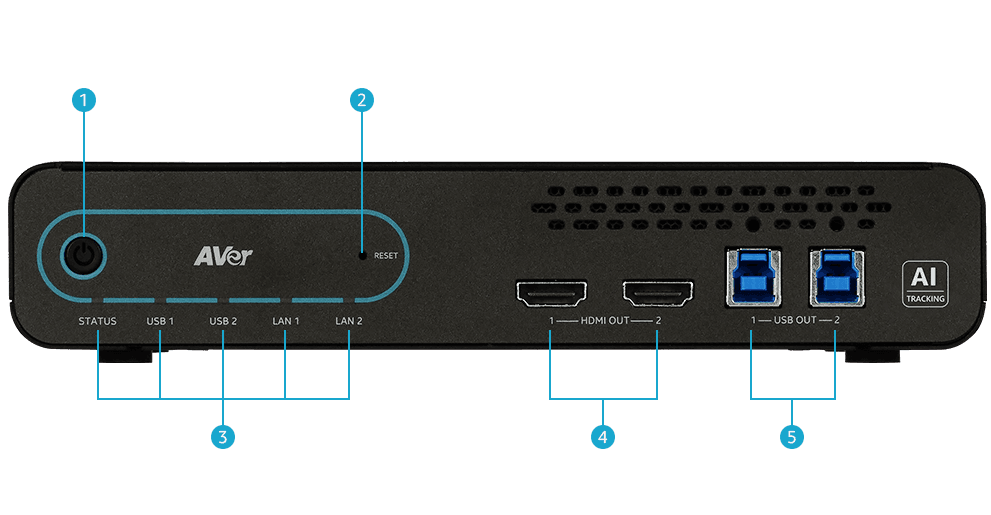

Product Appearance
- 1
- Power Button
- 2
- Reset Button
- 3
- LED Indicators
- 4
- HDMI Outputs
- 5
- USB Outputs
- 6
- DC 12V
- 7
- PoE+
- 8
- RJ45
- 9
- HDMI Inputs
- 10
- USB Inputs
- 11
- RS-422
- 12
- Kensington Slot
Standard Accessories
-
Power Adapter
-
Power Cable
-
Cable Fixing Plates
-
Cable Ties
-
3.0 x 5 mm Flat Head Screws
-
3.0 x 5 mm Truss Head Screws
-
M3 x 10 mm Screws
-
Rack Mount Brackets
-
USB 3.0 Cables
-
RS-422 Cable
-
Quick Start Guide
Optional Accessories
-
Server Rack Mount
Specifications
Matrix Tracking Box
| Power requirement | AC 100 - 240V to DC 12V/1.5A |
|---|---|
| Power consumption | 18W |
| Dimensions (W x D x H) | 15.0 x 21.0 x 4.3 cm |
| Net weight | 0.9 (± 0.1) kg |
| LED indicator: STATUS | Orange: power on Green: operating Green (flashing): firmware upgrading |
| LED indicator: USB | Green: connected and standby Green (flashing): UVC/UAC streaming |
| LED indicator: LAN | Green: connected |
| Resolution | Inputs: up to 1080p 60 fps Outputs: up to 4K 60 fps |
| Storage conditions | Temperature: -20°C to +60°C Humidity: 20% to 95% |
| Operating conditions | Temperature: 0°C to +50°C Humidity: 20% to 80% |
| Inputs | HDMI x 3 USB 2.0 Type-A x 3 RS-422 x 1 RJ-45 x 1 PoE+ x 1 |
| Outputs | HDMI x 2 USB 3.0 Type-B x 2 RJ-45 x 1 |
| Communication protocol | RS-422 |
| PoE+ | YES, 42.5V to 57V 0.6A |
| NDI® HX2 camera output | Yes |
| NDI® HX3 camera input | Yes |
| Security | Kensington lock |
| Buttons | Power, Reset |
| Mounting bracket | Yes |
| Certification | CE, FCC, IC, VCCI, UKCA, KC, BIS, CB, PSTI |
| Warranty | 5 years |
Software Tools
| Enterprise Management (PTZ Management) | Supports Windows® 10 or later |
|---|---|
| Cloud Management | Supports Windows® 7 or later, macOS® 10 or later |
Package Contents & Optional Accessories
| Package Contents | MT300, Power Adapter, Power Cable, Cable Fixing Plate (x2), Cable Tie (x13), 3.0 x 5 mm Flat Head Screw (x5), 3.0 x 5 mm Truss Head Screw (x4), M3 x 10 mm Screw (x4), Rack Mount Bracket (x2), USB 3.0 Cable (x2), RS-422 Cable, Quick Start Guide, Warranty Card* |
|---|---|
| Optional Accessories | Server Rack Mount, 3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2) |
** For Japan only.
*** For USB compatibility, please visit: aver.com.
[Important Note on Voice Tracking Installation] For optimal performance, consider the environment, materials, and distances. Assess room size, layout, and acoustics. Different surfaces affect sound reflection and absorption. Maintain proper distances between devices and the coverage area. For the best results, consult a local AVer tech expert to address specific needs and troubleshoot potential issues.
