Pro AV
AVer MT100
Matrix Box
Effortless Integration. Boundless AV Experiences.
- 14.2WPower Consumption
- 15.0 x 21.0 x 4.3 cmDimensions (W x D x H)
- 0.83 (± 0.1) kgNet Weight
Product views
Overview
Streamline your lecture capture, meetings, and hybrid presentations for seamless switching and quick setup. The AVer MT100 Matrix Box brings together all your video sources — cameras, visualizers, laptops, and other AV inputs — into one integrated platform for stunning multimedia experiences. Compact by design with an easy-to-use web interface and customizable display profiles, it fits perfectly in standard-sized boardrooms, classrooms, and HyFlex spaces.
Smart Device Control. Built for Hybrid Workflows.
Experience superior hybrid meetings and teaching with the MT100’s four live video feeds and flexible AV switching. An excellent showcase of today’s hybrid classroom AV solutions and advanced conference room technology for education and business.
Education and Business Friendly. Future Ready.
A cost-effective multimedia management system, the MT100 powers hybrid learning solutions and corporate AV integration. Built with scalable technology to keep your future-ready multimedia systems in play.
Custom Profiles. Instant Configuration Access.
Easily manage cameras and create custom display layout profiles with the MT100’s web-based interface. Remote AV management precisely designed for efficient classroom AV systems and professional presentation technology.
Plug In. Stream Everything, Anywhere.
The MT100 offers the flexibility to bring your own device (BYOD) or integrate your existing devices seamlessly. With AVer camera support and multiple connections, it’s built for today’s networked workflows — stream and record effortlessly, no extra clutter.
Streamlined Setup. Optimized Space.
With its compact design and versatile connectivity, the MT100 streamlines AV deployment solutions for flexible installation. Less wiring means effortless multimedia integration and efficient presentation solutions for standard-sized classrooms and meeting rooms.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

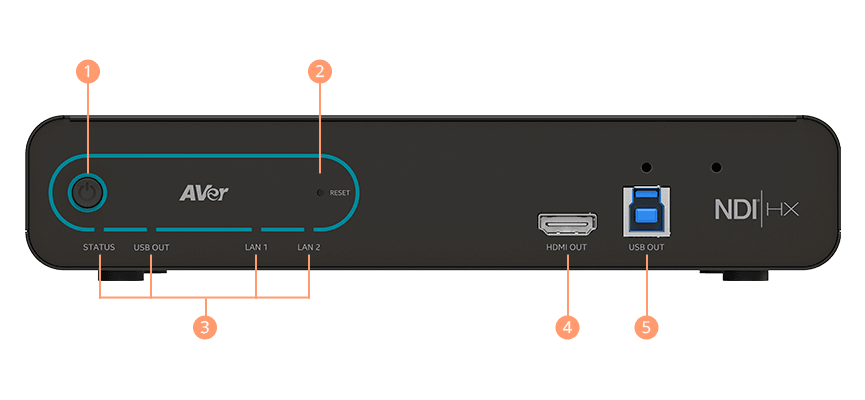

Product Appearance
- 1
- Power Button
- 2
- Reset Button
- 3
- LED Indicators
- 4
- HDMI Output
- 5
- USB Output
- 6
- DC 12V
- 7
- PoE+
- 8
- RJ-45
- 9
- HDMI Input
- 10
- USB Inputs
- 11
- Kensington Slot
Specifications
Matrix Box
| Power Requirement | AC 100 - 240V to DC 12V/1.5A |
|---|---|
| Power Consumption | 14.2W |
| Dimensions (W x D x H) | 15.0 x 21.0 x 4.3 cm |
| Net Weight | 0.83 (± 0.1) kg |
| LED Indicator: STATUS | Orange: power on Green: operating Green (flashing): firmware upgrading |
| LED Indicator: USB | Green: connected and standby Green (flashing): UVC/UAC streaming |
| LED Indicator: LAN | Green: connected |
| Resolution | Inputs: up to 1080p 60 fp Outputs: up to 4K 60 fps |
| Storage Conditions | Temperature: -20°C to +60°C Humidity: 20% to 95% |
| Operating Conditions | Temperature: 0°C to +50°C Humidity: 20% to 80% |
| Inputs | HDMI x 1 USB 2.0 Type-A x 2 RJ-45 x 1 PoE+ x 1 |
| Outputs | HDMI x 1 USB 3.0 Type-B x 1 RJ-45 x 1 |
| PoE+ | Yes, 42.5V to 57V 0.6A |
| NDI®HX2 Camera Output | Yes |
| NDI®HX3 Camera Input | Yes |
| Security | Kensington lock |
| Buttons | Power, Reset |
| Mounting Bracket | Yes, optional accessories |
| Certification | CE, FCC, IC, VCCI, PSTI, CB |
| Warranty | 5 years |
Software Tools
| Enterprise Management | Supports Windows® 10 or later |
|---|---|
| Cloud Management | Supports Windows® 7 or later, macOS® 10 or later |
| Room Management | Supports Windows® 7 or later, macOS® 11.6 or later |
| MT Control Panel | Yes |
Package Contents & Optional Accessories
| Package Contents | MT100, Power Adapter, Power Cable, USB 3.0 Cable, Quick Start Guide |
|---|---|
| Optional Accessories | Cable Tie (x6) Cable Fixing Plate Installation Kit: Cable Fixing Plate (x2), 3.0 x 5 mm Flat Head Screw (x5) Rack Mount Installation Kit: Mount Bracket (x2), 3.0 x 5 mm Truss Head Screw (x4), M3 x 10 mm Screw (x4) Server Rack Installation Kit*: Server Rack, 3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2) CP10 G2 Collaboration Touch Panel |
** Installing the server rack requires the rack mount installation kit.
† Specifications may vary depending on location and are subject to change without notice.

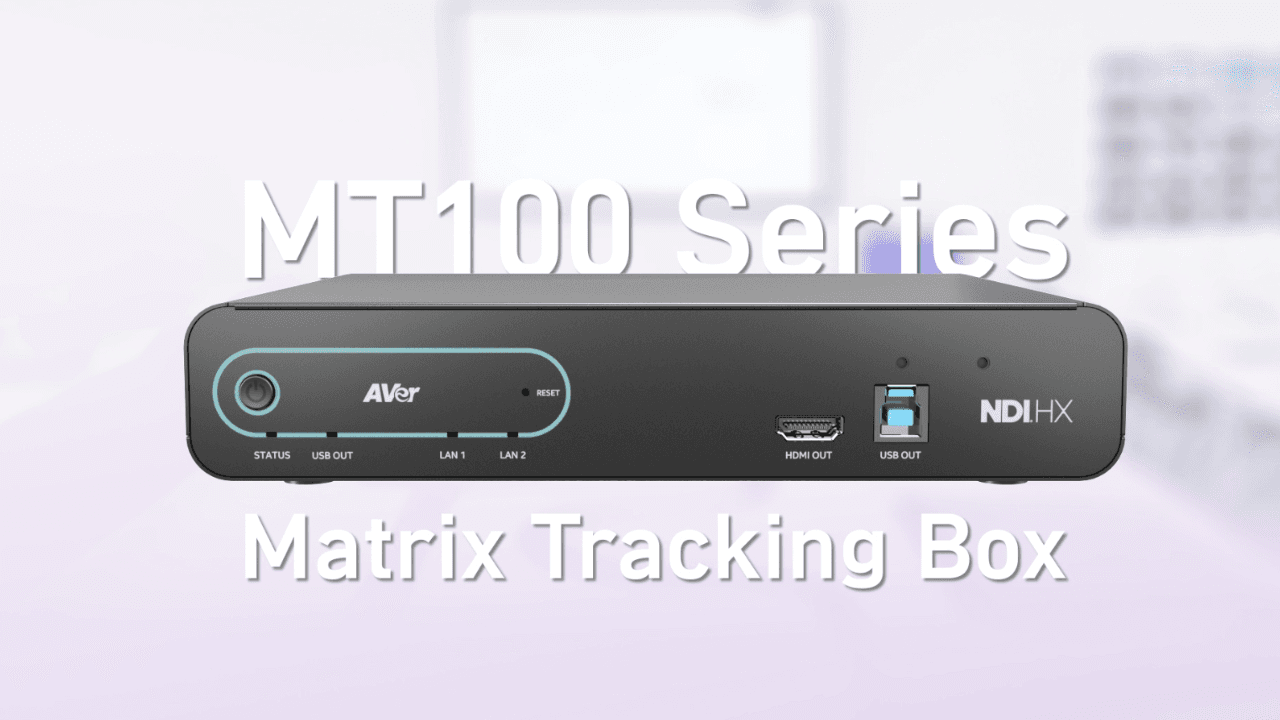

Videos
