TR322

Pro AV

TR322

Dual Lens Auto Tracking Camera

  • 1/2.8” Sony Exmor™ CMOSImage Sensor
  • 8.59 MegapixelsTotal Picture Elements
  • 8.45 MegapixelsEffective Picture Elements
Request a quoteWhatsAppContact

Overview

Every space has a story, and the AVer TR322 makes sure it's told brilliantly. Presenters are always perfectly framed — no operator, no interruption, no second-guessing. A dedicated wide-angle lens continuously covers the entire space, directing the primary PTZ lens to the active presenter. Sony Exmor™ imaging renders every expression, gesture, and detail with stunning clarity under any lighting condition. With Presenter, Zone, and Hybrid tracking, the TR322 transforms any venue into a self-directing broadcast environment — engineered for corporate, government, worship, sports, and education.

Dual Lenses. One Focus.

The TR322's dedicated wide-angle sensor continuously tracks the entire space, enabling the PTZ tracking lens to lock onto the subject with precision and reliability. Dual-lens AI supports seamless, uninterrupted subject tracking, keeping both remote and in-room audiences focused on the speaker.

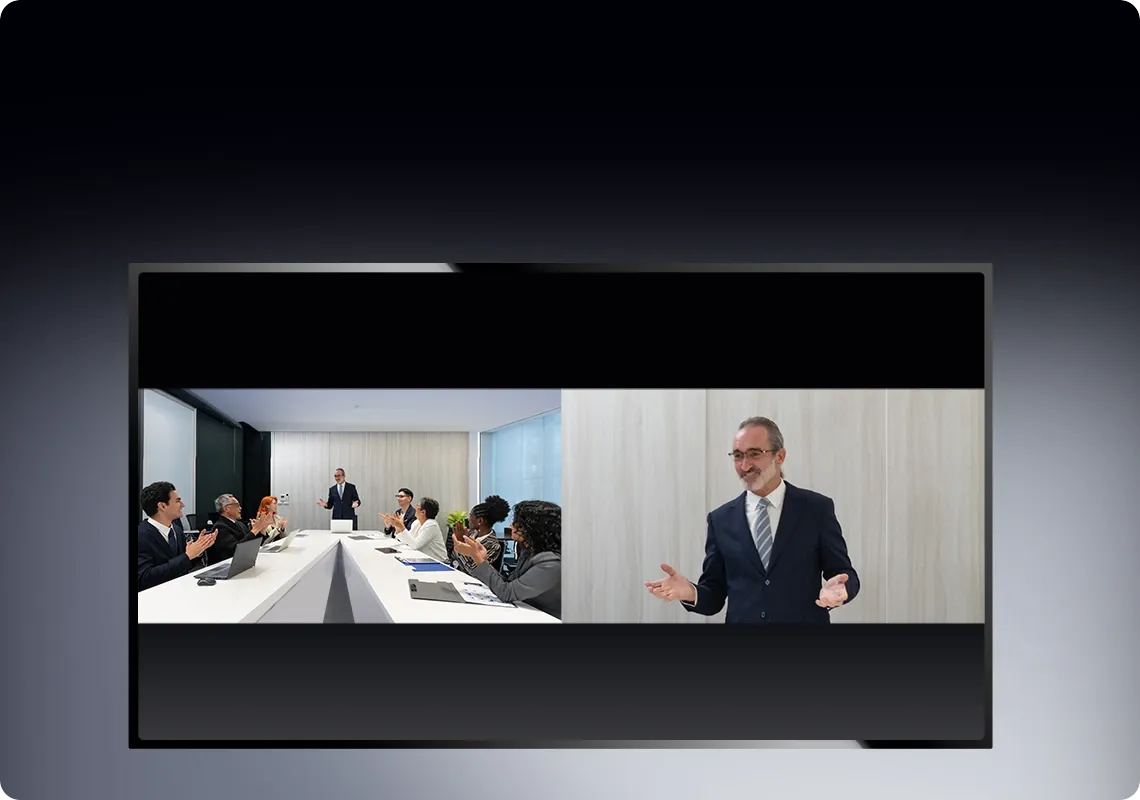

Picture by Picture (PbP)

Picture by Picture (PbP)

Display dual perspectives side by side for a clear, organized view. This mode records, streams, and outputs video from two lenses simultaneously.

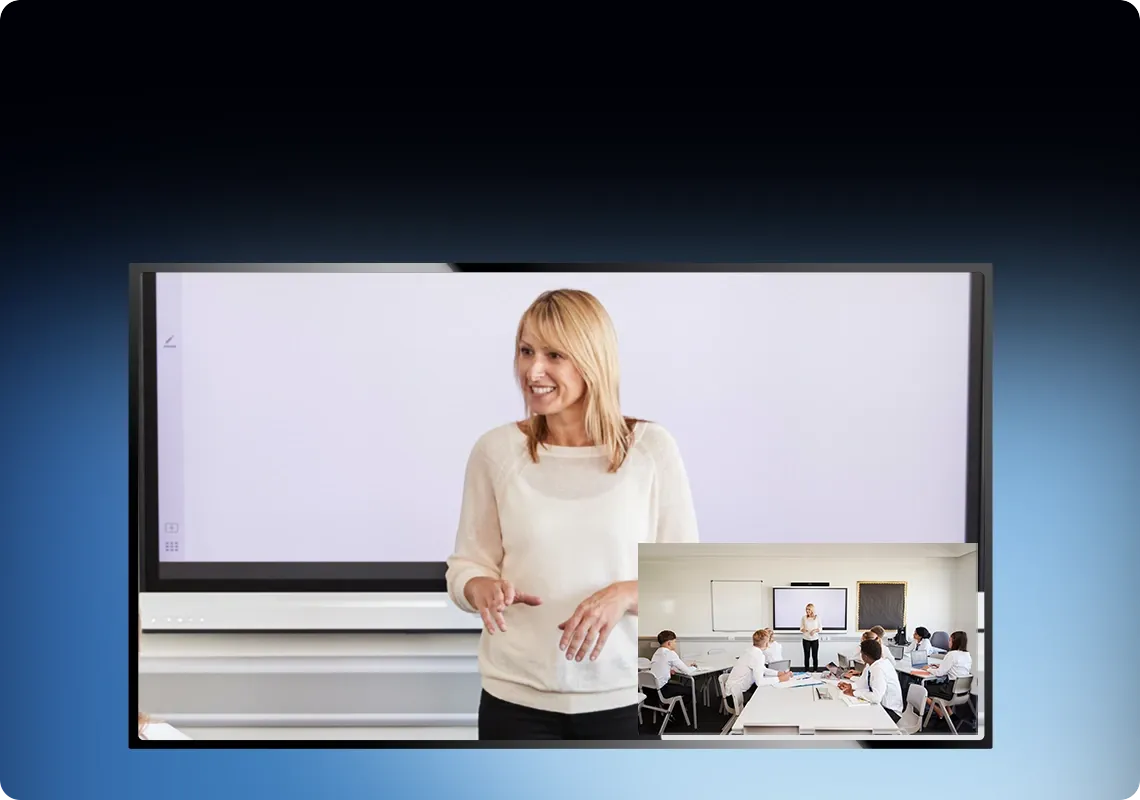

Picture in Picture (PiP)

Picture in Picture (PiP)

See close-up details and the entire environment at once. This mode displays the PTZ camera view as the main feed, with the wide-angle view in a resizable inset window.

Multi-Presenter Detection

Multi-Presenter Detection

Present discussions, demonstrations, and interactions with striking clarity. When two or more people appear within the defined area, the camera automatically switches to a preset view optimized for multiple presenters.

Multi Presenter Tracking

Multi Presenter Tracking

Deliver stable, seamless video of multiple subjects automatically. This function continuously tracks and frames through the PTZ camera, reducing the need for frequent manual camera adjustments.

tr322

Front-Row Detail. Wherever You Are.

22X true optical zoom and Sony Exmor™ high-sensitivity imaging pull in every participant through sharp, vivid focus regardless of room depth or seat position. Every facial expression, every gesture, every slide detail is rendered in pristine 1080p Full HD, making distance irrelevant to engagement.

Any Lighting. Balanced Imaging.

Backlit windows, high-contrast stages, dimly lit sanctuaries — the TR322 delivers clean images where other cameras struggle. Sony Exmor™ wide dynamic range balances every frame automatically, delivering broadcasting grade image quality that looks professionally lit, even in tough lighting conditions.

tr322

Your Automated Director. Always On.

Presenter, Zone, and Hybrid tracking modes transform the TR322 into a self-directing production crew. Walk in, start presenting, and let intelligent AI orchestrate every shot and angle — so your team stays focused on the message, not the mechanics of capturing it.

tr322
tr322
tr322

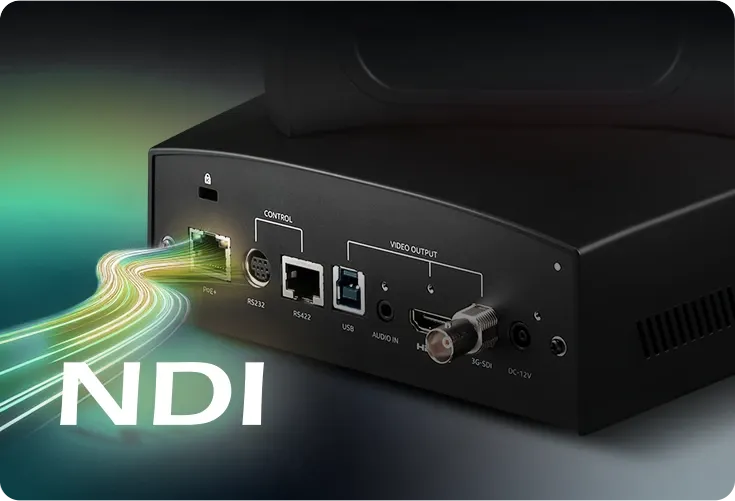

Plug In. Go Live.

NDI® HX3, HDMI®, USB, and IP streaming capabilities mean the TR322 instantly connects to virtually any production environment. No signal converters, no routing headaches, no AV operator required. From boardroom to broadcast, your content reaches the world the moment you're ready to share it.

tr322

One Camera. Infinite Applications.

Standardize on a single intelligent platform across every facility — boardrooms, lecture halls, courtrooms, sanctuaries, and arenas. The TR322's consistent AI tracking behavior, uniform control protocols, and enterprise grade reliability eliminate the complexity of managing mixed camera ecosystems at scale.

Control Everything. From Anywhere.

AV operators manage the TR322 from wherever the production demands — at the camera, from a central control room, from a remote IT desk, or from a touch panel at the lectern. Whatever your production demands, a control pathway exists to match it. Every integration point your team already relies on is solidly supported.

tr322

Hardware

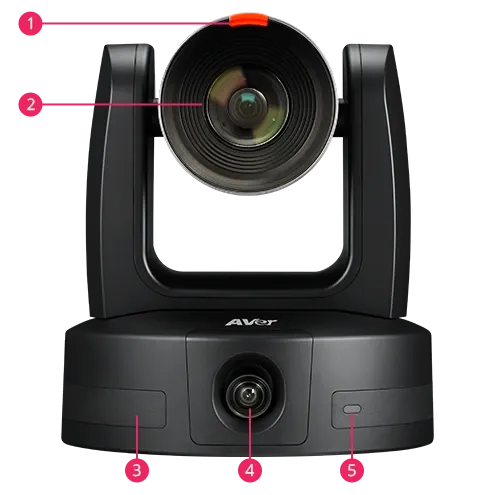

TR322 Front
1
Tally Lamp
2
PTZ Camera
3
IR Sensor
4
Wide Angle Camera
5
LED Indicator

Standard Accessories

  1. Power Adapter
    Power Adapter
  2. RS-232 DIN 8 to D-Sub 9 Cable
    RS-232 DIN 8 to D-Sub 9 Cable
  3. RS-232 In/Out Cable
    RS-232 In/Out Cable
  4. Cable Tie
    Cable Tie
  5. Remote Control
    Remote Control
  6. Cable Fixing Plate
    Cable Fixing Plate
  7. Ceiling Mount Bracket
    Ceiling Mount Bracket
  8. M2 x 4 mm Screws
    M2 x 4 mm Screws
  9. M3 x 6 mm Screws
    M3 x 6 mm Screws
  10. 1/4
    1/4""-20L 6.5mm Screw

Optional Accessories

  1. L-Type Wall Mount
    L-Type Wall Mount
  2. PTZ Camera Controller CL01
    60S3300000AB
    PTZ Camera Controller CL01

Specifications

Camera
Image Sensor1/2.8” Sony Exmor™ CMOS
Total Picture Elements8.59 Megapixels
Effective Picture Elements8.45 Megapixels
Output Resolutions4K/30**, 4K/29.97**, 4K/25**, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio≥ 50 dB
GainAuto, Manual
TV Line4K**: 1200 (Center)
1080p: 900 (Center)
Shutter Speed1/1 to 1/10,000 sec
Exposure ControlAuto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White BalanceAuto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom22X
Digital Zoom12X
Total Zoom264X
Viewing AnglesDFOV: 78.3° (Wide) to 3.27° (Tele)
HFOV: 70.4° (Wide) to 2.86° (Tele)
VFOV: 42.7° (Wide) to 1.61° (Tele)
Focal Lengthf = 4.3 mm (Wide) to 94.6 mm (Tele)
Aperture (Iris)F = 1.6 (Wide) to 4.2 (Tele)
Minimum Working Distance0.01 m (Wide), 1.2 m (Tele)
Pan / Tilt AnglesPan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual)Pan: 0.1° to 100° / sec, Tilt: 0.05° to 100° / sec
Preset SpeedPan: 200° / sec, Tilt : 200° / sec
Preset Positions10 (IR), 256 (RS-232 / RS-422 / IP)
Camera Control - InterfaceRS-232 (DIN8), RS-422 (RJ45), IP, USB
Camera Control - ProtocolsVISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF
Image ProcessingNoise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
Power Frequencies50 Hz, 60 Hz
Wide Angle Camera
Image Sensor1/2.8” CMOS
Effective Picture Elements2 Megapixels
Output Resolutions1080p/30
Focal Length2.22 mm
White BalanceATW
ExposureAuto
Viewing AnglesDFOV: 113
HFOV: 105°
VFOV: 71°
Pan / Tilt AnglesTilt: +10° / -10°
AI Technology
Auto Tracking ModesPresenter Mode, Zone Mode, Hybrid Mode
AI FeaturesMulti-Presenter Detection, Multi-Presenter Tracking
Privacy Protection Mechanisms
Protection ModeSleep Mode
Audio
Channel2ch Stereo
CodecAAC-LC (48 K)
Sample Rates48 KHz
Interface
Video Outputs3G-SDI, HDMI®, IP, USB
Audio Outputs3G-SDI, HDMI®, IP, USB
Audio InputsMic in, Line in
General
Power RequirementAC 100 - 240V to DC 12V/2A
Power Consumption19W
PoEPoE+ (IEEE802.3at)
Dimensions (W x H x D)180.9 x 204.6 x 182.1 mm
Net Weight2.1 (±0.1) kg
ApplicationIndoor
Tally LampYes
SecurityKensington Slot
Remote ControlInfrared
Operating ConditionsTemperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage ConditionsTemperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
ResolutionUp to 4K 30fps**
Network Video Compress FormatsH.264, H.265, MJPEG
Network Audio Compress FormatsAAC-LC (48 K)
Maximum Frame RateUp to 4K 30fps**
Bit-Rate Control ModesVBR, CBR (selectable)
Range of Bit-Rate Setting512 Kbps to 120 Mbps
Network Interface10 / 100 / 1000 Base-T
Multi-Stream CapabilityUp to 4K 30fps**
Standard Mode, Zoom Mode, NDI® Mode: 5 (RTSP, HDMI®, USB, 3G-SDI***, & NDI®)
Teams Mode: 1 (USB)
Network ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP, ONVIF
NDI® HX3Yes (Pre-installed)
NDI® Embedded BridgeYes
Dante® AV-HN/A
Camera Tracking Data OutputSupports Free-D Type D0 / D1
USB
ConnectorUSB 3.2 Gen 1 Type-B
Video FormatMJPEG, YUY2
Audio FormatPCM
Maximum Video ResolutionUp to 4K**
USB Video Class (UVC)UVC 1.1
USB Audio Class (UAC)UAC 1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan, Tilt, Zoom, Focus, Preset Control
Camera / Image AdjustmentExposure, White Balance, Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web BrowsersChrome™, Microsoft Edge, Safari®
Software Tools
Device UtilitySupports Windows® 10 or later, macOS® 11.6 or later
Enterprise ManagementSupports Windows® 10 or later
Room ManagementSupports Windows® 10 or later, macOS® 11.6 or later
Cloud ManagementSupports Chrome™ & Microsoft Edge browsers
Control PanelSupports iOS & iPadOS® 11 or later
OBS Plugin for PTZ CamerasSupports Windows® 10 or later, macOS® 11.6 or later
CaptureShareSupports Windows® 10 or later, macOS® 11.6 or later
Warranty
Camera5 Years
Accessories1 Year
Package Contents
Package ContentsCamera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x4), M2 x 4 mm Screw (x3), M3 x 6 mm Screw (x3), 1/4""-20L 6.5mm Screw (x2), Cable Fixing Plate, Ceiling Mount Bracket (x2), Drilling Paper, Quick Start Guide
Optional AccessoriesAVer CL01 PTZ Camera Controller, L-Type Wall Mount

** Up to 4K 30fps output upgrade available via license key from Q4 2026.

*** When choosing 3G-SDI output, only 1080p 60fps resolution is supported.

All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.

Audinate®, the Audinate logo and Dante® are registered trademarks of Audinate Pty Ltd.

NDI® is a registered trademark of Vizrt NDI AB.
