PTZ330UV2

Professional PTZ Camera

Stream Live. Stream Fascination.

  • 1/2.8” 4K Sony Exmor CMOSImage Sensor
  • 8 MegapixelsEffective Picture Elements
  • ≥ 50 dBS/N Ratio
Request a quoteWhatsAppContact

Overview

Amaze your audience with AVer's PTZ330UV2 — the high-end PTZ camera that gives you full control of your streaming content. With 4K 60 fps HDMI/USB/IP outputs, a 30X optical zoom lens, and SmartShoot functionality, this advanced streaming solution is unmatched. Take your streams to the top and make a lasting impression with the PTZ330UV2!

30X Optical Performance.
Harness the Power of Zoom

The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you'll never miss a moment of any occasion.

ptz330uv2

4K Ultra HD. A New Level of Clarity

With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

ptz330uv2
ptz330uv2

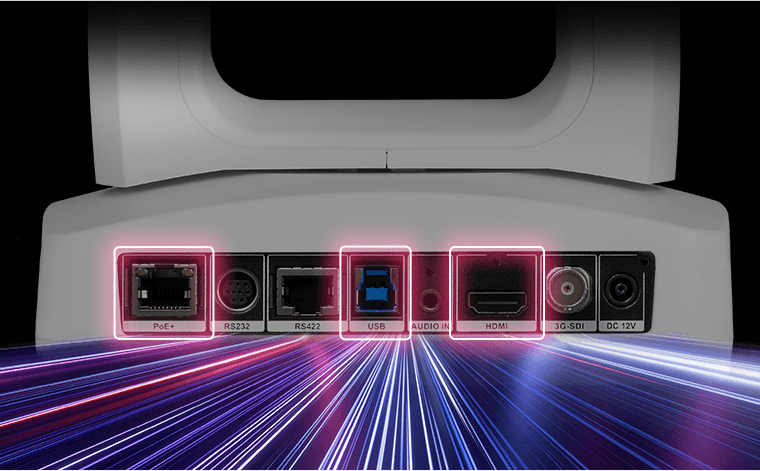

HDMI/USB/IP + 4K 60 fps. Smoother Streams

NDI® has praised the PTZ330UV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

0.1° to 200° Per Second Precision Pro Camera Control

Customizable movement speed settings, ranging from 0.1° to 200° per second, offer high-level agility and precision for ultimate motion control during streams. The resulting sensitive and smooth multi-angle movement lets you capture extraordinary footage that dazzles your audience.

ptz330uv2

SmartShoot.
Keep People and Content in Focus

With embedded SmartShoot, the PTZ330UV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

ptz330uv2

PTZ Link.
Bring Voice Tracking to PTZ Cameras

PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

PTZ Link Supported Microphones
ptz330uv2

Hardware Specifications

PTZ330UV2 Front
1
Tally Lamp
2
IR Sensor
3
LED Indicator

Standard Accessories

  1. Remote Control
    0412S510-ASR
    Remote Control
  2. 12V/5A Power Adapter
    04131HGOOAPF
    12V/5A Power Adapter
  3. Power Cord
    064APOWERA5P(UK) 064APOWERCBX (EU)
    Power Cord
  4. Ceiling Mount Brackets (white)
    60S3310000AC
    Ceiling Mount Brackets (white)
  5. Cable Fixing Plates
    112AS310-AWL 112AS310-AWX
    Cable Fixing Plates
  6. RS-232 DIN 8 to D-Sub 9 Cable
    064AOTHERBPK
    RS-232 DIN 8 to D-Sub 9 Cable
  7. RS-232 In/Out Cable
    064AOTHERCCN
    RS-232 In/Out Cable

Optional Accessories

  1. Wall Mount Brackets
    60V2B10000AL
    Wall Mount Brackets
  2. Wall Mount Brackets (white)
    60S5120000AB
    Wall Mount Brackets (white)
  3. USB 3.1 A to A cable (10m) **
    064AUSB--CC5​
    USB 3.1 A to A cable (10m) **
  4. USB 3.1 A to A cable (20m) **
    064AUSB--CC6​
    USB 3.1 A to A cable (20m) **
  5. USB 3.1 A to A cable (30m) **
    064AUSB--CDS​
    USB 3.1 A to A cable (30m) **
  6. PTZ Camera Controller CL01
    60S3300000AB
    PTZ Camera Controller CL01
  • ** AVer USB3.0 extender only supports USB3.0 port of PC. It's not compatible with USB2.0.

Specifications

Camera
Image Sensor1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements8 Megapixels
Output Resolutions4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio≥ 50 dB
GainAuto, Manual
TV Lines1400 (Center/Wide)
Shutter Speed1/1 to 1/32,000 sec
Exposure ControlAuto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White BalanceAuto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom30X
Digital Zoom12X
Total Zoom360X
Viewing AnglesDFOV: 69.2° (Wide) to 2.8° (Tele)
HFOV: 62.3° (Wide) to 2.5° (Tele)
VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Lengthf = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance0.1 m (Wide)
1.2 m (Tele)
Pan / Tilt AnglesPan : ±170°
Tilt : +90° / -30°
Pan / Tilt Speed (Manual)Pan : 0.1° to 100° / sec
Tilt : 0.1° to 100° / sec
Preset SpeedPan : 200° / sec
Tilt : 200° / sec
Preset Positions10 (IR)
256 (RS-232, RS-422, IP)
Camera Control - InterfacesRS-232 (DIN8)
RS-422 (RJ45)
IP
Camera Control - ProtocolsVISCA (RS-232 / RS-422 / IP)
PELCO-D & PELCO-P (RS-232 / RS-422)
CGI (IP)
ONVIF
Image ProcessingNoise Reduction (2D / 3D)
Flip
Mirror
Power Frequencies50 Hz, 60 Hz
AI Function
ModeSmartShoot
Audio
Channels2ch Stereo
CodecsAAC-LC
Interface
Video Outputs3G-SDI, HDMI, IP, USB
Audio Outputs3G-SDI, HDMI, IP, USB
Audio InputsMIC in, Line in
General
Power RequirementAC 100 - 240V to DC 12V/2A
Power Consumption19W
PoEPoE+
Dimensions (W x H x D)180.0 x 192.0 x 145.0 mm
Net Weight2.0 (±0.1) kg
ApplicationIndoor
Tally LampYes
SecurityKensington Slot
Remote ControlInfrared
Operating ConditionsTemperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage ConditionsTemperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
Resolution4K 60fps
Network Video Compress FormatsH.264, H.265, MJPEG
Maximum Frame Rate4K 60fps
Bit-Rate Control ModesVBR, CBR (selectable)
Range of Bit-Rate Setting512 Kbps to 120 Mbps
Network Interface10 / 100 / 1000 Base-T
Multi-Stream Capability**5
4K 60fps: RTSP, HDMI, USB & NDI® HX3 / Dante AV-H
1080p 60fps: 3G-SDI
Network ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
AV over IP ProtocolsNDI® HX3 & Dante AV-H
NDI® GenlockN/A
Camera Tracking Data OutputSupports Free-D Type D0 / D1
USB
ConnectorUSB 3.1
Video FormatsMJPEG, YUY2
Maximum Video Resolution2160p
USB Video Class (UVC)UVC 1.1
USB Audio Class (UAC)UAC 1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan, Tilt, Zoom, Focus, Preset Control
Camera / Image AdjustmentExposure, White Balance, Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web BrowsersChrome™, Microsoft Edge, Safari®
Software Tools
IP Search and Configuration ToolSupport Windows® 7 or later
Enterprise Management (PTZ Management)Supports Windows® 10 or later
Control PanelSupports iOS & iPadOS® 11 or later
PTZ LinkSupports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ CamerasSupports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShareSupports Windows® 7 or later, macOS® 10.14 or later
Room Management (PTZApp 2)Supports Windows® 7 or later, macOS® 11.6 or later
Cloud ManagementSupports Chrome™ & Microsoft Edge browsers
Warranty
Camera5 Years
Accessories1 Year
Package Contents
Package ContentsCamera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
Optional AccessoriesAVer CL01 PTZ Camera Controller, L-Type Wall Mount

** When choosing NDI® HX3 Mode, USB video will be disabled.
