PTZ211

Pro AV

PTZ211

Professional PTZ Camera

  • 2 MegapixelsEffective Picture Elements
  • ≥ 50 dBS/N Ratio
  • 1000 (Center)TV Lines
Request a quoteWhatsAppContact

Overview

AVer’s PTZ211 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 12X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ211 .

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Hardware

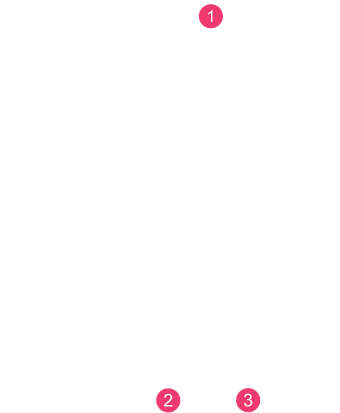

PTZ211 Front
1
Tally Lamp
2
IR Sensor
3
LED Indicator

Standard Accessories

  1. Remote Control
    0412S510-ASR
    Remote Control
  2. 12V/5A Power Adapter
    04131HGOOAPF
    12V/5A Power Adapter
  3. Power Cord
    064APOWERA5P (UK) 064APOWERCBX (EU)
    Power Cord
  4. Ceiling Mount Brackets (white)
    60S3310000AC
    Ceiling Mount Brackets (white)
  5. Cable Fixing Plates
    112AS310-AWL 112AS310-AWX
    Cable Fixing Plates
  6. RS-232 DIN 8 to D-Sub 9 Cable
    064AOTHERBPK
    RS-232 DIN 8 to D-Sub 9 Cable
  7. RS-232 In/Out Cable
    064AOTHERCCN
    RS-232 In/Out Cable

Optional Accessories

  1. PTZ Camera Controller CL01
    60S3300000AB
    PTZ Camera Controller CL01
  2. L-Type Wall Mount
    60V2B10000AL
    L-Type Wall Mount
  3. USB 3.1 Type-A to A cable (10m) **
    064AUSB−−CC5
    USB 3.1 Type-A to A cable (10m) **
  4. USB 3.1 Type-A to A cable (20m) **
    064AUSB−−CC6
    USB 3.1 Type-A to A cable (20m) **
  5. USB 3.1 Type-A to A cable (30m) **
    064AUSB−−CDS
    USB 3.1 Type-A to A cable (30m) **

Specifications

Camera
Image Sensor1/2.8” 1080p Sony Exmor CMOS
Effective Picture Elements2 Megapixels
Output Resolutions1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination0.46 lux (IRE50, F1.6, 30fps)
S/N Ratio≥ 50 dB
GainAuto, Manual
TV Lines1000 (Center)
Shutter Speed1/1 to 1/32,000 sec
Exposure ControlAuto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White BalanceAuto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom12X
Digital Zoom12X
Total Zoom144X
Viewing AnglesDFOV: 80.6° (Wide) to 7.7° (Tele)
HFOV: 72.8° (Wide) to 6.7° (Tele)
VFOV: 44.1° (Wide) to 3.8° (Tele)
Focal Lengthf = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance0.3 m (Wide)
1.5 m (Tele)
Pan / Tilt AnglesPan : ±170°
Tilt : +90° / -30°
Pan / Tilt Speed (Manual)Pan : 0.1° to 100° / sec
Tilt : 0.1° to 100° / sec
Preset SpeedPan : 200° / sec
Tilt : 200° / sec
Preset Positions10 (IR)
256 (RS-232, RS-422, IP)
Camera Control - InterfacesRS-232 (DIN8)
RS-422 (RJ45)
IP
Camera Control - ProtocolsVISCA (RS-232 / RS-422 / IP)
PELCO-D & PELCO-P (RS-232 / RS-422)
CGI (IP)
ONVIF
Image ProcessingNoise Reduction (2D / 3D)
Flip
Mirror
Power Frequencies50 Hz, 60 Hz
AI Function
ModeSmartShoot
Audio
Channels2ch Stereo
CodecsAAC-LC
Interface
Video Outputs3G-SDI, HDMI, IP, USB
Audio Outputs3G-SDI, HDMI, IP, USB
Audio InputsMIC in, Line in
General
Power RequirementAC 100 - 240V to DC 12V/2A
Power Consumption19W
PoEPoE+
Dimensions (W x H x D)180.0 x 192.0 x 145.0 mm
Net Weight2.0 (±0.1) kg
ApplicationIndoor
Tally LampYes
SecurityKensington Slot
Remote ControlInfrared
Operating ConditionsTemperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage ConditionsTemperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
Resolution1080p 60fps
Network Video Compress FormatsH.264, H.265, MJPEG
Maximum Frame Rate1080p 60fps
Bit-Rate Control ModesVBR, CBR (selectable)
Range of Bit-Rate Setting512 Kbps to 120 Mbps
Network Interface10 / 100 / 1000 Base-T
Multi-Stream Capability**5
1080p 60fps: RTSP, HDMI, USB, NDI® HX3 / Dante AV-H & 3G-SDI
Network ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
AV over IP ProtocolsNDI® HX3 & Dante AV-H
Camera Tracking Data OutputSupports Free-D Type D0 / D1
USB
ConnectorUSB 3.1
Video FormatsMJPEG, YUY2
Maximum Video Resolution1080p
USB Video Class (UVC)UVC 1.1
USB Audio Class (UAC)UAC 1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan, Tilt, Zoom, Focus, Preset Control
Camera / Image AdjustmentExposure, White Balance, Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web BrowsersChrome™, Microsoft Edge, Safari®
Software Tools
IP Search and Configuration ToolSupport Windows® 7 or later
Enterprise Management (PTZ Management)Support Windows® 10 or later
Control PanelSupports iOS & iPadOS® 11 or later
PTZ LinkSupports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ CamerasSupports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShareSupports Windows® 7 or later, macOS® 10.14 or later
Room Management (PTZApp 2)Supports Windows® 7 or later, macOS® 11.6 or later
Cloud ManagementSupports Chrome™ & Microsoft Edge browsers
Warranty
Camera5 Years
Accessories1 Year
Package Contents
Package ContentsCamera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
Optional AccessoriesAVer CL01 PTZ Camera Controller, L-Type Wall Mount

** When choosing NDI® HX3 Mode, USB video will be disabled.
