MT500

Matrix Tracking Box

Centralized Intelligence in One Core

  • Up to 25IP Stream Inputs
  • IP/USB x 8 + HDMI® x 3Display Capabilities
  • RTSP, RTMP, HLS, NDI® HX2AV-over-IP Protocols
Request a quoteWhatsAppContact

Overview

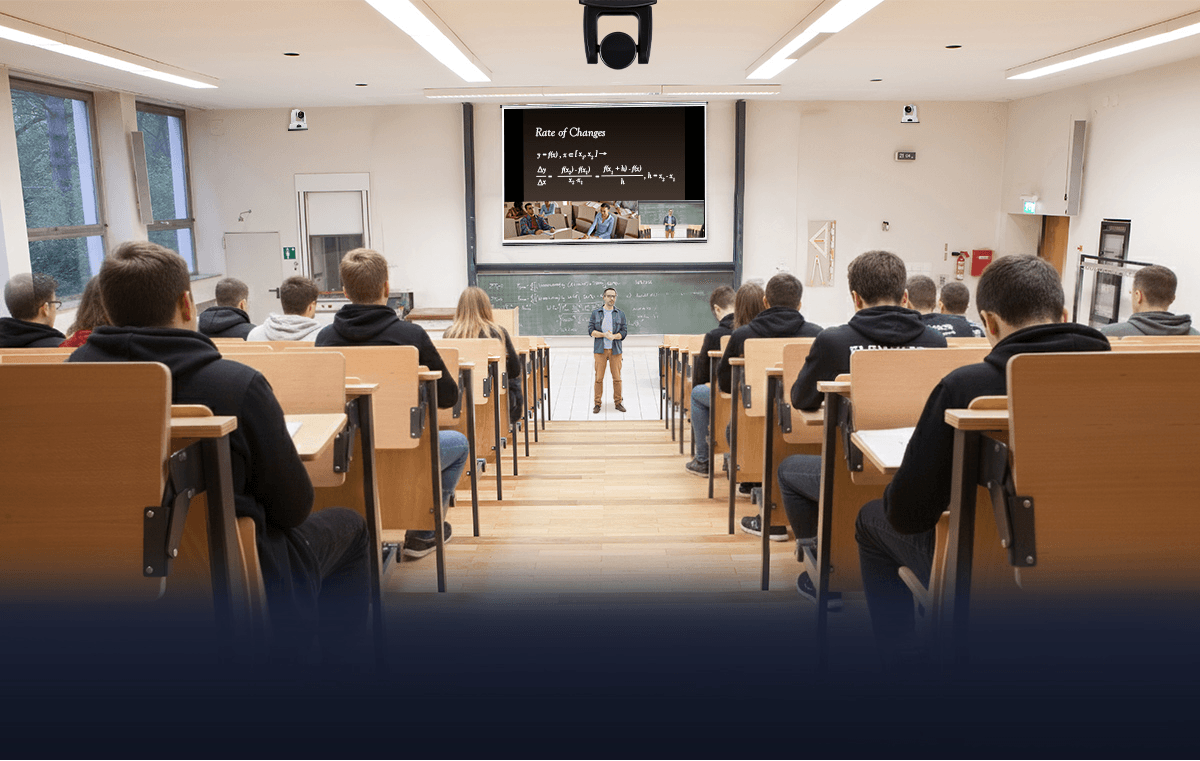

Designed for large lecture halls, council chambers, corporate boardrooms, and high-impact environments, the AVer MT500 4K Matrix Tracking Box delivers AI-powered multi-camera auto-switching and voice tracking. Dual independent 4K outputs simultaneously serve in-room displays and streaming/recording platforms. Native support for Dante® Audio, Dante® AV-H, and NDI® simplifies complex AV-over-IP workflows, making the MT500 the ideal choice for hybrid classrooms, lecture capture, training rooms, and modern enterprise workspaces.

* Microsoft Teams Certification is in progress.

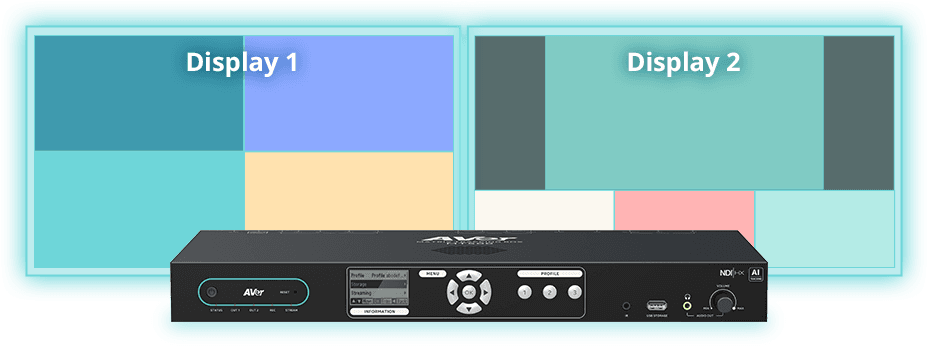

One Box, Two Separate Video Feeds.

Dual independent outputs provide two separate video and audio streams via IP, HDMI®, and USB. This enables one matrix box to simultaneously deliver distinct feeds—one optimized for in-room displays and another tailored for streaming, recording, or remote sharing—meeting diverse content presentation and distribution needs with ease.

mt500

Multi-Camera Switching, Richer Views.

Connecting multiple AVer cameras, the MT500 intelligently switches between them to present multi-camera views from diverse angles. Key elements—speaker, audience, and interaction—are included in one layout, enhancing content detail.

Learn More about Multi-Camera Solutions
mt500

PTZ Link Premium. Let the Talk Drive the Angles.

Leveraging built-in PTZ Link Premium, the MT500 connects AVer cameras with leading microphone systems, upgrading tracking from individual human-based to synchronized voice-tracking. Cameras instantly transition based on voice location, following the active speaker and creating automated, broadcast-style coverage.

PTZ Link Supported Microphones

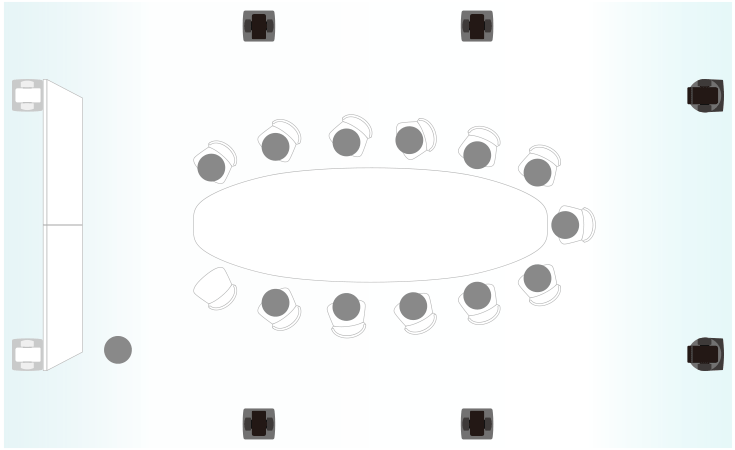

FaceFocus AI selects, from multiple cameras, the view where the speaker’s face is most front-facing. This front-face experience lets remote participants see expressions and eye contact more clearly, improving comprehension and engagement without operators searching for the right angle.

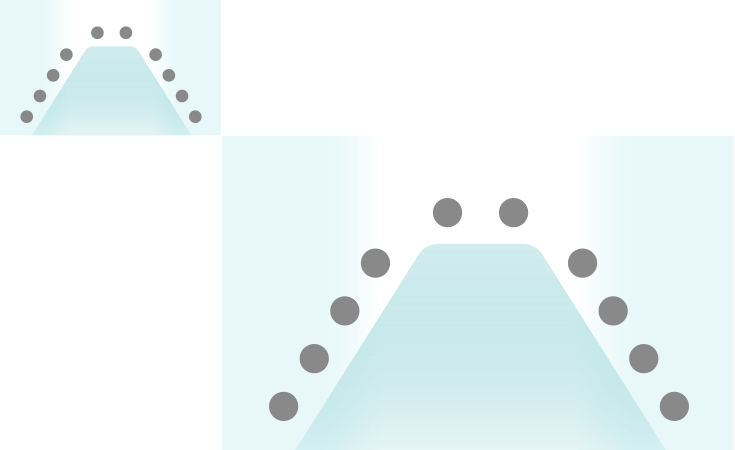

IntelliSwitch intelligently coordinates between active cameras, dynamically selecting the optimal view of the newly active speaker. Unlike a single camera swinging back and forth, this ensures subtle movements and smooth transitions — so viewers stay focused during panel discussions and multi-presenter events.

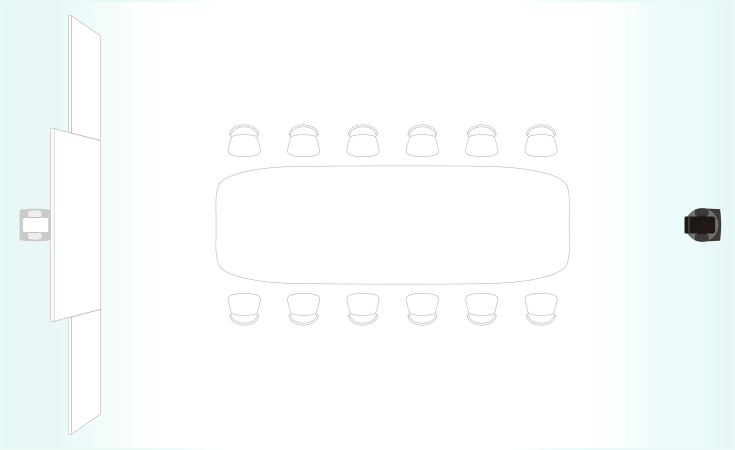

InstaConfig speeds up system setup by analyzing connected cameras and microphones, then suggesting how camera presets should map to microphone channels. This AI-enhanced feature cuts repetitive manual preset configuration and helps integrators get complex AV rooms ready faster.

AVer

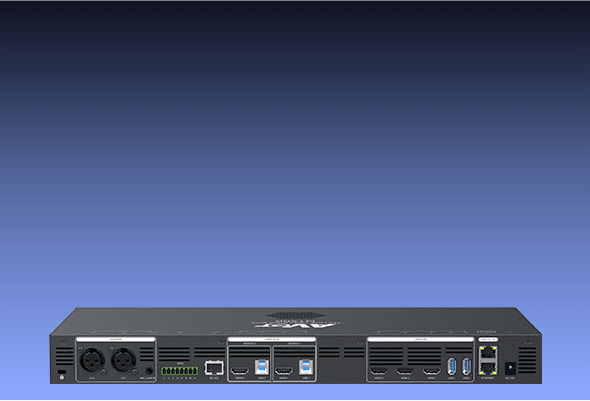

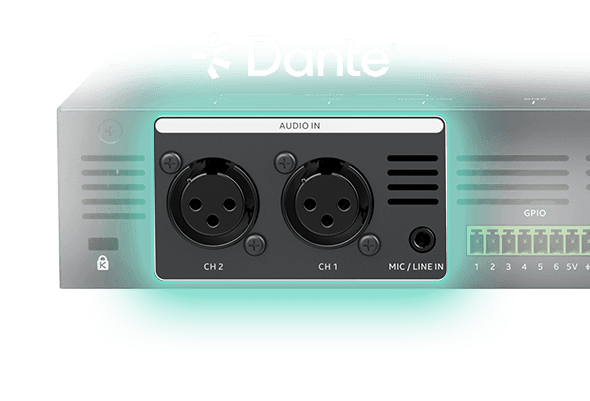

Bring Dante® and Local Audio Together.

Bring Dante® and Local Audio Together.

The MT500 integrates a variety of digital and analog audio sources, including HDMI®, USB, XLR, 3.5 mm, RTSP, and the industry-standard Dante® network audio. By consolidating these diverse signals, it allows meeting spaces to easily connect and control microphones.

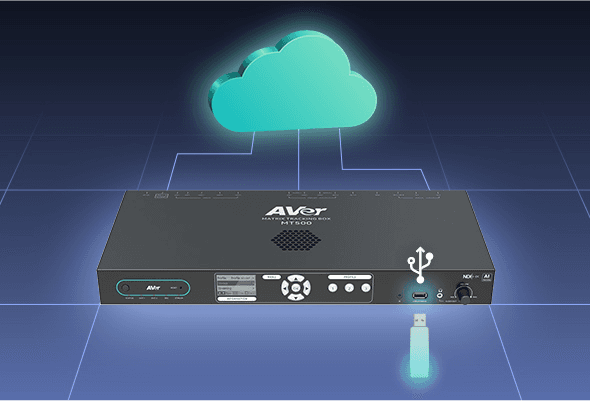

Record, Share, Review, and Archive on NAS or USB.

Record, Share, Review, and Archive on NAS or USB.

The MT500 records sessions directly to Network-Attached Storage (NAS) or USB drives, turning lectures and meetings into files that can be centrally archived, quickly shared, and easily replayed. This simplifies long-term storage and on-demand playback without external recorders or extra PCs.

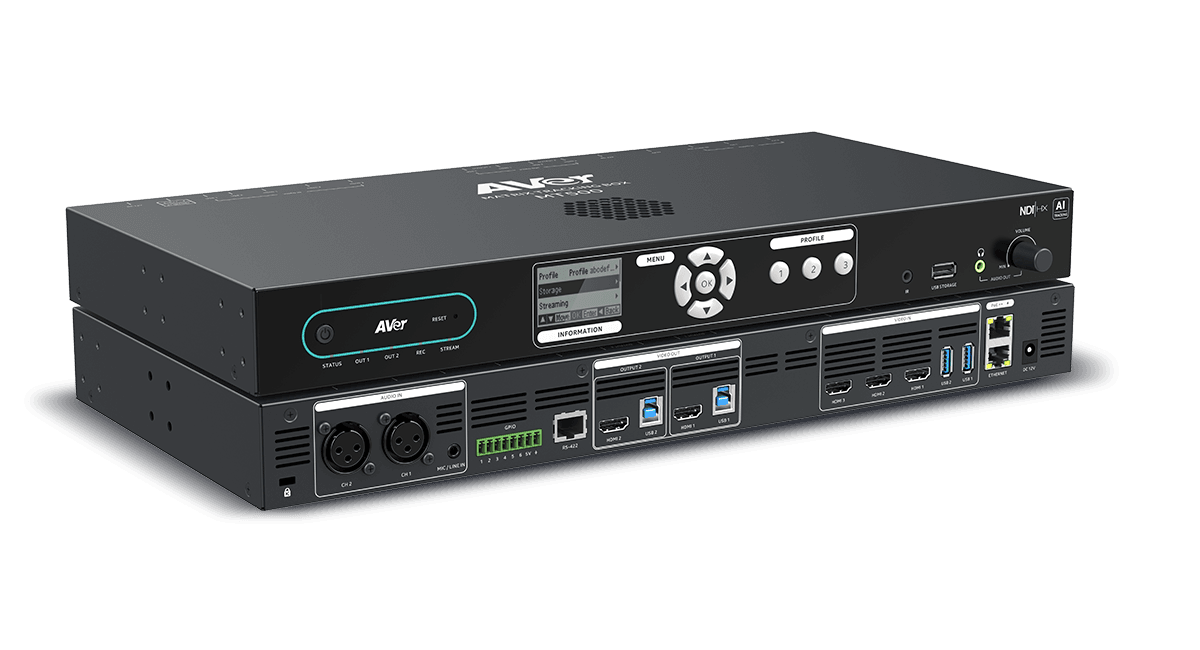

Practical, User-Centric Design.

The front panel shows real-time profile and output status at a glance. The screen and buttons let operators switch profiles and confirm settings quickly. An internal fan ensures consistent airflow for cooler, more reliable operation during mission-critical sessions.

AVer Machine Cool Air Heat
▶

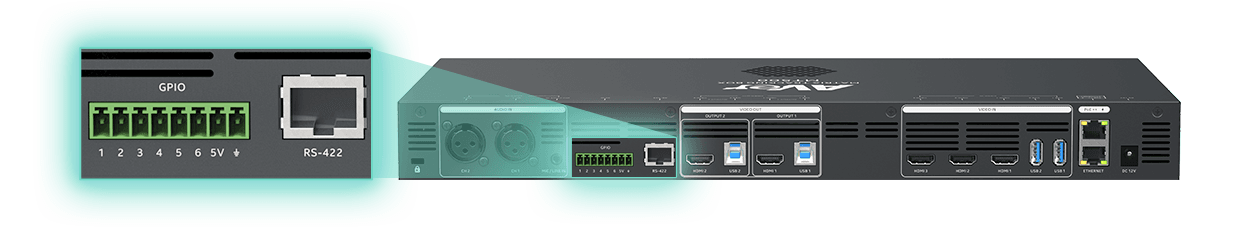

Smart Room Automation.

The MT500 integrates through GPIO and RS-422 with controllers, lights, screens, and more. It automatically activates room functions, keeping everything in sync and control effortlessly.

AVer
mt500

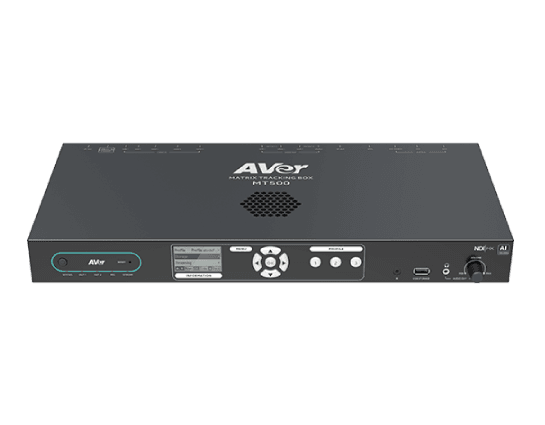

Product Appearance

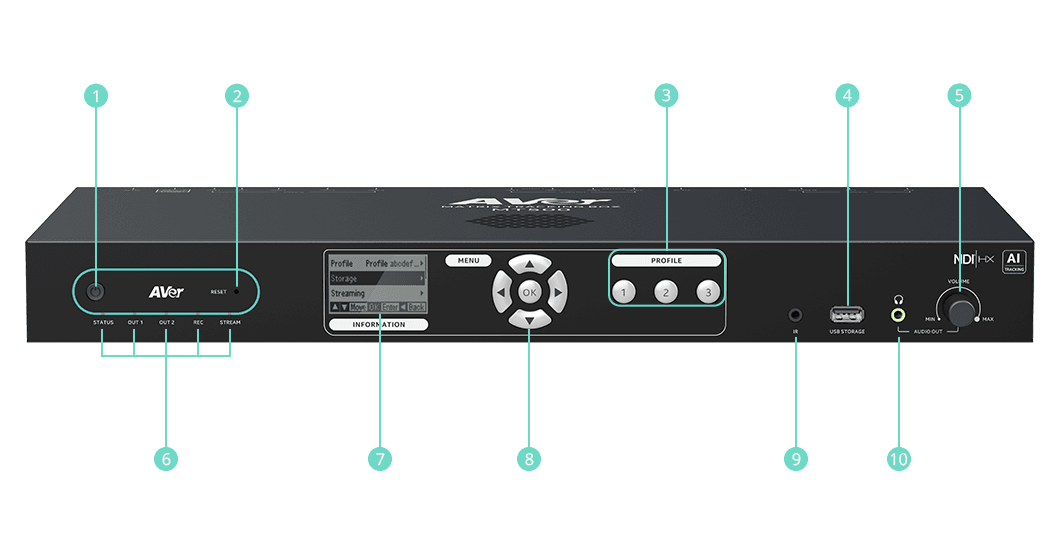

MT500 Front
1
Power Button
2
Reset Button
3
Profile Buttons
4
USB Storage Port
5
Volume Knob
6
LED Indicators
7
LCM Screen
8
Menu Buttons
9
IR Extension Port
10
3.5 mm Audio Out

Standard Accessories

  1. Power Adapter
    Power Adapter
  2. Power Cable
    Power Cable
  3. Cable Ties
    Cable Ties
  4. 3.0 x 5 mm Truss Head Screws
    3.0 x 5 mm Truss Head Screws
  5. M3 x 10 mm Screws
    M3 x 10 mm Screws
  6. Rack Mount Brackets
    Rack Mount Brackets
  7. USB 3.0 Cables
    USB 3.0 Cables
  8. Phoenix® Combicon 8-pole Connector
    Phoenix® Combicon 8-pole Connector
  9. Quick Start Guide
    Quick Start Guide
  10. Cable Fixing Plate
    Cable Fixing Plate

Optional Accessories

  1. 3.0 x 5 mm Flat Head Screws
    3.0 x 5 mm Flat Head Screws
  2. 3.0 x 5 mm Truss Head Screws
    3.0 x 5 mm Truss Head Screws

Specifications

Video Inputs
Physical Input ConnectorsUSB 3.0 Type-A x 2, HDMI 2.0 x 3
IP Stream InputsUp to 25
Display CapabilitiesIP/USB x 8 + HDMI® x 3
AV-over-IP ProtocolsRTSP, NDI® HX2, NDI® HX3, Dante® AV-H (Requires a license sold separately)
Video Outputs
Physical Output ConnectorsHDMI 2.0 x 2, USB 3.0 Type-B (UVC/UAC) x 2, IP x 2
AV-over-IP ProtocolsRTSP, RTMP, HLS, NDI® HX2
Dual Independent OutputsContent 1: HDMI® 1/USB 1/IP
Content 2: HDMI® 2/USB 2/IP 2
Supported Resolutions & Codecs
ResolutionUp to 4K 60fps
CodecsH.264, H.265, MJPEG
Audio
Analog Audio I/OXLR Balanced in x 2, 3.5 mm Mic/Line in x 1, 3.5 mm out x 1
Dante® AudioYes (Requires a license sold separately)
USB Audio BypassBi-directional UAC
Audio Mixing8CH Matrix Mixer
Layout Engine
Auto Layouts6 (Single, Side-by-Side, Active Speaker, PiP, Customize, Advanced)
Manual Layouts7 (Single, Side-by-Side, Main Speaker-3 Inputs, Main Speaker-4 Inputs, PiP, Quad View, Advanced)
I/O Interfaces
GPIO6-Pin Configurable
RS-4221
Ethernet1
PoE++1 (IEEE 802.3bt Class 5, 41.1V to 57V 1.5A)
Control & Management
ProtocolsVISCA over IP, CGI
ManagementWeb UI
On-Device ControlsVia Buttons, LCM Screen
Recording & Storage
Local RecordingDirect to USB Storage Device
Network RecordingDirect to NAS
AI Features
FaceFocusYes
IntelliSwitchYes
InstaConfigYes
Software Tools
Device UtilitySupports Windows® 10 or later, macOS® 10.14 or later
Enterprise ManagementSupports Windows® 10 or later
Room ManagementSupports Windows® 7 or later, macOS® 11.6 or later
Cloud ManagementSupports Chrome™ & Microsoft Edge browsers
MT Control PanelSupports Windows® 7 or later, macOS® 10.14 or later, Android™ 8.0 or later
PTZ Link PremiumBuilt-in for Voice Tracking
General
LCM ScreenYes, 2-inch
ButtonsMenu, Profile, Power, Reset, Volume Knob
LED IndicatorsStatus, Output 1, Output 2, Record, Stream
Dimensions (W x H x D)227.1 x 44.0 x 430.0 mm
Net Weight2.48 (±0.1) kg
Power RequirementAC 100 - 240V to DC 12V/7.5A
Power Consumption23 W
SecurityKensington Slot
Operating ConditionsTemperature: 0 °C to +40 °C, Humidity: 20% to 80%
Storage ConditionsTemperature: -20 °C to +60 °C, Humidity: 20% to 95%

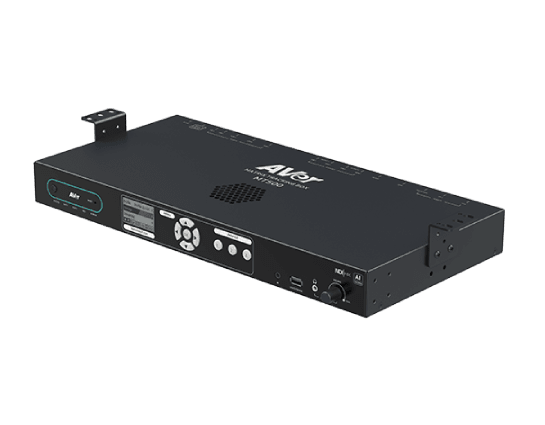

Installation MethodsRack Mounted, Under the Table, Inside the Podium, Behind the Display
Warranty
MT5005 Years
Accessories1 Year
Package Contents
Package ContentsMT500, Power Adapter, Power Cord, Cable Fixing Plate, Cable Tie (x9), 3.0 x 5 mm Truss Head Screw (x10), M3 x 10 mm Screw (x4), Rack Mount Bracket (x2), USB 3.0 Type-A to Type-B Cable (x2), Phoenix® Combicon 8-pole Connector, Quick Start Guide
Optional Accessories3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2)

NDI® is a registered trademark of Vizrt NDI AB.

Audinate®, the Audinate logo and Dante® are registered trademarks of Audinate Pty Ltd. Dante® functionality requires a separate license purchase for activation.

Android is a trademark of Google LLC.

All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
