M15W

Mechanical Arm Wireless Visualizer

Power Your Teaching by Connecting in a Second

1/3.06" CMOSImage sensor
13 megapixelsTotal pixels
60 fps (max.)Frame rate

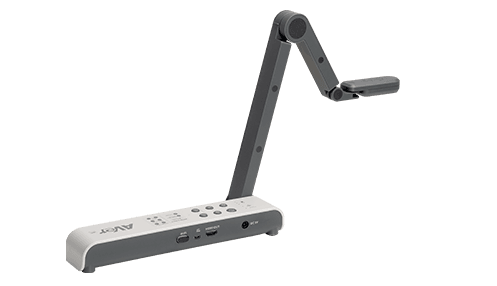

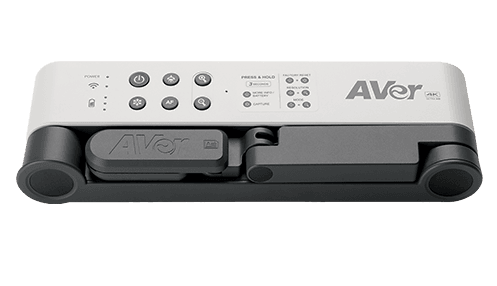

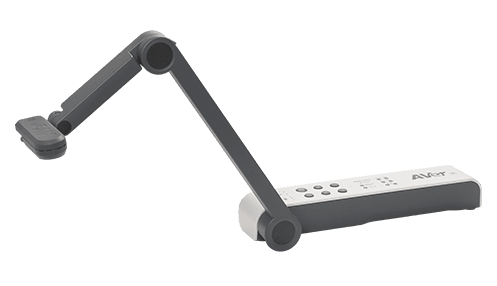

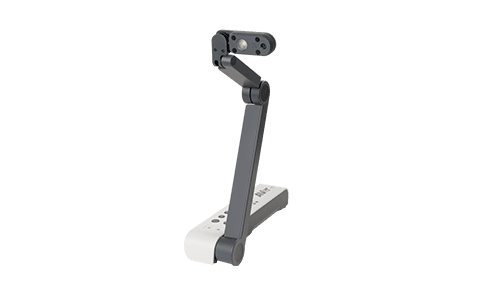

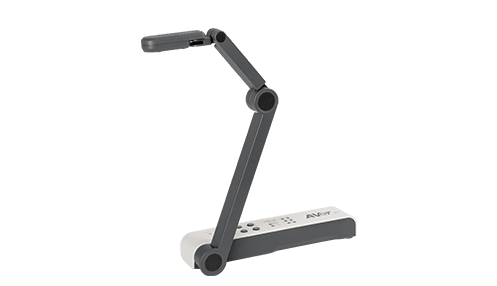

Product views

Overview

The M15W is a visualizer (document camera) designed to facilitate learning at all education levels. The beautifully sleek, compact body of the M15W reflects the wild freedom of its Wi-Fi connectivity and stunning 13-megapixel camera with 4K, 60fps imaging. Creating an engaging and interactive learning experience in a second with M15W’s wireless advantage is a dream come true.

13-Megapixel Camera with 4K Quality

The 13-megapixel camera delivers 4K Ultra HD 60fps output resolution, creating remarkably detailed images of any object. Enjoy breathtaking video with no lag.

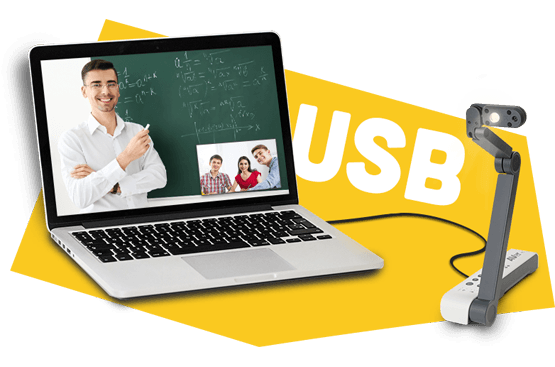

Fantastic USB Camera for Distance Learning

The M15W’s extremely compact and lightweight design makes it the best USB camera for boundary-free distance learning. It even includes a highly convenient rechargeable battery so you can just grab it and get online!

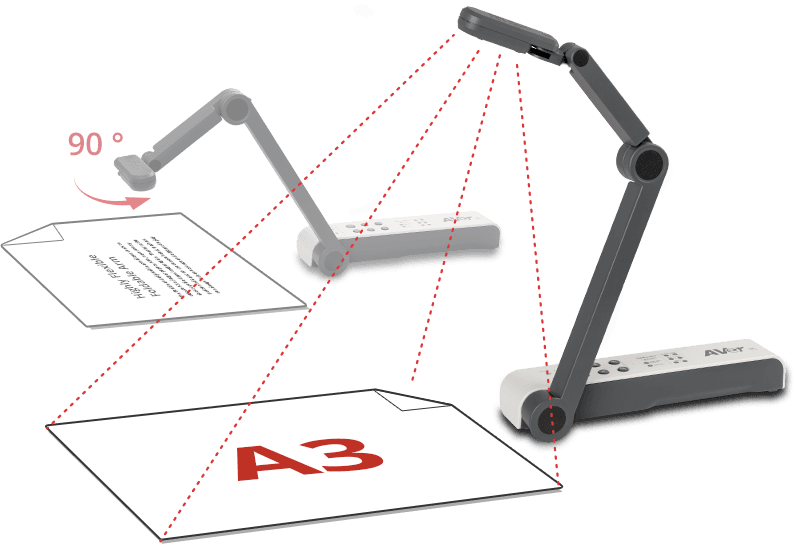

Highly Flexible Foldable Arm

The flexible and adjustable arm allows users to capture A3 or larger papers. Also, never worry about upside-down images again. Thanks to the position indicator on the camera head, teachers can always rock an accurate and efficient display.

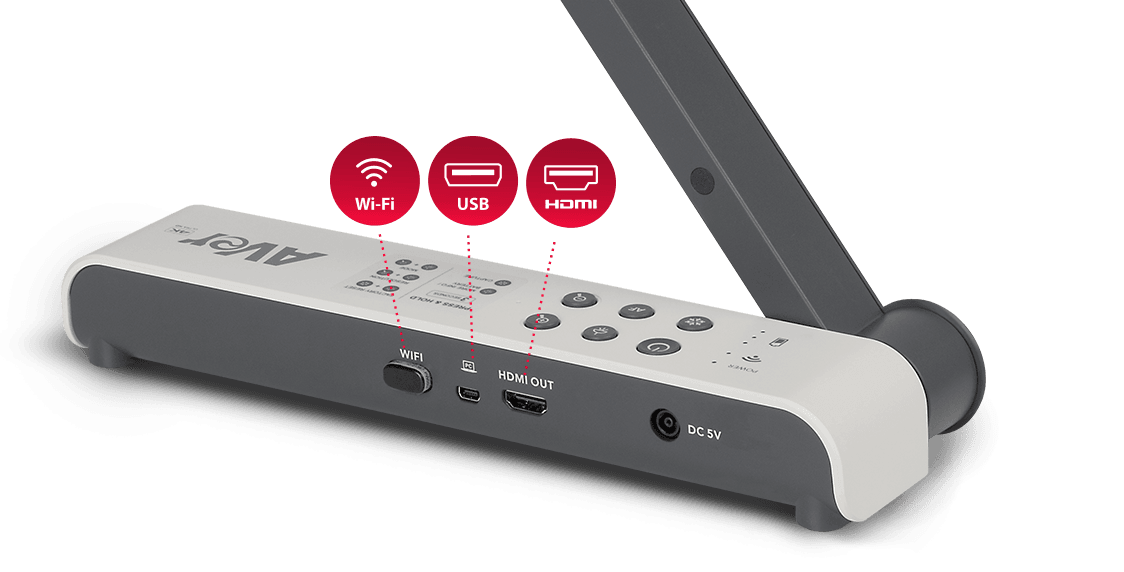

Wired or Wireless — Whichever You Prefer

Not a fan of wireless connection or don’t have an ideal Wi-Fi environment? No problem. Teachers can visualize materials from multiple devices via USB or HDMI connections. Changing teaching behavior should be the least of your concerns.

AVerTouch Software

Here comes AVer’s latest and most powerful software—AVerTouch. All it takes is one touch to connect the M15W with mobile devices for content sharing, and teachers can connect to the cloud to automatically save annotated, captured, and recorded files.

Choose a topic

Optional Accessories

Carrying bag
Anti-glare sheet

Specifications

Image sensor

Image sensor	1/3.06" CMOS
Total pixels	13 megapixels
Frame rate	60 fps (max.)
Output resolution	4K / Full HD 1080p 60Hz / HD 720p 60Hz
TV lines	1400
Zoom	Total 23X (max.)
Focus	Auto / Manual / Area (via software)
Shooting area	A3 (426 x 313 mm at 330 mm)
Image rotation	0° / 90° / 180° (rotate by camera head)
Preview mode	Normal / Motion / High Quality
Effect	Rotate / Freeze
Dual mode	AP / Station DHCP (Server / Client)
Wi-Fi streaming	1080p 30 fps / up to 4K 30 fps
Dual band	5 GHz / 2.4 GHz
Miracast	Yes
Compatibility	802.11a/b/g/n/ac (45 ft effective range)
Wireless security	Support WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise(EAP-PEAP, EAP-TLS)
Image effects	Color / B&W / Negative
Image adjustments (white balance / exposure)	Auto / Manual
Recording	Yes, via software
Capture	Yes, via software
Annotation	Yes, via software
Timer	Yes, via software
Picture-by-picture	Yes, via software
Capture mode	Single, via software
User profile	1
Flicker filter control	Yes
ePTZ	Yes, via software
Cloud library	Yes, via software
USB bus power	Yes, standby only
Lamp type	LED light
MIC	Built-in
USB	USB 2.0 Type A (Wi-Fi Dongle) USB Type mini-B *1
Dimensions (L x W x H)	Operating: 518 mm (L) x 84 mm (W) x 351 mm (H) Folded: 280 mm (L) x 84 mm (W) x 42 mm (H)
Weight	0.68 kg (1.5 lbs)
Warranty	Visualizer: 3 years Battery and accessories: 1 year
Power source	DC 5V/2A AC 100-240V
Consumption	4 Watts (lamp on) 3.5 Watts (lamp off)
Windows® OS	Windows®7, 10, 11
Mac® OS	macOS® 10.15, 11, 12
iOS	iOS 12
Android™ OS	Android 7.1
Optional accessories	Carrying bag Anti-glare sheet
Package Contents	AVerVision M15W unit Quick guide USB cable Power adapter (DC 5V) Warranty card
