USB Video Conferencing

VC520 Pro3

Professional camera and speakerphone for mid-to-large room meeting

Present with Realistic Imagery and Vivid Audio

Request a quoteWhatsAppContact

Overview

The VC520 Pro3 stands out as an advanced conferencing system. It boasts a 36X total zoom PTZ camera, enhanced AVer SmartFrame, Preset Framing, and a Sony WDR sensor. Additionally, the VC520 Pro3 offers 3-way outputs, including HDMI® connectivity, for a wider range of streaming options and a superior video and audio experience. But what truly sets the VC520 Pro3 apart is its Smart Composition feature, an embedded AI function designed to swiftly capture high-quality closeup images of meeting participants. And with an extended speakerphone solution, the VC520 Pro3 delivers an exceptional video conferencing experience.

Dominate the Details with 36X* Total Zoom Lens and WDR Sensor

Host flawless meetings with the VC520 Pro3’s PTZ lens that offers, boasting an expansive 80.5° diagonal field of view for capturing wide shots and offering versatile pan and tilt controls for focusing on presenters, attendees, whiteboard content, or physical objects. Harness precision with a 12X optical lens and a remarkable 36X* total zoom, including a 24X lossless zoom for exceptional clarity in remote communication. Plus, the Sony WDR sensor ensures adapt to diverse lighting conditions, making the VC520 Pro3 the perfect conferencing camera for mid-to-large rooms.

vc520pro3

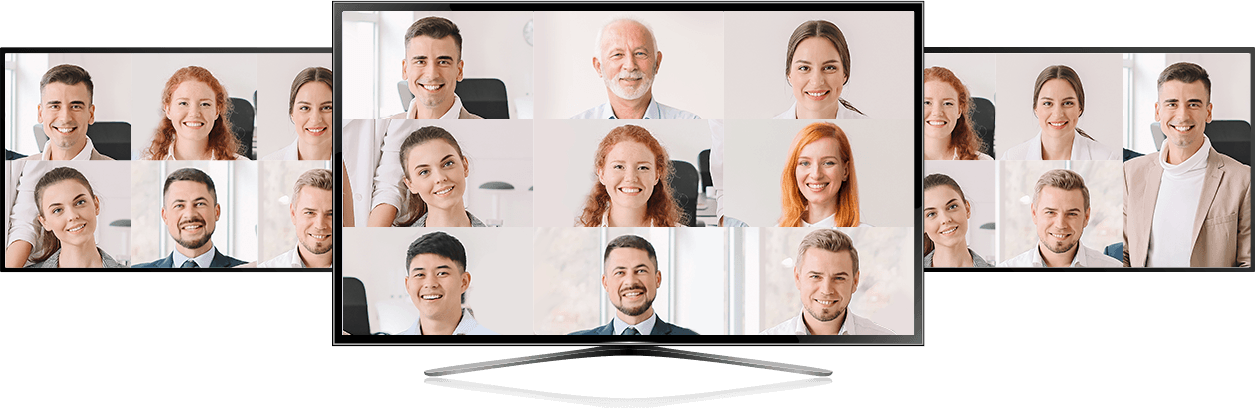

Accurate Attendee Capture with AVer Smart Composition – No Installation Required

The VC520 Pro3 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant's face or body perfectly. It's a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the VC520 Pro3, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.

vc520pro3
vc520pro3
vc520pro3

Flexible Video Outputs for Multi-Purpose Applications

The VC520 Pro3 enables simultaneous connection and output through HDMI®, USB, and IP ports, delivering three concurrent high-quality 1080p 60fps video streams, making it incredibly adaptable for a wide range of applications. Whether you're hosting virtual meetings, giving presentations, or live streaming via RTSP/RTMP, the VC520 Pro3 handles it all with ease.

vc520pro3
vc520pro3

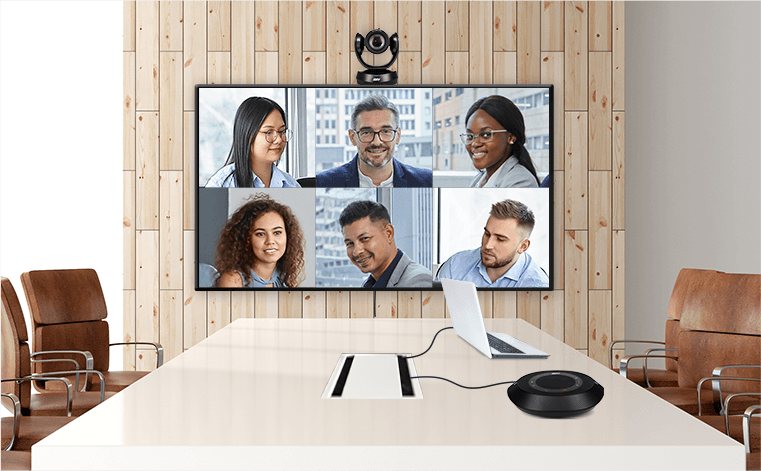

Support Video and Audio with One USB Cable Solution

Setting up the VC520 Pro3 is simple. Plugging a single USB cable into your computer is all it takes to get ready for a call, which saves time and helps you maintain an uncluttered meeting space. Simplify your setup and reduce installation costs with the VC520 Pro3.

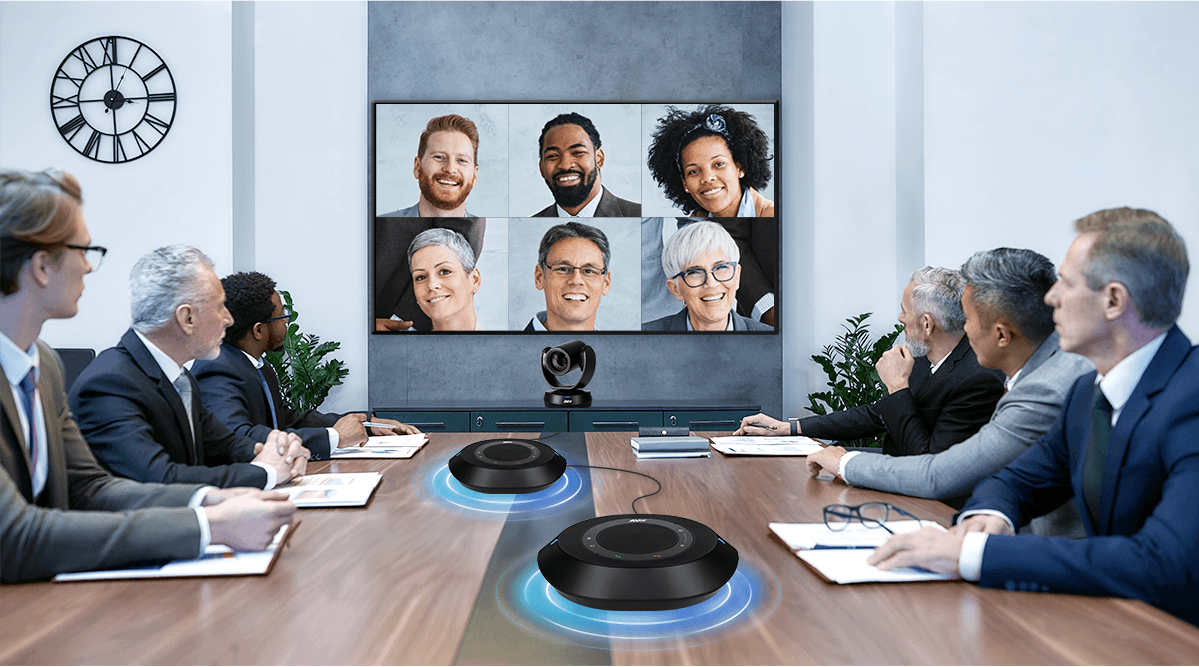

Exceptional Audio Quality with an Extended Speakerphone

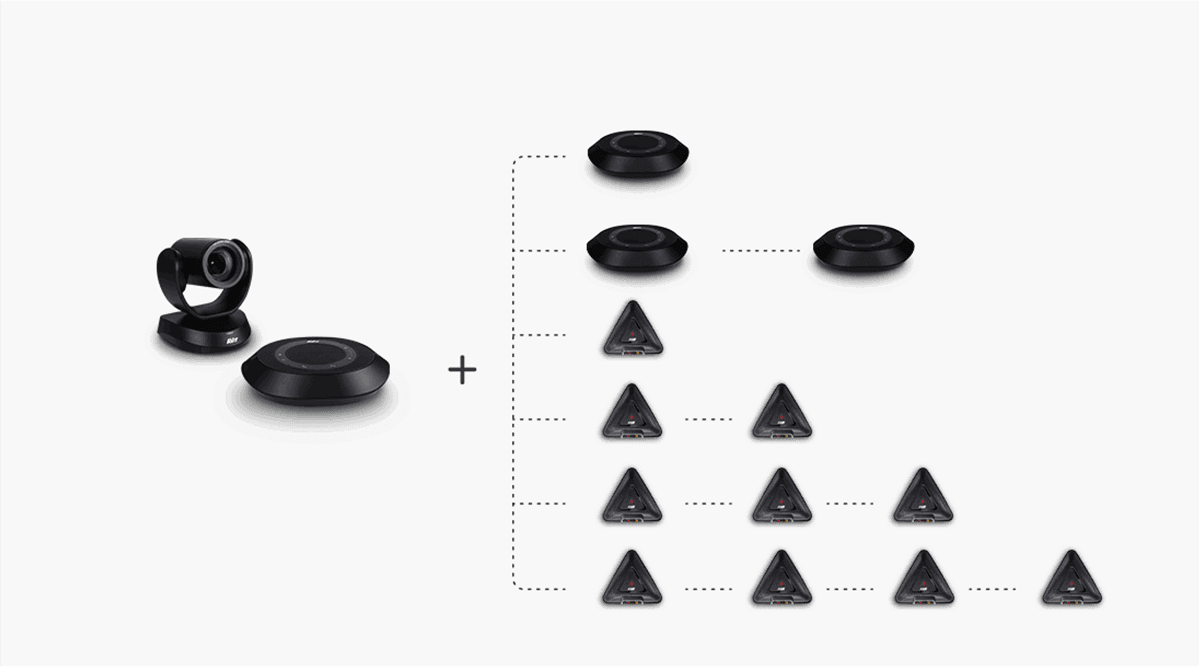

The VC520 Pro3 delivers a consistent and well-balanced audio performance. Also, it accommodates either two expansion speakerphones or a full-duplex microphone set. This innovative speakerphone feature makes the VC520 Pro3 the ideal choice for mid-to-large conference rooms.

Note:
  • Expansion speakerphones and microphones cannot be added together.
  • The standard speakerphone cannot be applied as an expansion speakerphone.
vc520pro3

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Hardware Spec

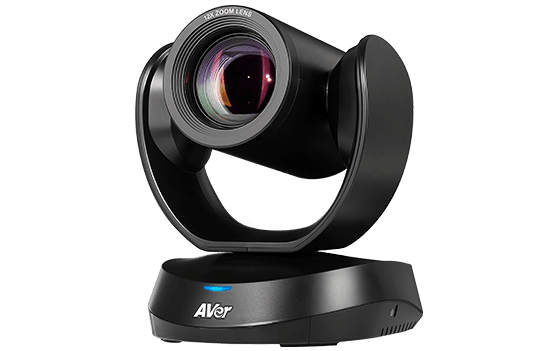

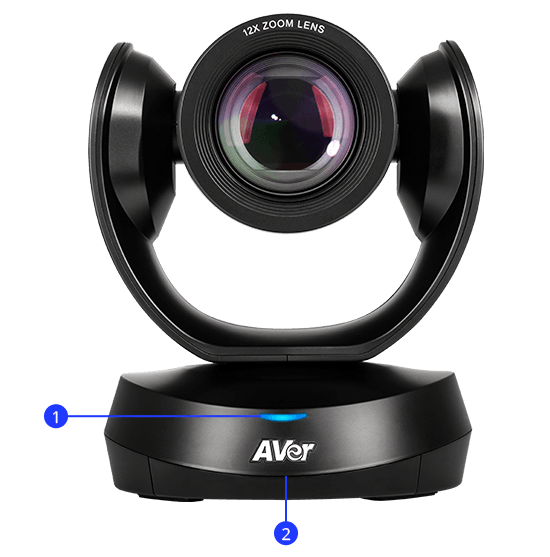

VC520 Pro3 Camera Front
1
LED
2
IR

Package Content

  1. VC520 Pro3 Camera
    55U0120000AB
    VC520 Pro3 Camera
  2. VC520 Pro3 Speakerphone
    55U0120000AD
    VC520 Pro3 Speakerphone
  3. Remote Control
    0412U340-ASB
    Remote Control
  4. Power Adapter
    04131HGOOARC
    Power Adapter
  5. USB 2.0 Type-B to Type-A Cable (5m)
    064AUSB--CRF
    USB 2.0 Type-B to Type-A Cable (5m)
  6. Camera to Speakerphone Cable (33 ft/10 m)
    064AOTHERCFV
    Camera to Speakerphone Cable (33 ft/10 m)
  7. Power Cord
    064APOWERA5P(UK) 064APOWERCBX (EU)
    Power Cord
  8. 3.5 mm aux cable (3 ft/0.9 m)
    064AAUDIOCBS
    3.5 mm aux cable (3 ft/0.9 m)
  9. Wall Mount
    112AU340-A6B*1 112AU340-A6C*1 100AAAAAAAMD*2
    Wall Mount
  10. Tripod Screw
    100AAAAAAAM5*2
    Tripod Screw

Optional Accessories

  1. Expansion Speakerphone (incl. 10m Cable)
    60U0100000AB
    Expansion Speakerphone (incl. 10m Cable)
  2. Expansion Microphone
    60U0100000AC
    Expansion Microphone
  3. Camera-to-Speakerphone Cable (20 m)
    064AOTHERCD4
    Camera-to-Speakerphone Cable (20 m)
  4. Expansion Speakerphone / Mic Cable (5/10/20 m)
    064ANET--CF6 (5m) 064AOTHERCFS (10m) 064AOTHERCFX (20m)
    Expansion Speakerphone / Mic Cable (5/10/20 m)
  5. USB3.1 fiber extender 10m
    064AUSB−−CC5
    USB3.1 fiber extender 10m
  6. Foldable TV Mount
    60V2C10000A7
    Foldable TV Mount
  7. Mini DIN8 to D-SUB9 RS232 adapter
    064AOTHERBPK
    Mini DIN8 to D-SUB9 RS232 adapter
  8. Mini Din 9 to mini DIN8 RS232 Adapter
    064AOTHERCGR
    Mini Din 9 to mini DIN8 RS232 Adapter
  9. Ceiling Mount
    112AV8U2-A5A
    Ceiling Mount
  10. USB3.1 type-B to type-A cable 3m
    064AUSB—CCP
    USB3.1 type-B to type-A cable 3m

Specifications

Camera
CameraImage Sensor: 1/2.8” 4K Sony Exmor CMOS
Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
SmartFrame for automatic FOV adjustment to fit all participants.
Smart Composition function offers great visibility for the individual participant in the meeting room.
Innovative Preset Framing: Follow the presenter based on preset areas.
WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions.
Zoom: 36X* Total Zoom (12X Optical Zoom)
Viewing Angles: DFOV: 80.5°, HFOV: 72.8°, VFOV: 44.1°
Lens Focal Length: 3.9 mm (wide) ~ 46.8 mm (tele)
Lens F#: 1.6 (wide) ~ 2.8 (tele)
Mirror, Flip, White Balance: Auto/Manual override via Room Management
Minimum Focus Distance: 1 meter
Standard tripod screw holes and Kensington slot.
People-counting API: Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage.
*Please use Room Management to set up 36X zoom.
Motorized Pan & Tilt MovementPan: ±170°
Tilt: +90° (up) -30° (down)
10 Camera Presets (via remote control)
Video FormatYUV, YUY2, MJPEG
Network Video Compression Format: H.264, H.265
Network Protocol: RTSP, RTMP

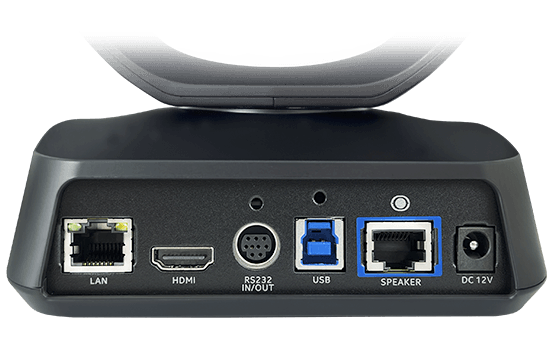

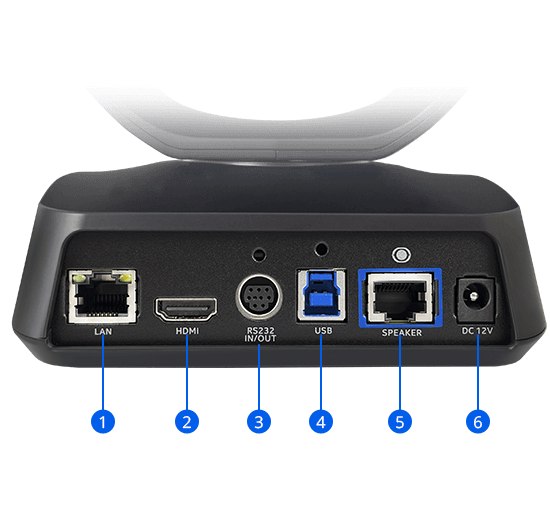

Connectivity12V/5A Power Adaptor
Mini DIN9 for RS-232 In & Out Connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B Connector
IP (RJ-45)
HDMI® Out
USBConnector: USB 3.1
USB Video Class (UVC): UVC 1.1
USB Audio Class (UAC): UVC 1.0
ControlIR Remote Control
VISCA/Pelco-P/Pelco-D via RS-232 (128 preset points via VISCA command)
Remote Side: VISCA over IP, IP (RJ-45)
UVC/UAC Plug-and-Play
WebUI: Browser IP access via Chrome browser
Room Management (PTZApp 2)
MountCamera Wall-Mount Bracket
Foldable TV mount (Optional)
Ceiling Mount (Optional)
System RequirementsWindows® 7/10/11
Mac OS X 10.4 or later
Google Chromebook™ version 94.0.4606.114 or later
PC Hardware Requirements3.2 GHz Intel® Core™ i5-4460 Processor
4 GB RAM or more
USB 3.1 Port (Backward compatible with USB 2.0 port)
Webpage Browser RequirementsChrome: Version 76.x or above
Firefox: Version 69 or above
Internet Explorer: Not support
Software Tools
EZManager 2Supports Windows® 7 or later
Room ManagementSupports Windows® 7 or later, macOS® 11.6 or later
EZLiveSupports Windows® 7 or later
Enterprise ManagementSupports Windows® 10 or later
Cloud ManagementSupports Chrome™ & Microsoft Edge browsers

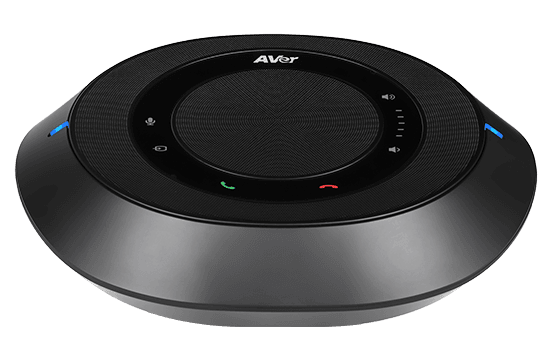

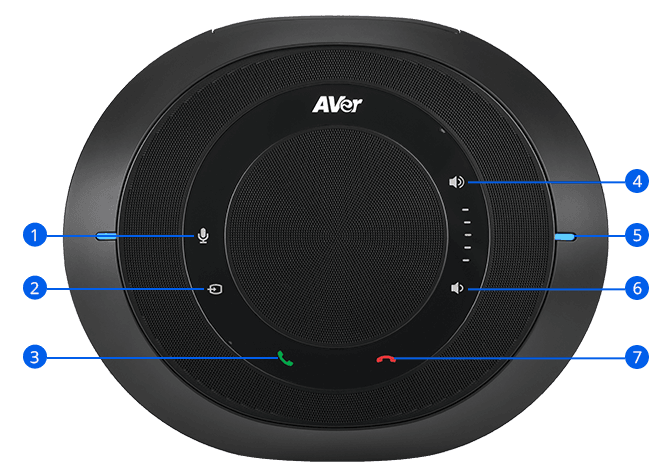

Speakerphone
SpeakerphoneAcoustic Echo Cancellation (AEC): Yes
Noise Suppression: Yes
Dual-omnidirectional Microphone
3.5 mm Phone-in Jack
3.5 mm Line Out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Touch Controls for volume down/up, mute, phone input, call, hang-up
Bridge phone-in and USB into one call
Security: Kensington Slot
Audio FormatAAC-LC
Network Protocol: RTSP, RTMP
Power SupplyAC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 5A
DimensionsPackage Dimension (W x H x D): 259 x 259 x 349 mm
Package Weight: 5.805 kg
Camera Dimension (W x H x D): 182 x 142.7 x 153 mm; Net Weight: 1.47 kg
Speakerphone Dimension (W x H x D): 220 x 181.5 x 49.5 mm; Net Weight: 0.85 kg
Package ContentsVC520 Pro3 Camera
VC520 Pro3 Speakerphone
Remote Control
Power Adapter
Power Cord
USB 2.0 Type-B to Type-A Cable
Camera to Speakerphone Cable
3.5 mm aux Cable
Wall-Mount Bracket
Tripod Screw
QR Code Card
Optional AccessoriesMini DIN8 to D-SUB9 RS-232 Adapter
Expansion Speakerphone
Expansion Microphone
Foldable TV Mount
USB 3.1 Fiber Extender
USB3.1 Type-B to Type-A Cable
Ceiling Mount
Environmental DataOperating Temperature: 0 °C to +40 °C
Operating Humidity: 20% to 80%
Storage Temperature: -20 °C to +60 °C
Storage Humidity: 20% to 80%
WarrantyCamera / Speakerphone: 3 Years
Accessories: 1 Year
Compatible ApplicationsZoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
