USB Video Conferencing

AVer HUB35-EXT35

4K BYOM Matrix Switcher Kit

Beyond Connection. Pure Collaboration.

5 YearsWarranty
5 YearsWarranty

Overview

Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it's ideal for large and extra-large spaces.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

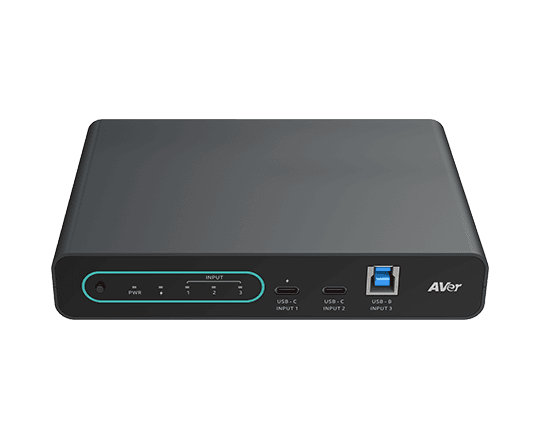

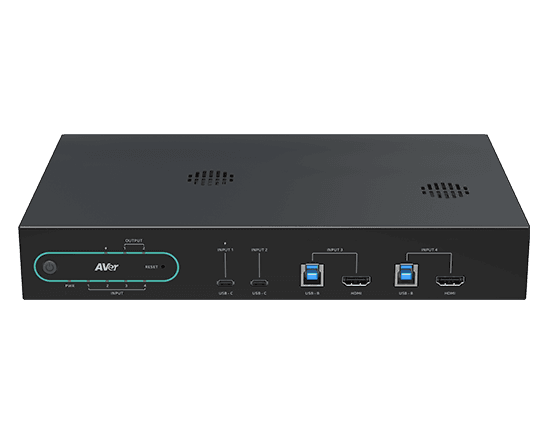

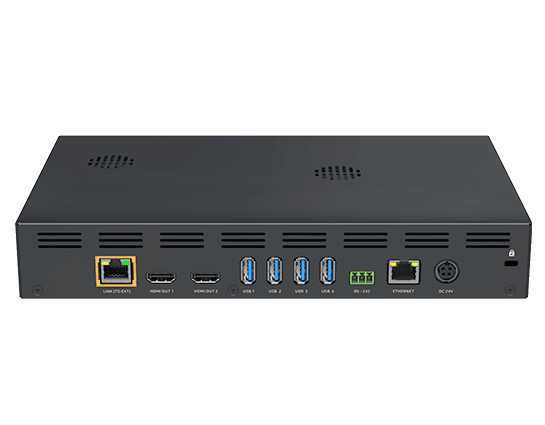

Product Appearance

Specifications

HUB35

Host	Input 1: USB Type-C x 1 (PD Charging, 100W Max.) Input 2: USB Type-C x 1 Input 3: USB Type-B x 1; HDMI x 1 Input 4: USB Type-B x 1; HDMI x 1 USB-C Charging: Yes
USB Devices	Connections: USB Type-A x 4 USB Pass-Through: Yes
HDMI Display Outputs	Output: 2 HDMI Display Output Modes: 2 Audio HDMI: Yes
Video	Resolution: Up to 4K Ultra HD Signal Type: DP Alt Mode, HDMI 2.0 HDMI CEC: Yes Color Space: RGB, YCbCr
Audio	Transmit Mode: Audio Pass-Through from Input to Output Format: HDMI 2.0
Control Interfaces	Ethernet: 1 RS-232: 1 Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
Link	Range: USB Type-C: 100 m (328 ft.) Medium: CAT6a U/FTP
General	Power Requirement: AC 100 - 240V to DC 24V/7.5A Power Consumption: 152W Powering: External 180W Power Supply Dimensions (W x H x D): 270.0 x 42.4 x 175.0 mm Net Weight: 1.34 (±0.1) Kg Security: Kensington Slot Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80% Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95% Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
LED Indicators	Power/Status LED: - Orange: Standby - Green: Operating - Green (Flashing): Firmware Upgrading USB Type-C Charging/Status LED: - Green: Charging Input 1/2/3/4: - Green: Connected Output 1/2: - Green: Connected
Interfaces	USB Type-A x 4, USB Type-B x 2, USB Type-C x 2, HDMI In x 2, HDMI Out x 2, RJ-45 x 1, LINK (TO EXT) x 1, RS-232 x 1, Power Input x 1, Button x 2 (Power, Reset)
Warranty	5 Years
Package Contents	HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide

EXT35

Host	Input 1: USB Type-C x 1 (PD Charging, 60W Max.) Input 2: USB Type-C x 1 Input 3: USB Type-B x 1 USB-C Charging: Yes
USB Devices	Connections: USB Type-A x 2
Video	Input Resolution: Up to 4K Ultra HD Input Signal Type: DP Alt Mode, USB Type-B Color Space: RGB, YCbCr
Audio	Transmit Mode: Audio Pass-Through from Input to Output Format: HDMI 2.0
General	Power Requirement: AC 100 - 240V to DC 24V/7.5A Power Consumption: 126W Powering: External 180W Power Supply Dimensions (W x H x D): 164.0 x 30.0 x 118.0 mm Net Weight: 0.66 (±0.1) Kg Security: Kensington Slot Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80% Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95% Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
LED Indicators	Power/Status LED: - Orange: Standby - Green: Operating - Green (Flashing): Firmware Upgrading USB Type-C Charging/Status LED: - Green: Charging Input 1/2/3: - Green: Connected
Interfaces	USB Type-A x 2, USB Type-B x1, USB Type-C x 1, LINK x 1, Power Input x 1, Button x 2 (Power, Reset)
Warranty	5 Years
Package Contents	EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable
