EVC170
Full HD Endpoint with a Built-In Meeting Server
- 3D denoiseVideo features
- HDMI x 2 VGAVideo outputs
- HDMI x 2 Line-out (3.5 mm)Audio outputs

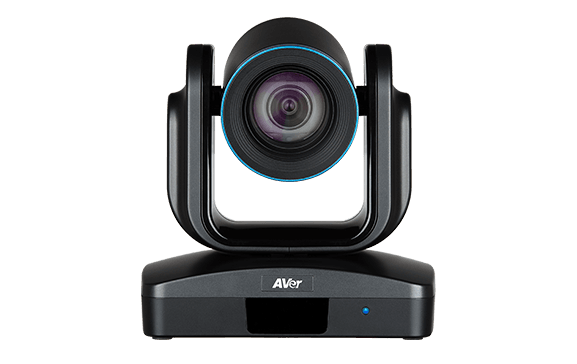

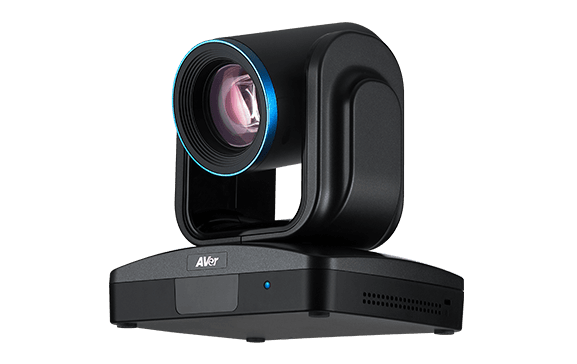

Product views
Overview
The EVC170 delivers the best price–performance ratio in video conferencing. Its built-in meeting server offers optimal unified video communication for medium-to-large meeting rooms.
Focus Your Meeting with AVer SmartFrame
The EVC170 comes with AVer SmartFrame, which maximizes the viewable field with a one-click solution that quickly and effortlessly puts everyone into frame. No more complex settings or time-wasting controls.
Superior Detail from 18X Total Zoom
The EVC170 features superior 18X total zoom, bringing a new level of clarity to video conferencing. Maximize your team's collaboration with the EVC170's simple, easy, and efficient video communication capability.

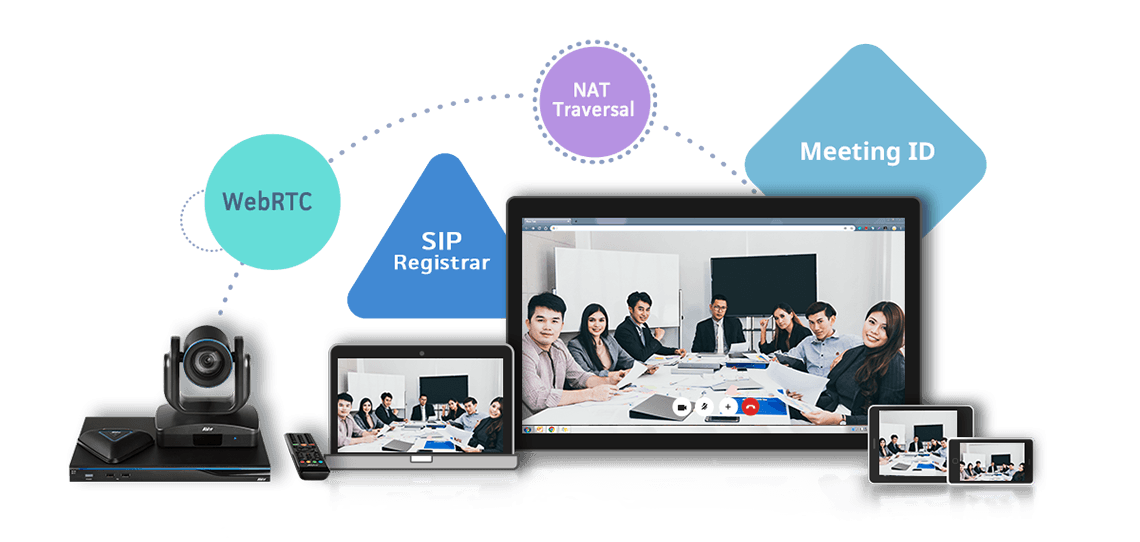

Advancing Video Communication with a Built-In Meeting Server
Equipped with a built-in server, the EVC170 supports NAT Traversal, SIP Registrar, and Meeting ID for full compatibility with SIP and H.323, providing users diverse and easy-to-use collaboration possibilities.
Perfect for Medium-to-Large Meeting Rooms

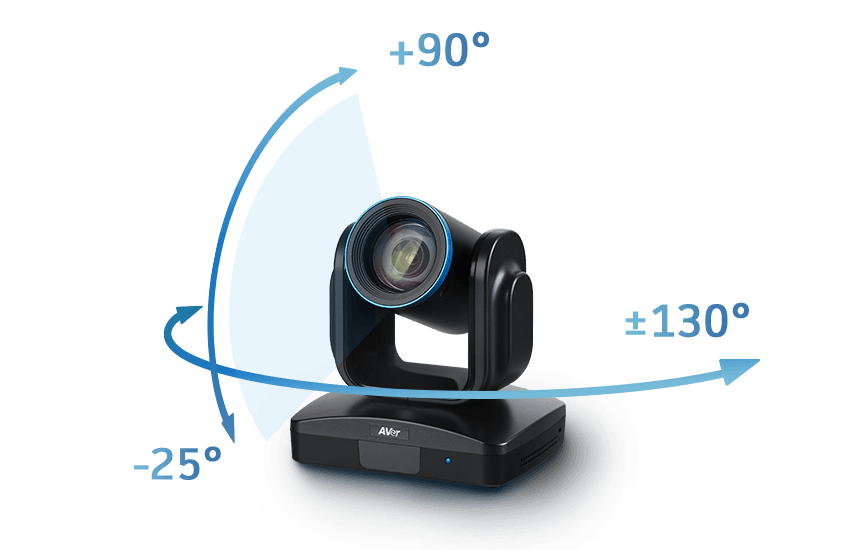

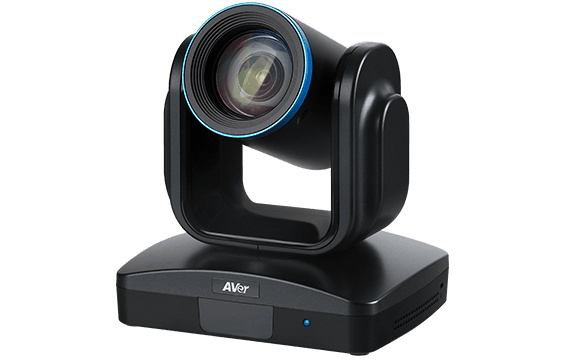

An 82° field of view allows for 7-12 people or more in the meeting room, and the PTZ camera provides flexible motorized ±130° pan and +90°/-25° tilt movement. The EVC170 also supports upside-down mode to solve space limitation problems.
Reliable Video and Outstanding Quality
AVer's quality manufacturing process ensures that the EVC170 is always ready for use. Designed for durability, the EVC170 camera is built to be durable and reliable. With AVer’s industry leading 3+2 years warranty program, we make sure that AVer is always there with the support you deserve.

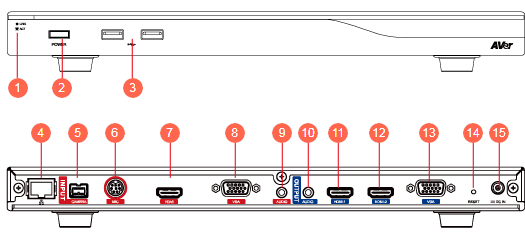

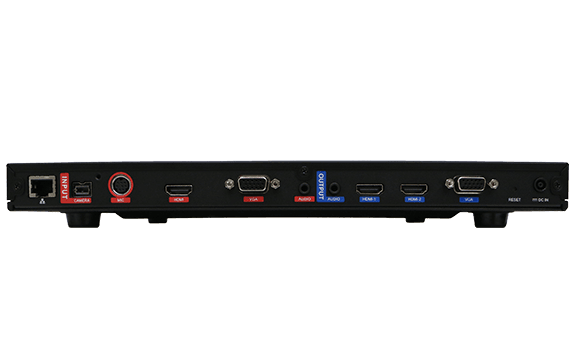

Hardware
- 1
- LED Indicator
- 2
- POWER Button
- 3
- USB Port
- 4
- LAN Port
- 5
- CAMERA in Port
- 6
- MIC in Port
- 7
- HDMI in
- 8
- VGA IN Port
Specifications
Package contents
| Package contents | Main system unit (codec) eCam PTZ IV camera EVC microphone array IR remote control with batteries Power supply Cables Warranty card Quick guide |
|---|---|
| Communications | H.323, SIP standards, SIP TLS Call-Quality bandwidth 64Kbps ~ 8Mbps RJ45 network LAN (10/100/1000) Manual max. bandwidth settings |
| Camera | eCam PTZ IV camera 2-megapixel CMOS sensor 18X total zoom (12X optical + 1.5X digital) ±130° pan; +90°/-25° tilt 72° FOV (H); 43° FOV (V); 82° FOV (diagonal) |
| People video resolutions | HD 1080p (1920 x 1080), up to 60fps HD 720p (1280 x 720) 480p (848 x 480) 4CIF (704 x 576) CIF (352 x 288) SIF (352 x 240) All resolutions at 30fps |
| Content video resolutions | HDMI supported resolutions: 1080p (1920 x 1080) 720p (1280 x 720) D1 (720 x 480) SXGA (1280 x 1024) XGA (1024 x 768) SVGA (800 x 600) VGA (640 x 480) 1080p (1920 x 1080) 720p (1280 x 720) D1 (720 x 480) SXGA (1280 x 1024) XGA (1024 x 768) SVGA (800 x 600) VGA (640 x 480) Output resolutions: Up to HD1080p (1920 x 1080) at 60 fps Up to HD1080p (1920 x 1080) at 60 fps |
| Video standards | H.264, H.264 HP, H.264 SVC, H.263+, H.263 H.239 dual-video streams BFCP content sharing |
| Video features | 3D denoise |
| Video inputs | Main camera eCam PTZ IV HDMI/VGA for presentation |
| Video outputs | HDMI x 2 VGA |
| Audio standards | G.711, G.722, G.722.1, G.728, G.722.1C, AAC-LD, G729 |
| Audio features | Automatic gain control (AGC) Advanced noise reduction (NR) Acoustic echo cancellation (AEC) |
| Audio inputs | EVC microphone daisy chain up to 4 HDMI Line-in (3.5 mm) |
| Audio outputs | HDMI x 2 Line-out (3.5 mm) |
| Other supported standards | H.224, H.225, H.245, H.281, H.323 Annex Q, H.460 RTP, RTCP, H.350, SRTP, H.235, HTTP, HTTPs, Telnet, DHCP, DNS |
| User interface | Single/dual-monitor layout styles User-friendly OSD (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) Display/edit site name |
| Network | 10/100/1000Mbps NAT/firewall traversal (H.460) High Efficiency Lost Packet Recovery (HELPeR™) API support via Telnet Packet Loss Recovery (PLR) Wake-on-LAN (WOL) support IPv4 and IPv6 support Network test Quality of service (QoS) VLAN (802.1Q / 802.1P) EAP 802.1x |
| Security | AES (Advanced Encryption Standard) function (128-bit) and H.235 Password protection for system settings Password protection for remote system management |
| Web management tool | Remote management Live monitoring Firmware update Phonebook download/upload/edit Restore system settings Export call history HTTP and HTTPs |
| Value-added features | Meeting recording In-meeting and offline recording Save directly to USB flash drive Supports screen re-layout during playback Playback and file conversion via VCPlayer software (.MOV and .MP4 format) In-meeting and offline recording Save directly to USB flash drive Supports screen re-layout during playback Playback and file conversion via VCPlayer software (.MOV and .MP4 format) EZMeetup / EZMeetup Plus software/App 30-day for free trial Connect with H.264 and H.264 HP video codecs Receive resolution up to full HD 1080p at 30fps Transmit resolution up to full HD 1080p at 30fps Support content sharing, capturing and recording 30-day for free trial Connect with H.264 and H.264 HP video codecs Receive resolution up to full HD 1080p at 30fps Transmit resolution up to full HD 1080p at 30fps Support content sharing, capturing and recording Dual-monitor support output (video and content sharing) Speed dialing via hot keys (10 sets) Camera presets (100 positions) Firmware updates via USB flash drive Screensaver and auto power-off mode Network Time Protocol (NTP) SnapShot Supports SIP voice calls iSCSI storage device settings Built-in meeting server Supports AVer Register Server (ARS) Far-end Camera Control Meeting ID method |
| Power supply | AC 100V ~240V, 50/60 Hz Consumption: EIAJ 12V, 5A |
| Environmental data | Operation temperature: 0 ~ 40°C Operation humidity: 20 ~ 80% Storage temperature: -20 ~ 60°C Storage humidity: 20 ~ 80% |
| Physical characteristics | Package dimensions: 376 x 300 x 243 mm Package weight: 6.99kg (15.41lbs) Main system (codec): 320 x 262.7 x 37.2 mm eCam PTZ IV: 180 x 144 x 184 mm EVC microphone array: 131.9 x 118.6 x 25.5 mm |
| Optional accessories | Additional microphone Camera mount USB-to-RS232 converter |
| Warranty** | Camera/Codec/Microphone: 3+2 year Accessories: 1 year |
**G.722.1/G.722.1C, licensed from Polycom®
***Please register online to receive a free, 2 year warranty extension. For detailed warranty information, please contact an AVer representative.
