On-Premise Video Conferencing

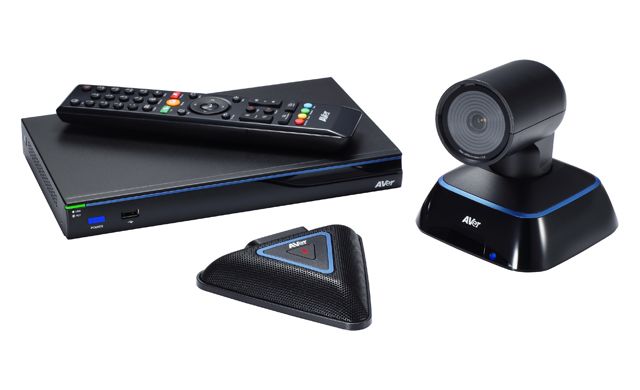

EVC130
On-Premise Video Conferencing System
Overview
The EVC130 is the price-to-performance leader in HD video conferencing for small to medium-scale organizations. Featuring real-time video streaming and content sharing, the compact and versatile EVC130 provides users with exceptional communication experiences and is backed by AVer’s 3+2 Year Extended Warranty Program.
Key Features
- Perfectly suited for small meeting rooms, the EVC130's 88° FOV ensures everyone in attendance is in focus and onscreen
- Wide compatibility with all major legacy video conferencing brands, including Polycom, Tandberg, and Lifesize, and with cloud services through their H.323 bridges
- Simply pick up the remote and dial into your meeting immediately
- Achieve video excellence through smooth audio and video streaming even under the most erratic network conditions with AVer's High Efficiency Lost Pack Recovery (HELPeR™) technology
- Secure conferencing since data doesn't need to go through 3rd party cloud server
- Built-in recording at no extra charge
- Extremely cost effective
Notice:
- Register your product within its valid warranty period (3 years after purchase) to receive a 2-year warranty extension. Please register on AVer’s official product registration page.
- Only products registered within their original warranty period (3 years from purchase date) are eligible for this extension.
- Eligible products will receive the 2-year extension automatically upon successful completion of registration.
- Applicable for end users ONLY.
- This warranty extension is not available in Japan, and only available for EVC and SVC products in the Americas.
Specifications
Package Contents
| Package Contents | Main system unit (codec) EVC eCam camera EVC microphone array IR remote control with batteries Power supply (12V/5A) VGA cable (3M) Power cord (1.8M) Camera cable (3M) Microphone cable (5M) Network cable (3M) HDMI cable (1.5M) Warranty card Quick guide |
|---|---|
| Communications | H.323, SIP and SIP TLS standards 64Kbps~4Mbps RJ45 network LAN (10/100/1000) Manual bandwidth settings |
| Camera | Support for single camera* EVC130 eCam Focus: fixed focus pan/tilt camera 2-megapixel CMOS sensor 4X digital zoom ±100° pan; ±25° tilt Field of view (H): 77° Field of view (V): 45° Field of view (Diagonal): 88° fixed focus pan/tilt camera 2-megapixel CMOS sensor 4X digital zoom ±100° pan; ±25° tilt Field of view (H): 77° Field of view (V): 45° Field of view (Diagonal): 88° |
| People Video Resolutions | HD1080p (1920 x 1080) HD720p (1280 x 720) 480p (848 x 480) 4CIF (704 x 576) 4SIF (704 X 480) 360p (640 X 360) W288p (512 x 288) CIF (352 x 288) SIF (352 X 240) All resolutions at 30fps |
| Content Video Resolutions | Supported Resolutions: WSXGA (1440 x 900) HD (1360 x 768) SXGA (1280 x 1024) SXGA (1280 x 960) WXGA (1280 x 800) XGA (1024 x 768) SVGA (800 x 600) VGA (640 x 480) WSXGA (1440 x 900) HD (1360 x 768) SXGA (1280 x 1024) SXGA (1280 x 960) WXGA (1280 x 800) XGA (1024 x 768) SVGA (800 x 600) VGA (640 x 480) Output Resolutions: HD720p (1280 x 720) up to 30fps HD720p (1280 x 720) up to 30fps |
| Video Standards | H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261 (available with future firmware upgrade) H.239 dual video streams BFCP content sharing |
| Video Inputs | EVC eCam camera VGA |
| Video Outputs | HDMI VGA |
| Audio Standards | G.711, G.722, G.722.1, G.728, G722.1C licensed from Polycom® |
| Audio Features | Automatic gain control (AGC) Advanced noise reduction Acoustic echo cancellation (AEC) |
| Audio Inputs | EVC microphone daisy chain up to 4 Line-in (3.5 mm) |
| Audio Outputs | Digital audio on HDMI cable Line-out (3.5 mm) |
| Other Supported Standards | H.224, H.225, H.245, H.281, H.323 Annex Q, H.460 |
| User Interface | Multiple layout styles User-friendly OSD (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese) Display/edit site name |
| Network | 10/100/1000Mbps NAT/firewall traversal High Efficiency Lost Packet Recovery (HELPeR™) API support via Telnet Wake-on-LAN (WOL) support IPv4 and IPv6 support QoS Network Test |
| Security | AES (Advanced Encryption Standard) function (128-bit) Password protection for system settings Password protection for remote system management |
| Web Management Tool | Remote management through the Web Live monitoring via the web Firmware update via Ethernet/Internet Phonebook download/upload/edit Restore system settings |
| Value-Added Features | Meeting Recording In meeting and offline recording Save directly to USB flash drive Supports screen re-layout during playback Playback and file conversion via VCPlayer software (.mov/.mp4 format) In meeting and offline recording Save directly to USB flash drive Supports screen re-layout during playback Playback and file conversion via VCPlayer software (.mov/.mp4 format) Speed dialing via hot keys (10 sets) camera presets (10 positions) Network Time Portocol (NTP) ScreenShare support VCLink support |
| Power Supply | AC 100V~240V, 50/60Hz Consumption: EIAJ 12V, 4A |
| Environmental Data | Operation temperature: 0°C~40°C Operation humidity: 20%~80% Storage temperature: -20°C~60°C Storage humidity: 20%~80% |
| Physical Characteristics | Package dimensions: 292 x 344 x 472 mm Package weight: 8.1kg Main system (codec): 260 x 158.7 x 33 mm eCam Focus camera: 137.7 x 122.3 x 130 mm EVC microphone array: 131.9 x 118.6 x 25.5 mm |
| Optional Accessories | Additional microphone eCam camera mount Replacement eCam Focus camera |
| Warranty | 3-year standard warranty** |
** Only one camera can be used at a time.
*** Please register online to receive free 2 year warranty extension. For detailed warranty information, please contact an AVer local representative.
