Distance Learning Cameras

DL30

Distance Learning Tracking Camera

Boost Your Distance Learning with Auto Tracking

  • 1/2.8' 1080p Low Lux CMOSImage sensor
  • 2 MegapixelsEffective Picture Elements
  • > 50 dBS/N Ratio
Request a quoteWhatsAppContact

Overview

When distance learning and hybrid classrooms are the new normal, the AVer DL30 is a must-have solution for online education. With the DL30 connected to a laptop, you can present freely onstage while livestreaming so students can learn no matter where they are. Teachers don’t need to be camera shy anymore—they can just be themselves and teach how they want thanks to the DL30 tracking camera!

Perfect for Online & Offline Education

Simple controls and plug-and-play connectivity are the biggest advantages of the DL30, which is ideal for installing in every classroom. Students tuned in remotely and those present in the classroom can see each other and learn together like they would if they were in the same room. Enhance student engagement and interaction, and easily create distance learning and hybrid learning environments.

dl30

12X Optical Zoom

The DL30 is equipped with a 12X optical zoom that operates smoothly without distorting the image. It clearly presents the classroom blackboard panorama and medium, close-up, and long-distance shots of the teacher, providing stable shooting capability while maintaining detailed quality. With the DL30 running the show, teachers no longer need to suppress their creativity in hybrid environments!

dl30
1X
dl30
12X

AI-Powered Human Detection

AVer’s renowned Human Detection automatically recognizes human forms in the classroom and dynamically tracks specific targets or areas via multiple tracking modes. The target doesn’t need to wear any devices or sensors to maintain tracking. Even far-site students can clearly follow the teacher’s every move.

dl30
dl30
dl30

Presenter Mode

Superb tracking and anti-interference functions allow teachers to move freely in the classroom. Instructors can adjust the tracking settings, stream, and record to make their teaching more substantive and vivid. To change the tracking target, users can simply click one button on the remote control.

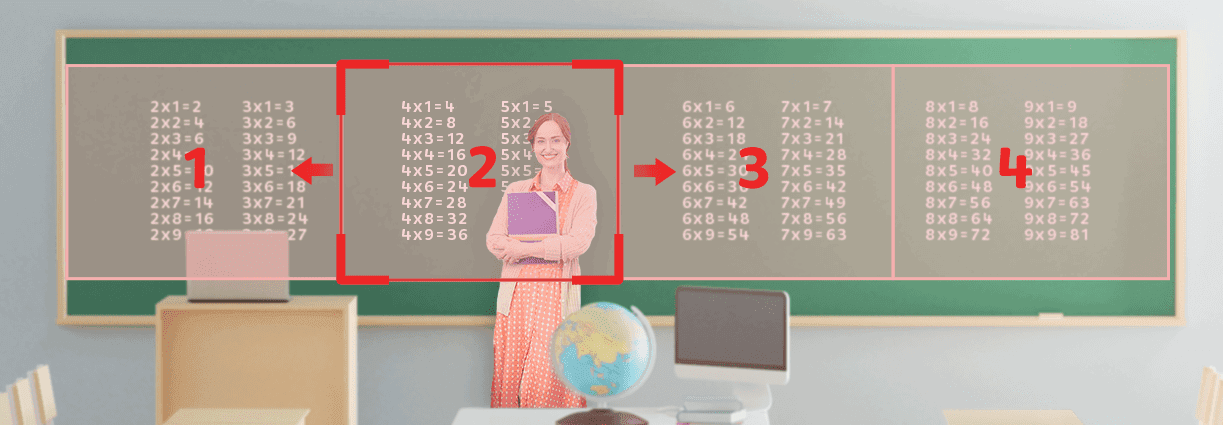

Zone Mode

Accurate segmented tracking clearly shows content on the blackboard or screen, automatically switching the tracking area according to the teacher's position. Content and the presenter are displayed at the same time so students can understand notes for key points at a glance.

dl30

Package Content

  1. DL30
    DL30
  2. Remote Control
    0412S511-AR9
    Remote Control
  3. Power Adapter
    04131EGOWARF 04131EGOWAS3
    Power Adapter
  4. Power Cord
    064APOWERCBX (EU) 064APOWERA5E (US) 064APOWERA5P (UK) 064APOWERA5W (AU)
    Power Cord
  5. USB Cable
    064AUSBCF7
    USB Cable
  6. Cable-Fixing Plate
    112AS500-A4P
    Cable-Fixing Plate
  7. M2 x 4 mm Screws (X2)
    100AAAAAAAF3
    M2 x 4 mm Screws (X2)
  8. Cable Ties (X4)
    208AALLACH
    Cable Ties (X4)
  9. 1/4“-20L 7.5 mm Screw (X1)
    100AAAAAAAM5
    1/4“-20L 7.5 mm Screw (X1)
  10. Quick Start Guide
    300AS900-EKR 8L QG V2
    Quick Start Guide

Optional Accessories

Wall-Mount Kit

  • Brackets (x2)
    Brackets (x2) 60S5000000AC
  • M4 x 8 mm Screws (X2)
    M4 x 8 mm Screws (X2)
  • 1/4“-20L 7.5 mm Screw (X1)
    1/4“-20L 7.5 mm Screw (X1)
  • Installation Guide
    Installation Guide

Ceiling-Mount Kit

  • Brackets (X2)
    Brackets (X2) 60S5000000AB
  • M3 x 6 mm Screws (X3)
    M3 x 6 mm Screws (X3)
  • 1/4'-20L 7.5 mm Screw (X3)
    1/4'-20L 7.5 mm Screw (X3)
  • Installation Guide
    Installation Guide

USB cable

  • USB 3.1 A to A cable (30m) **
    USB 3.1 A to A cable (30m) ** 064AUSBCDS
  • USB 3.1 A to A cable (20m) **
    USB 3.1 A to A cable (20m) ** 064AUSBCC6
  • USB 3.1 A to A cable (10m) **
    USB 3.1 A to A cable (10m) ** 064AUSBCC5
  • ** AVer USB3.0 extender only supports USB3.0 port of PC. It's not compatible with USB2.0.

Specifications

Camera
Image sensor1/2.8' 1080p Low Lux CMOS
Effective Picture Elements2 Megapixels
Output Resolution1080p/60 (IP Streaming & USB)
Minimum Illumination0.5 Lux (IRE50, F1.6, 30fps)
S/N Ratio> 50 dB
GainAuto, Manual
TV Line800 (Center), 600 (Corner)
Shutter Speed1/4 to 1/10,000 sec (60 Hz)
1/3 to 1/10,000 sec (50 Hz)
Exposure ControlAuto, Manual, WDR
WDRYes
White BalanceAuto, Manual
Optical Zoom12X
Digital Zoom2X
Viewing AnglesDFOV : 84.1° (Wide) to 7.8° (Tele)
HFOV : 76.5° (Wide) to 6.8° (Tele)
VFOV : 47.3° (Wide) to 3.8° (Tele)
Focal lengthf = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance0.3 m (Wide), 1.5 m (Tele)
Pan / Tilt AnglesPan : ±170°, Tilt : ±90°
Pan / Tilt Speed (Manual)Pan: 1° to 90°/sec
Tilt: 7.85° to 45°/sec
Preset SpeedPan : 120° / sec, Tilt : 110.84° / sec
Preset Positions10 (IR), 256 (IP & USB)
Camera Control - InterfaceIP, USB
Camera Control - ProtocolVISCA (IP), CGI (IP), USB
Image ProcessingNoise Reduction (2D/3D), Flip, Mirror, WDR
Power Frequency50Hz / 60Hz
AI Auto Tracking Functions
Tracking ModesPresenter Mode, Zone Mode, Hybrid Mode
Privacy Protection Mechanisms
Protection ModesPrivacy Mode, Sleep Mode
Audio
Channels2ch (Stereo)
CodecsAAC, PCM
Sample RateAAC (48, 32, 16, 8 KHz), PCM (48 KHz)
Interface
Video OutputsIP, USB
Audio OutputsIP, USB
Audio InputsMic in, Line in
General
Power RequirementAC 110–220V to DC 12V/2A
Power Consumption12W
PoEPoE+
Dimensions (W x H x D)158.8 x 200.0 x 162.2 mm
Net Weight1.62 (±0.1) kg
ApplicationIndoor
Tally LampN/A
SecurityKensington Slot
Remote ControlInfrared
Operating ConditionTemperature: 0°C to 40°C
Humidity: 20% to 80%
Storage ConditionTemperature: -20°C to 60°C
Humidity: 20% to 95%
IP Streaming
Resolution1080p 60fps
Network Video Compress FormatsH.264, MJPEG (Web Page)
Network Audio Compression FormatsAAC
Sample Rates48, 32, 16, 8 KHz
Maximum Frame Rate1080p 60fps
Bit-rate Control ModesVBR, CBR
Range of Bit-rate setting512 Kbps to 32 Mbps
Network Interface10/100 Base-T
Multi-stream Capability2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
Network ProtocolIPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI®|HX CapabilityN/A
USB
ConnectorUSB 3.1 Gen 1 Type-B
Video FormatsMJPEG, YUY2
Maximum Video Resolution1080p
USB Video Class (UVC)UVC1.1
USB Audio Class (UAC)UAC1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan / Tilt / Zoom / Focus / Preset Control
Camera / Image AdjustmentExposure / White Balance / Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration ToolSupports Windows® 7 or later
Enterprise Management (PTZ Management)Supports Windows® 10 or later
PTZ Control PanelSupports iOS & iPadOS® 9 or later
CaptureShareSupports Windows® 7 or later, macOS® 10.14 or later
PTZ LinkSupports Windows® 7 or later, macOS® 10.14 or later
Warranty
Camera3 Years
Accessories1 Year
Package ContentsCamera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x4), Cable Fixing Plate (x1), M2 x 4mm Screws (x2), 1/4'-20L 7.5mm Screw (x1), Quick Start Guide
Optional AccessoriesWall Mount Kit (Brackets (x2), M4 x 8mm Screws (x2), 1/4'-20L 7.5mm, Screw (x1), Wall Mount Kit Installation Guide), Ceiling Mount Kit (Brackets (x2), M3 x 6mm Screws (x3), 1/4'-20L 7.5mm, Screws (x3), Ceiling Mount Kit Installation Guide)
