Distance Learning Cameras

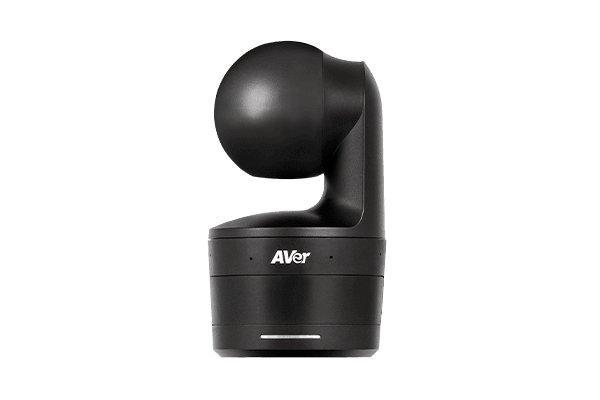

DL10

Distance Learning Tracking Camera

Track Further, Learn Bigger

  • 1/2.8' 1080p Low Lux CMOSImage Sensor
  • 2 MegapixelsEffective Picture Elements
  • ≥ 50 dBS/N Ratio
Request a quoteWhatsAppContact

Overview

Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.

dl10

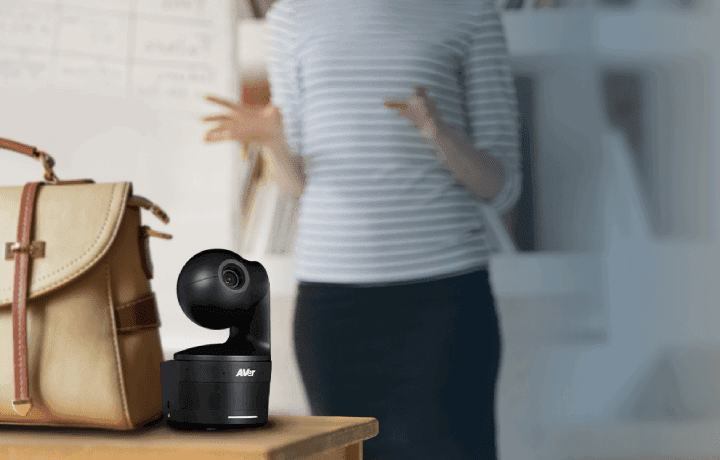

Light-Weight & Portable

The DL10 weighs only 760g, giving teachers freedom to take work anywhere - just place the DL10 directly on the desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance teaching anytime, anywhere.

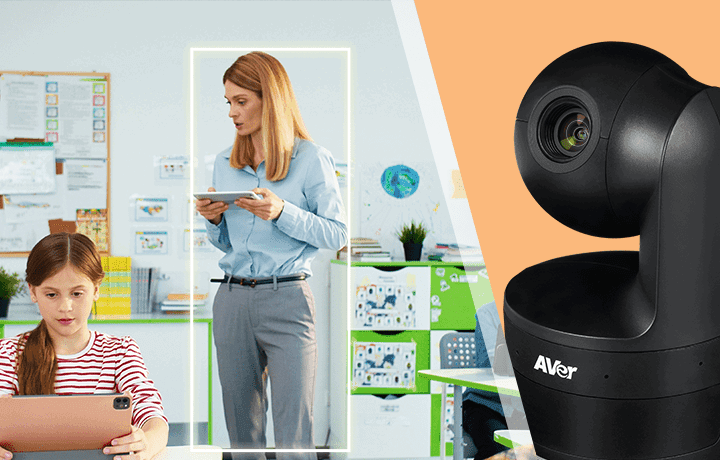

AI Auto Tracking

Equipped with industry leading AI auto-tracking algorithms, the DL10 can share the teacher’s every move with the students. The DL10’s AI does all the tracking work, without requiring any annoying add-on sensors or devices. Never worry about walking out of the frame or going out of focus again, remote students can see you on the screen wherever you go.

dl10
dl10

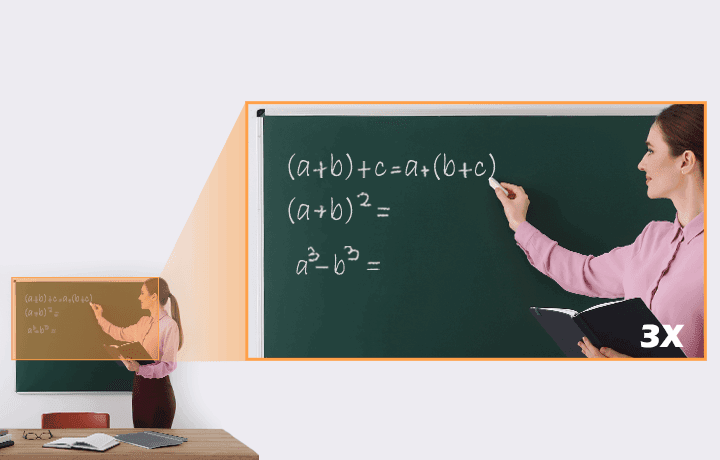

Balanced Zoom Ratio

With budget in mind for schools, the DL10 is the perfect solution: 3X optical zoom delivers clear details, and 6X total zoom ratio is perfect for online or hybrid teaching in any standard K-12 classroom or at home.

Noise Suppression Microphones

The DL10’s built in advanced noise suppression technology detects the teacher’s speech while decreasing environmental noises such as keyboards, mouses, and books, delivers clearer sound quality for an excellent audio visual experience.

dl10

Sleep Mode for Privacy

Simply turn off your laptop or the software when you finish teaching, and the DL10 will go to Sleep Mode and switch off all functionality within 10 seconds. When it’s time to start teaching again, the DL10 will resume right where you left off with tracking and other settings unchanged. The DL10 makes privacy protection the way it should be: easy.

dl10

Innovative Gesture Controls

Gesture control allows the teacher to use intuitive gestures to turn on and off tracking, adjust shooting angles for bodies, etc. without touching the screen or using the keyboard, mouse, or remote control.

Tracking On!

Hardware

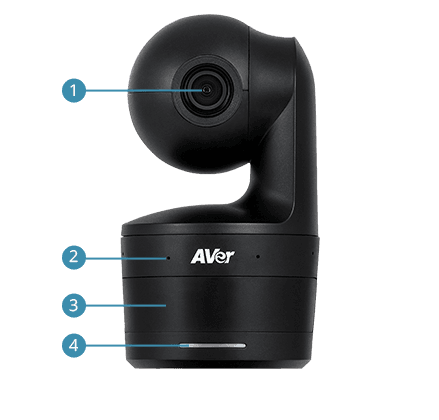

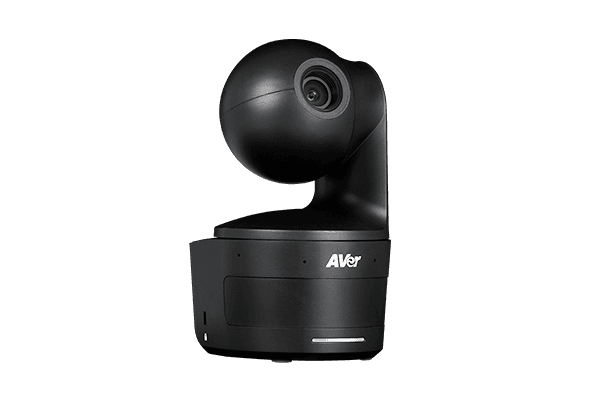

DL10 Front
1
Camera Lens
2
Built-In Mics
3
IR Sensor
4
LED Indicator

Package Content

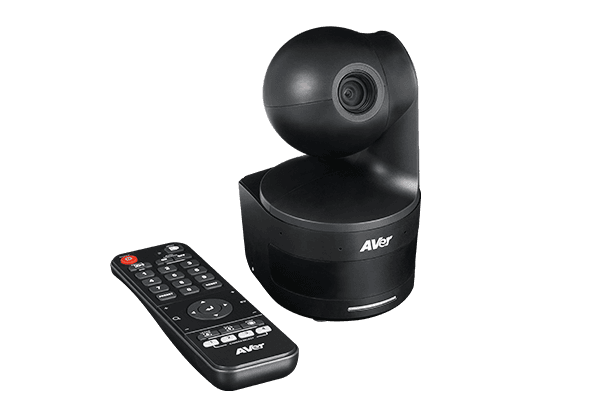

  1. DL10
    DL10
  2. Remote Control
    0412S511-AR9
    Remote Control
  3. Power Adapter
    04131EGOWARF
    Power Adapter
  4. Power Cord
    064APOWERCBX (EU) 064APOWERA5E (US) 064APOWERA5P (UK) 064APOWERA5W (AU)
    Power Cord
  5. USB Cable
    064AUSBCF7
    USB Cable
  6. Cable-Fixing Plate
    112AS500-A4P
    Cable-Fixing Plate
  7. M2 x 4 mm Screws (X2)
    100AAAAAAAF3
    M2 x 4 mm Screws (X2)
  8. Cable Ties (X4)
    208AALLACH
    Cable Ties (X4)
  9. 1/4“-20L 7.5 mm Screw (X1)
    100AAAAAAAM5
    1/4“-20L 7.5 mm Screw (X1)
  10. Quick Start Guide
    300AS900-EKR 8L QG V2
    Quick Start Guide

Optional Accessories

Wall-Mount Kit

  • Brackets (x2)
    Brackets (x2) 60S5000000AC
  • M4 x 8 mm Screws (X2)
    M4 x 8 mm Screws (X2)
  • 1/4“-20L 7.5 mm Screw (X1)
    1/4“-20L 7.5 mm Screw (X1)
  • Installation Guide
    Installation Guide

Ceiling-Mount Kit

  • Brackets (X2)
    Brackets (X2) 60S5000000AB
  • M3 x 6 mm Screws (X3)
    M3 x 6 mm Screws (X3)
  • 1/4'-20L 7.5 mm Screw (X3)
    1/4'-20L 7.5 mm Screw (X3)
  • Installation Guide
    Installation Guide

Others

  • USB 3.1 A to A cable (10m) **
    USB 3.1 A to A cable (10m) ** 064AUSB--CC5​
  • USB 3.1 A to A cable (20m) **
    USB 3.1 A to A cable (20m) ** 064AUSB--CC6​
  • USB 3.1 A to A cable (30m) **
    USB 3.1 A to A cable (30m) ** 064AUSB--CDS​
  • Tripod
    Tripod 60U3600000AB
  • ** AVer USB3.0 extender only supports USB3.0 port of PC. It's not compatible with USB2.0.

Specifications

Camera
Image Sensor1/2.8' 1080p Low Lux CMOS
Effective Picture Elements2 Megapixels
Output Resolutions1080p/60 (IP Streaming & USB)
Minimum Illumination0.5 Lux (IRE50, F2.0, 30fps)
S/N Ratio≥ 50 dB
GainAuto, Manual
TV Lines800 (Center/Wide)
Shutter Speed1/4 to 1/10,000 sec (60 Hz)
1/3 to 1/10,000 sec (50 Hz)
Exposure ControlAuto, Manual, WDR
WDRYes
White BalanceAuto, Manual
Optical Zoom3X
Digital Zoom2X
Viewing AnglesDFOV: 90° (Wide) to 35.8° (Tele)
HFOV: 82° (Wide) to 31.7° (Tele)
VFOV: 51° (Wide) to 17.9° (Tele)
Focal lengthf = 3.3 mm (Wide) to 9.7 mm (Tele)
Aperture (Iris)F = 2.0 (Wide) to 3.7 (Tele)
Minimum Working Distance0.5 m (Wide), 1.0 m (Tele)
Pan/Tilt AnglesPan : ±170°, Tilt : ±90°
Pan/Tilt Speed (Manual)Pan: 1° to 100°/sec
Tilt: 10.8° to 100°/sec
Preset SpeedPan : 200°/sec, Tilt : 200°/sec
Preset Positions10 (IR), 256 (IP & USB)
Camera Control - InterfacesIP, USB
Camera Control - ProtocolsVISCA (IP), CGI (IP), USB
Image ProcessingNoise Reduction (2D/3D), Flip, Mirror, WDR
Power Frequencies50 Hz, 60 Hz
AI Auto Tracking Functions
Tracking ModesPresenter Mode, Zone Mode, Hybrid Mode
Gesture ControlYes (Tracking On/Off, Full/Upper Body)
Privacy Protection Mechanisms
Protection ModesPrivacy Mode, Sleep Mode
Audio
ChannelsLine in: 2ch Stereo
Mic in: Mono
CodecsAAC-LC (48, 32, 16, 8K), PCM (48K)
Sample Rates48, 32, 16, 8 KHz
Microphones
Built-in Microphones2 (Omnidirectional)
Noise SuppressionYes
Pickup Range5 m
Sensitivity-33 dBFS
Frequency Response30 Hz to 20 KHz
Maximum SPL129 dB SPL at 0.5 m

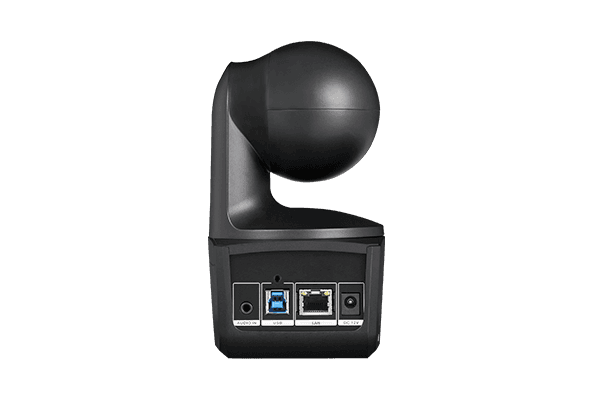

Interface
Video OutputsIP, USB
Audio OutputsIP, USB
Audio InputsLine in, Mic in
General
Power RequirementAC 100 - 240V to DC 12V/2A
Power Consumption11W
PoE+N/A
Dimensions (W x H x D)92.4 x 164.0 x 94.4 mm
Net Weight0.76 kg
ApplicationIndoor
Tally LampN/A
SecurityKensington Slot
Remote ControlInfrared
Operating ConditionsTemperature: 0°C to 40°C
Humidity: 20% to 80%
Storage ConditionsTemperature: -20°C to 60°C
Humidity: 20% to 95%
IP Streaming
Resolution1080p 60fps
Network Video Compress FormatsH.264, MJPEG (Web Page)
Network Audio Compression FormatsAAC-LC
Sample Rates48, 32, 16, 8 KHz
Maximum Frame Rate1080p 60fps
Bit-Rate Control ModesVBR, CBR
Bit-Rate Range Setting512 Kbps to 32 Mbps
Network Interface10/100 Base-T
Multi-Stream Capability2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
Network ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
NDI®|HX CapabilityN/A
USB
ConnectorUSB 3.1 Gen 1 Type-B
Video FormatsMJPEG, YUY2
Maximum Video Resolution1080p
USB Video Class (UVC)UVC 1.1
USB Audio Class (UAC)UAC 1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan, Tilt, Zoom, Focus, Preset Control
Camera / Image AdjustmentExposure, White Balance, Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration ToolSupports Windows® 7 or later
Enterprise Management (PTZ Management)Supports Windows® 10 or later
PTZ Control PanelSupports iOS & iPadOS® 9 or later
OBS Plugin for PTZ CamerasSupports Windows® 8 or later, macOS® 10.13 or later
CaptureShareSupports Windows® 7 or later, macOS® 10.14 or later
Warranty
Camera3 Years
Accessories1 Year
Package ContentsCamera
Remote Control
Power Adapter
Power Cord
USB Cable
Cable Ties (x3)
Cable Fixing Plate
M2 x 4mm Screws (x2)
1/4'-20L 7.5mm Screw (x1)
Quick Start Guide
Optional AccessoriesWall Mount Kit Brackets (x2) M4 x 8mm Screws (x2) 1/4'-20L 7.5mm Screw (x1) Wall Mount Kit Installation Guide
Ceiling Mount Kit Brackets (x2) M3 x 6mm Screws (x3) 1/4'-20 L7.5mm Screws (x3) Ceiling Mount Kit Installation Guide
Tripod
