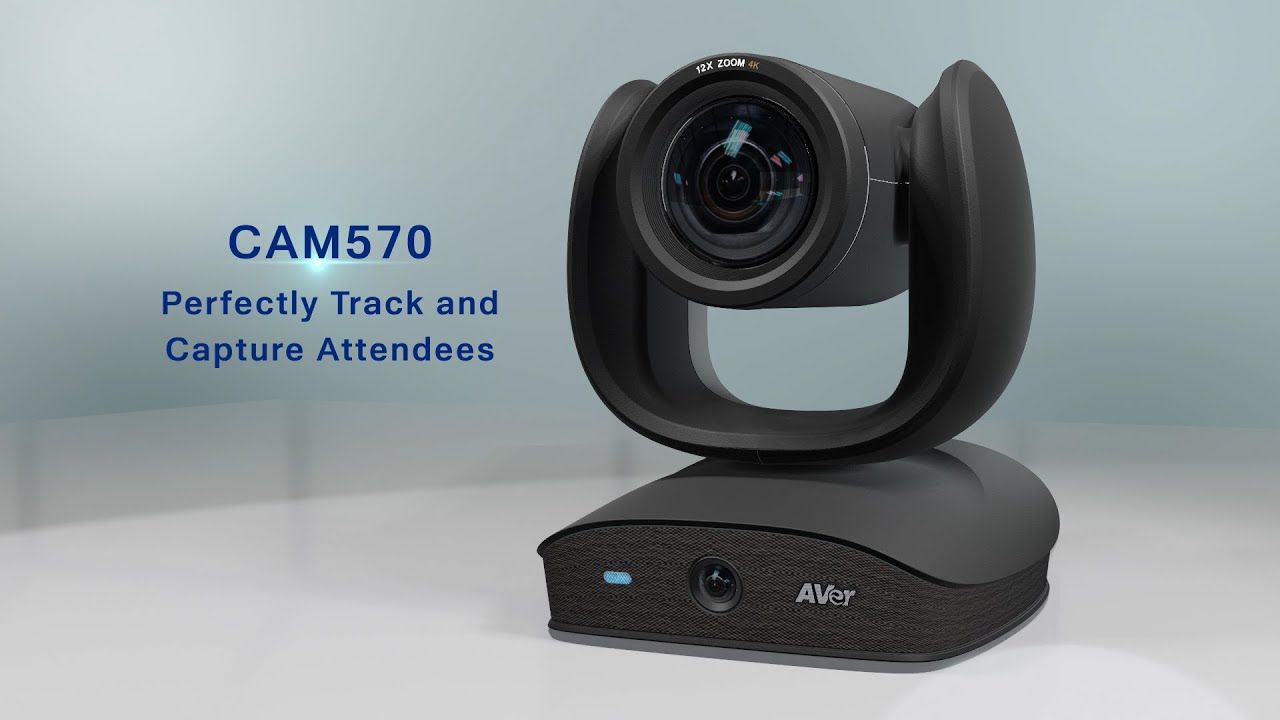

USB Video Conferencing
CAM570
4K Dual Lens Audio Tracking Camera for Medium and Large Rooms
Perfectly Track and Capture Attendees

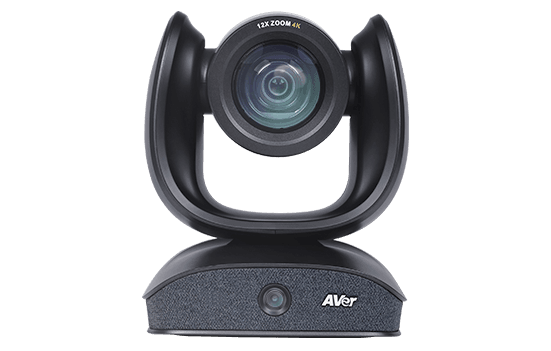

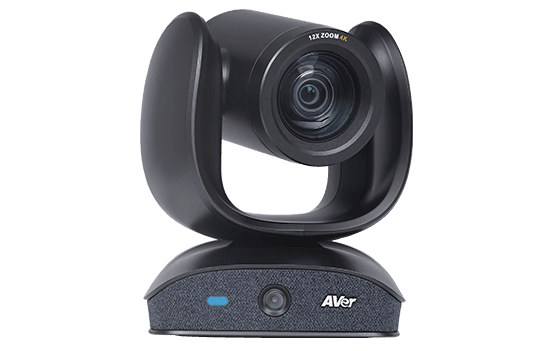

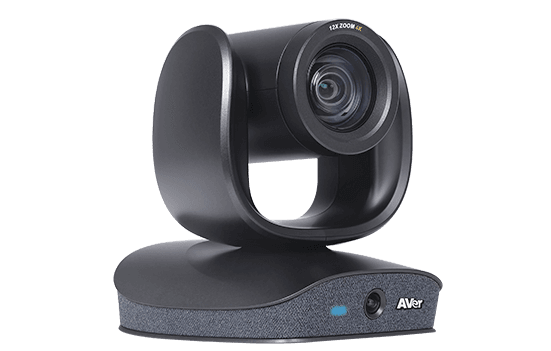

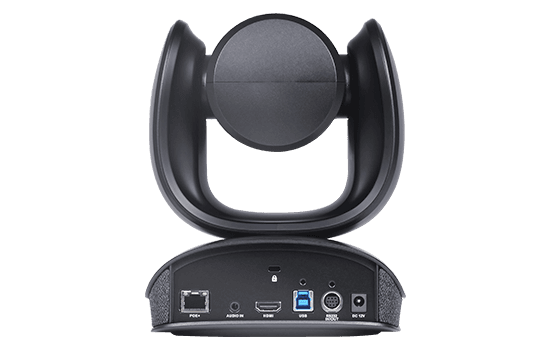

Product views
Overview
AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.
Built-in Audio Sensor Enables Audio Tracking
Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.
Dynamic Detection Optimizes Meeting Experience
The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.

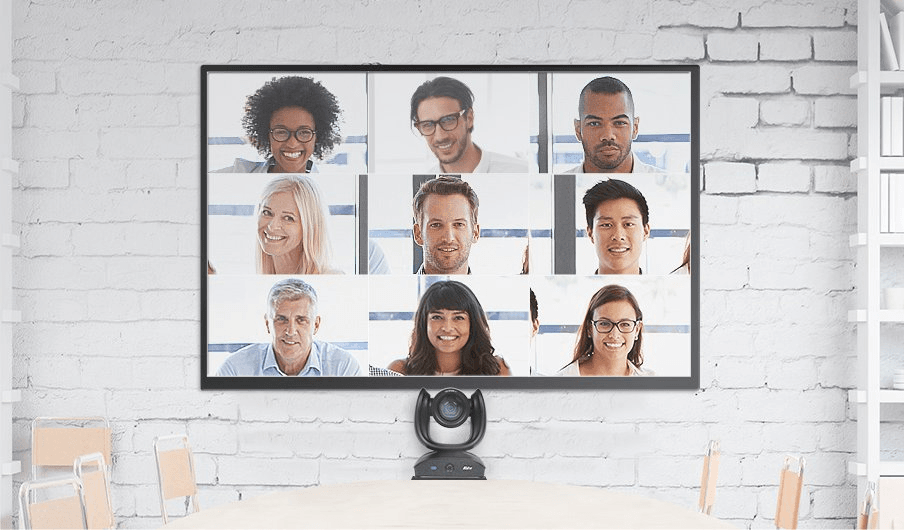

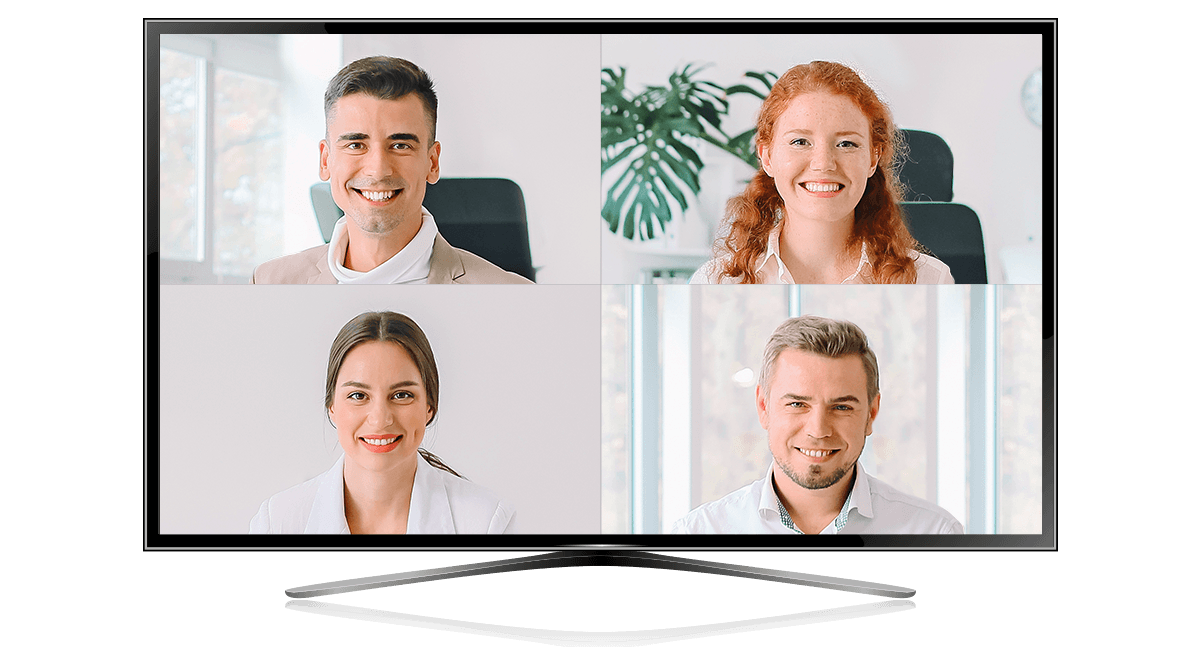

Smart Gallery Delivers a Clearer View of Faces
Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.
Interact with CAM570 Using Touchless Gesture Control
With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.
Picture-in-Picture Displays Preferred Conference View
CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.
Accurate Attendee Capture with AVer Smart Composition – No Installation Required
The CAM570 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant's face or body perfectly. It's a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM570, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.
Smart ViewShift Reduces Movement Sensitivity
The CAM570 has just become even smarter with the latest firmware upgrade! The new Smart ViewShift function is designed to enhance your video conferencing experience by reducing movement sensitivity during audio tracking. With various transition effects, the camera smoothly shifts focus to the target person, providing remote participants with a more comfortable and stress-free call experience. Say goodbye to jarring movements and hello to seamless transitions.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

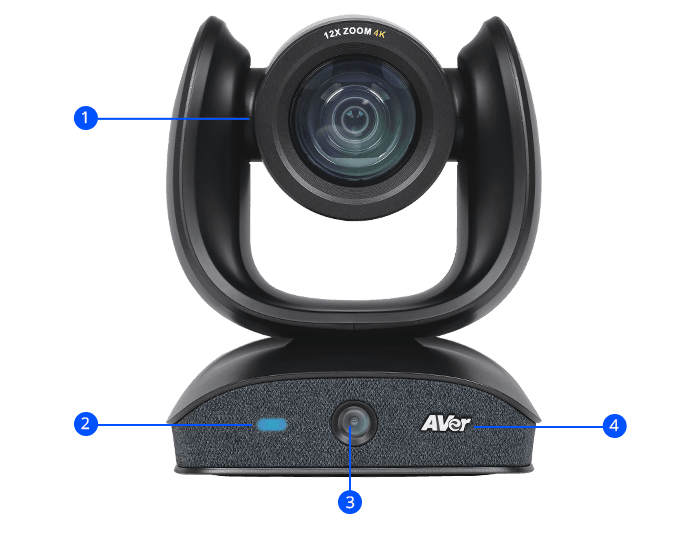

Product Overview
- 1
- PTZ lens: 12X optical zoom
- 2
- LED indicator
- 3
- AI lens
- 4
- IR sensor
- 5
- LAN for IP streaming and Power over Ethernet (PoE)
- 6
- 3.5mm Audio-in
- 7
- HDMI out
- 8
- USB 3.1 type-B
- 9
- RS-232 in/out
- 10
- DC 12V
- 11
- Kensington lock
Package Content
-
CAM570
-
064AUSBCDD USB 3.1 Type-B to Type-A Cable (3m)
-
064AOTHERCGR Mini DIN 9 to mini DIN 8 RS232 Adapter
-
412U340-ASB Remote Control
-
112AU340-A6B*1 112AU340-A6C*1 100AAAAAAAMD*2 Wall Mount
-
Tripod Screws
-
04131EGOQAS7 Power Adapter
-
041399ECQAVB (EU AC Plug) 041399UGQAVE (UK AC Plug) 041399NHQAVF (AU AC Plug) 041399FAQAS9 (US AC Plug) Plug
-
064AHDMI-CGC HDMI cable
Optional Accessories
-
61U6100000AC(EU/UK) 61U6100000AB(USA) 61U6100000AC(India) 61U6100000AG(AU) 61U6100000AD(TW) 61U6100000AF(KR) FONE540
-
112AU301-A72 Ceiling Mount
-
064AUSB--CRF USB 2.0 Type-B to Type-A Cable, 5m
-
064AUSB−−CC5 10 m USB 3.1 Extension Cable
-
064AUSB−−CC6 20 m USB 3.1 Extension Cable
-
064AUSB−−CDS 30 m USB 3.1 Extension Cable
-
1-Port POE+ Injector
-
60V2C10000A7 Foldable TV Mount
-
064AOTHERCGN Mini DIN 8 to D-Sub 9 RS232 Cable
Specifications
Dual Camera
| PTZ optical zoom lens | Image Sensor: 1/2.8” 4K Sony Exmor CMOS Frame Rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps 36X Zoom*: 12X optical; 3X digital zoom Viewing Angles: DFOV 90°; HFOV 78°; VFOV 50° Lens Focal Length: 3.4mm (Wide) ~ 40.3mm (Tele) Lens F#: 1.8 (Wide) ~ 3.6 (Tele) Wide Dynamic Range (WDR): Superb backlight compensation Minimum Focus Distance: 1.5 m Viewing Area: Pan: ±170°; Tilt: +90° (up) / -30° (down) Preset Positions: 10 via IR remote, 128 via RS-232 Image flip and image mirror |
|---|---|
| Secondary fixed lens (AI lens) | Image Sensor: 1/2.5” 4K Sony Exmor CMOS Frame rates and resolution set according to PTZ lens settings Wide field of view: DFOV 95°; HFOV 82°; VFOV 52° People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage |
| Notes | *Please use Room Management (PTZApp 2) to set up 36X zoom *Please don't put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor. *When the resolution is set to 4K or the frame rate to 60fps, features including PIP, Image Flip, Image Mirror, and OSD (On Screen Display) Setting will be disabled automatically. |
Innovative Features
| Innovative Features | SmartSpeaker: Automatically track human voice and focus on the speaker Dynamic Detection: Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants Presentation Tracking: Voice-triggered tracking speaker with both preset area and people tracking Simultaneous 3-way Output: USB, HDMI and IP connections Gesture Control provides intuitive camera controls Smart Gallery offers great visibility for individual participant in the meeting room Streaming Technology: One RJ-45 cable transfers IP streaming to USB Audio Tracking: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yamaha) via AVer Preset Link* function. * Make sure preset areas are within AI lens' view. ** Please download Room Management (PTZApp 2) to set up Smart gallery, USB virtual streaming and Preset Link functionality *** While CAM570 already offers audio tracking function, we still integrate with 3rd party ceiling microphone for more audio tracking settings via the Room Management (PTZApp 2) on PC. |
|---|---|
| Connectivity | USB type-B 3.1 connector, backward compatible with USB 2.0 12V/2A DC jack power adapter Type Non-B Mini DIN 9 for RS-232 in & out connection (VISCA control panel and camera daisy-chain) IP (RJ-45) HDMI Audio in* (1Vrms input) *To avoid tracking the speakerphone, please insert speakerphone's Line-out to CAM570's Line-in port. |
| Audio Sensor | Audio pick-up range: 10m, ±60° 3 pairs of sensor, each composed of 4 sensors * The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software. |
| Package Contents | CAM570 Power Adapter (10 ft/3 m) USB 3.1 Type-B to Type-A Cable (3 m) Remote Control Mini DIN9 to mini DIN8 RS-232 Adapter Cable HDMI Cable (3 m) Wall Mount Bracket and Screws Tripod Screw Drill Paper |
| HDMI & PoE | HDMI 1.3: 1080p 30fps/ 60fps PoE+: 802.3at |
| Video Format | YUV, YUY2, MJPEG Network video compression format: H.264 Network protocol: RTSP, RTMP |
| USB | 3.1 Gen 1, backward compatible with USB 2.0 UVC 1.1 (USB video) |
| Control | IR remote control VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command) Remote side: VISCA over IP, IP (RJ-45) UVC plug and play WebUI: Browser IP access via Chrome. (Not support IE) OSD setting: HDMI out to TV monitor Room Management (PTZApp 2) |
| Power Supply | AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A PoE+: 802.3 at |
Software Tools
| Room Management (PTZApp 2) | Supports Windows® 7 or later, macOS® 11.6 or later |
|---|---|
| Enterprise Management (PTZ Management) | Supports Windows® 10 or later |
| Cloud Management | Supports Chrome™ & Microsoft Edge browsers |
| EZManager 2 | Supports Windows® 7 or later |
| EZLive | Supports Windows® 7 or later |
Environment Data
| Environment Data | Operation temperature: 0 to 40°C Operation humidity: 20% to 80% Storage temperature: -20 to 60°C Storage humidity: 20% to 80% |
|---|---|
| Dimensions | Package dimensions: 253(L)*253(W)*271(H) mm Package weight: 4.8KG Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg Remote control: 200 x 50 x 21mm/90g |
| Optional Accessories | FONE540 Mini DIN 8 to D-Sub 9 RS-232 Cable Ceiling Mount Foldable TV Mount USB 2.0 Type-B to Type-A Cable (5 m) USB 3.1 Extension Cable (10 m/20 m/30 m) 1-Port POE+ Injector |
| Security and Mount | Kensington Lock 1/4' Tripod Mounting Screw Wall-mount Bracket Foldable TV Mount (Optional) Ceiling Mount (Optional) |
| System Requirements | Windows® 7/10/11 Mac OS X 10.14 or later Chromebox 3 version 94.0.4606.114 or later |
| Hardware Specs | 3.2 GHz Intel® Core™ i5-4460 processor 4 GB RAM or more USB 3.1 port, backward compatible with USB 2.0 |
| Warranty | Camera: 3 years* Accessories: 1 year * We offer an optional 2-year extended warranty in the European area. |
| Compatible Applications | Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, VidyoConnect™, vMix, WebRTC, Wirecast, XSplit *For 4K UHD support, please check system/hardware requirements with your software application provider. **Specifications may vary depending on countries and are subject to change without notice. |
Please use Room Management (PTZApp 2) to set up 36X zoom, Smart Gallery, USB Virtual Streaming, and Preset Link functionality.
