Medical Grade Cameras

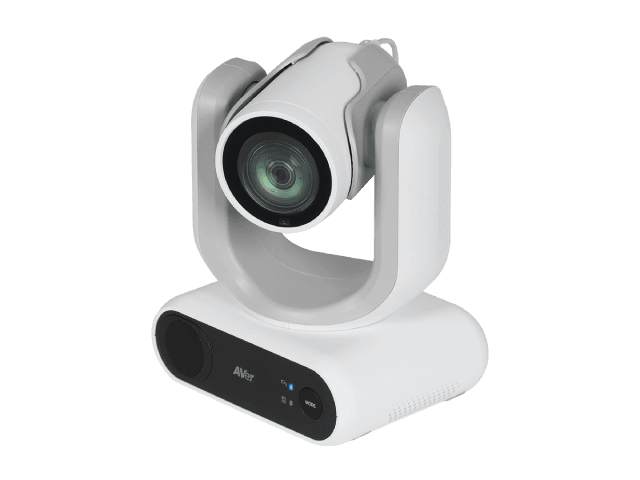

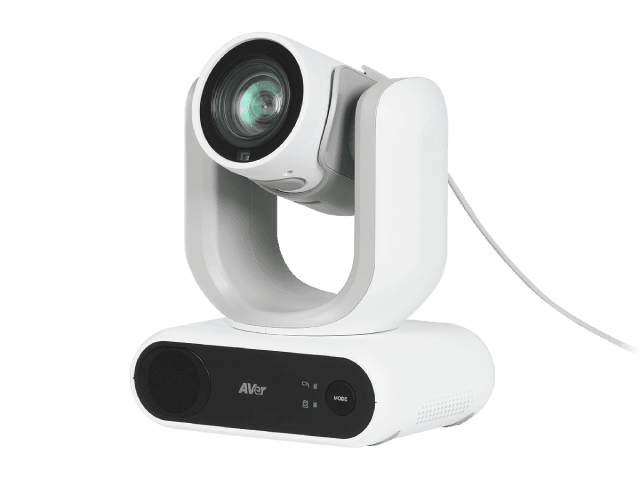

MD330UI
Medical Grade PTZ Camera
Caring Without Limits
- 1/2.8' 4K Exmor CMOSImage Sensor
- 8 MegapixelsEffective Picture Elements
- ≥ 50 dBS/N Ratio
Product views
Overview

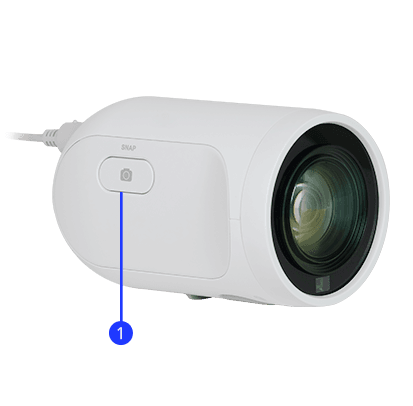

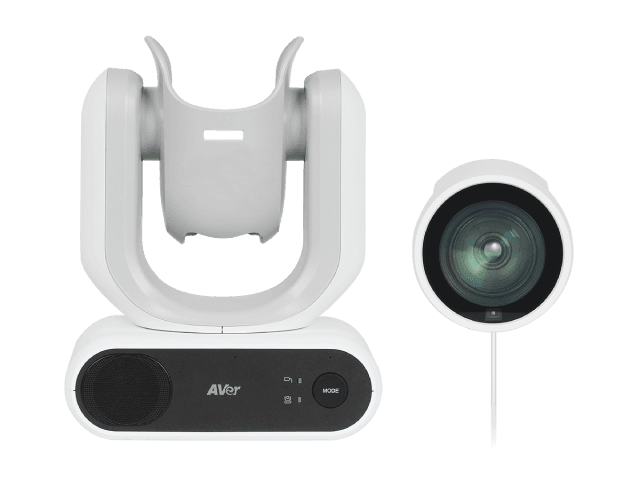

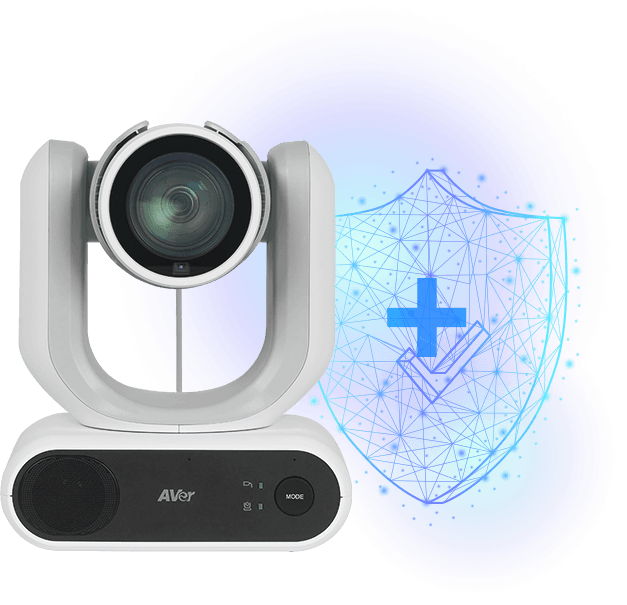

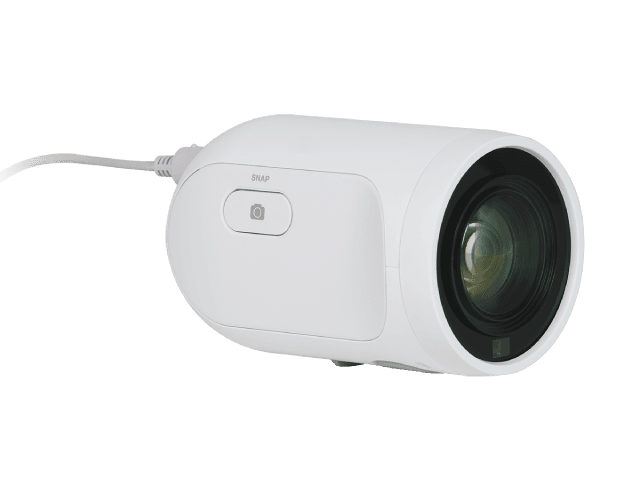

AVer MD330UI is specially designed and medically certified for Telemedicine with the IEC 60601-1-2 Medical Certification. The 30X optical zoom lens with 4K output resolution delivers superb image quality. AI Noise Reduction offers a face-to-face communication experience for patients and doctors. A first in the industry, the detachable camera head makes 360-degree angle close-up shooting and snapshots possible. The MD330UI is available for infrared night view, delivering care 24/7.
24/7 Monitoring with Night Vision
The MD330UI has moved patient monitoring a step forward with its Infrared Night Vision function. This makes 24/7 patient monitoring possible: healthcare providers can monitor patients around the clock without disturbing patient’s sleep or compromising their own safety, providing secure and efficient patient care.
Unparalleled 30X Optical Zoom Capability
The 30X optical zoom lens picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.
Outstanding 4K Resolution
The MD330UI delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

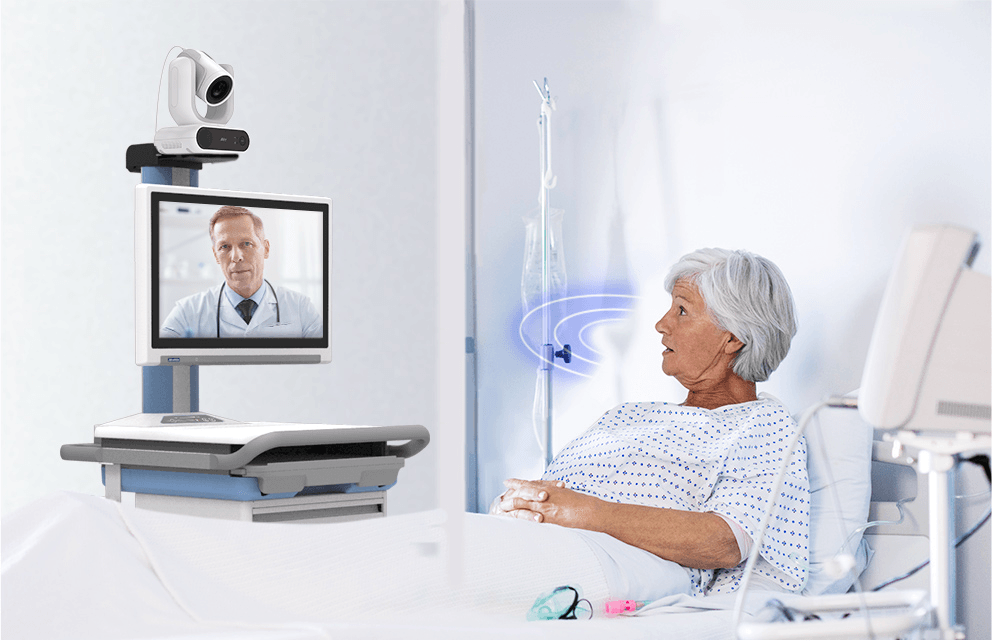

AI Acoustics
With an integrated speakerphone and microphone, the MD330UI is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.
Your Privacy Matters
The MD330UI features a 'Local Privacy Mode' that turns off the transmission of both audio and video, ensuring no information leaves the room in moments that require privacy. Additionally, it has a 'Mosaic Function' that automatically detects and applies a mosaic effect to the bodies/faces within the field of view, protecting patient privacy.
Medical Grade Certification
The IEC 60601-1-2 medical certification not only ensures stability and safety of the MD330UI, but also guarantees the compatibility of other medical grade devices with the MD330UI.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

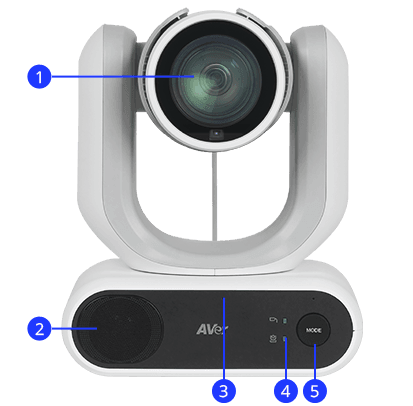

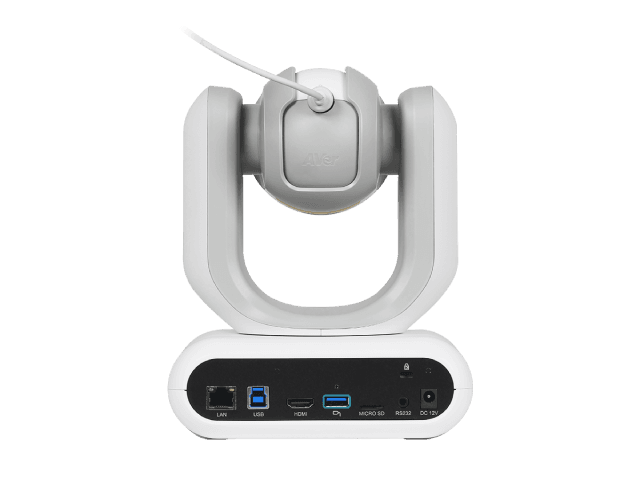

Hardware Specifications
- 1
- Camera Lens
- 2
- Speaker
- 3
- Microphone Array
- 4
- LED Indicator
- 5
- Mode Switch Button
- 6
- USB Type-A for Camera Connection
- 7
- RJ45
- 8
- USB 3.0 Type-B
- 9
- HDMI
- 10
- USB Type-A
- 11
- microSD Card Slot
- 12
- RS-232
- 13
- DC 12V
- 14
- Kensington Slot
- 15
- Snapshot Button
Standard Accessories
-
Remote Control
-
Power Adapter
-
064APOWERA5P(UK) 064APOWERCBX (EU) Power Cord
-
USB 3.0 Type-A to B Cable (1.5m)
-
On-Camera Lens Cable (Standard, 180 cm)
-
Short Lens Cable (55 cm)
-
1/4"-20L 7.5 mm Screw (x2)
-
Quick Start Guide
Optional Accessories
-
60S5120000AB Wall Mount Bracket (White)
-
60S3310000AC Ceiling Mount Bracket (White)
-
60S3300000AB PTZ Camera Controller CL01
-
Long Lens Cable (600 cm)
Specifications
Camera
| Image Sensor | 1/2.8' 4K Exmor CMOS |
|---|---|
| Effective Picture Elements | 8 Megapixels |
| Output Resolutions | 4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30 |
| Minimum Illumination | 0.7 lux (IRE50, F1.6, 30fps) |
| S/N Ratio | ≥ 50 dB |
| Gain | Auto, Manual |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Exposure Control | Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR |
| White Balance | Auto, Manual |
| Optical Zoom | 30X |
| Viewing Angles | DFOV: 75.5° (Wide) to 3.1° (Tele) HFOV: 68.0° (Wide) to 2.7° (Tele) VFOV: 41.7° (Wide) to 1.5° (Tele) |
| Focal Length | f = 4.3 mm (Wide) to 129 mm (Tele) |
| Aperture (Iris) | F = 1.6 (Wide) to 4.7 (Tele) |
| Minimum Working Distance | 0.01 m (Wide), 1.2 m (Tele) |
| Pan / Tilt Angles | Pan: ±170°, Tilt: +90° / -35° |
| Pan / Tilt Speed (Manual) | Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec |
| Preset Speed | Pan: 200° / sec, Tilt: 200° / sec |
| Preset Positions | 10 (IR), 256 (RS-232 / IP) |
| Camera Control - Protocols | VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP) |
| Image Processing | Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC |
| Power Frequencies | 50 Hz, 60 Hz |
Speaker
| Embedded Speaker | Yes |
|---|---|
| SPL | 77 dB SPL (1W / 1m) |
| Maximum SPL | 90 dB SPL at 0.5 m |
Microphone
| Built-in Microphone | 2 (Omnidirectional) |
|---|---|
| AI Noise Reduction | Yes |
| Sensitivity | -33 dBFS |
| Frequency Response | 20 Hz to 20 KHz |
| Maximum SPL | 133 dB SPL at 0.5 m |
Loop Recording
| Resolution | Up to 4K |
|---|---|
| Length of Video | 5 minutes |
| Recording Modes | Loop & continuous |
| Loop Mechanism | Wipe the oldest clip |
Interface
| Video Outputs | HDMI, IP, USB |
|---|---|
| Audio Outputs | HDMI, IP, USB |
General
| Power Requirement | AC 100 - 240V to DC 12V/3.34A |
|---|---|
| Power Consumption | 36W |
| Dimensions (W x H x D) | 168.0 x 205.0 x 126.0 mm |
| Net Weight | 1.95 kg |
| Application | Indoor |
| Tally Lamp | N/A |
| Security | Kensington Slot |
| Remote Control | Infrared |
| Operating Conditions | Temperature: 0 °C to +35 °C Humidity: 20% to 80% |
| Storage Conditions | Temperature: -20 °C to +60 °C Humidity: 20% to 95% |
IP Streaming
| Resolution | 4K 30fps |
|---|---|
| Network Video Compress Formats | H.264, H.265 |
| Maximum Frame Rate | 4K 30fps |
| Network Interface | 10 / 100 / 1000 Base-T |
| Multi-Stream Capability | 2 (RTSP / Web Page), 4K 30fps (max.) |
| Network Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
USB
| Connector | USB 3.0 |
|---|---|
| Video Format | MJPEG, YUY2 |
| Audio Format | PCM |
| USB Video Class (UVC) | UVC 1.1 |
| USB Audio Class (UAC) | UAC 1.0 |
Software Tools
| IP Search and Configuration Tool | Support Windows® 7 or later |
|---|
Warranty
| Camera | 3 Years |
|---|---|
| Accessories | 1 Year |
Package Contents
| Package Contents | Camera, Remote Control, Power Adapter, Power Cord, USB 3.0 Type-A to B Cable (1.5m), On-Camera Lens Cable (Standard, 180 cm), Short Lens Cable (55 cm), 1/4”-20, L=7.5mm Screw (x2), Quick Start Guide |
|---|
