CB-310
Interactive Control Box
The Hub of the Classroom
- Android™ 7.1Operating system
- 4 GB DDR3RAM
- 8 GB / 32 GB (optional)ROM

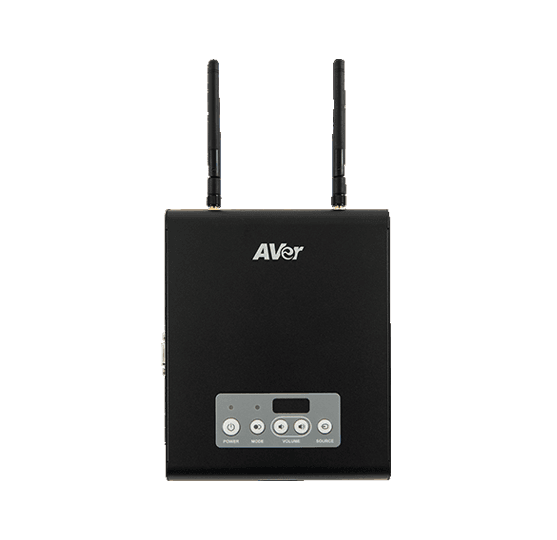

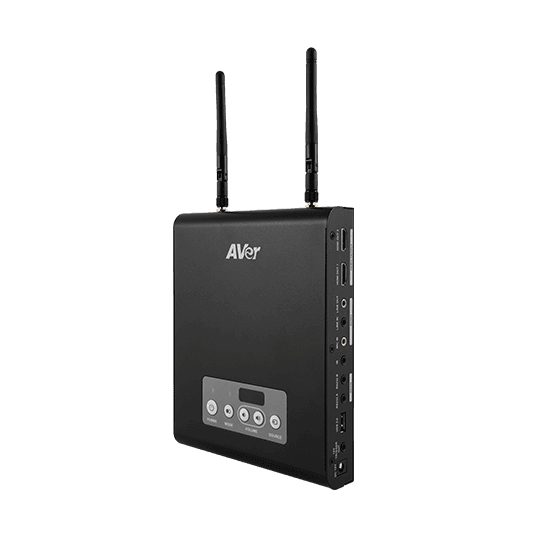

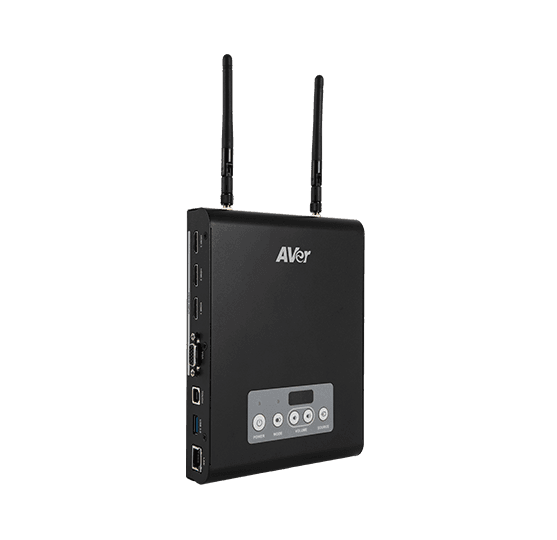

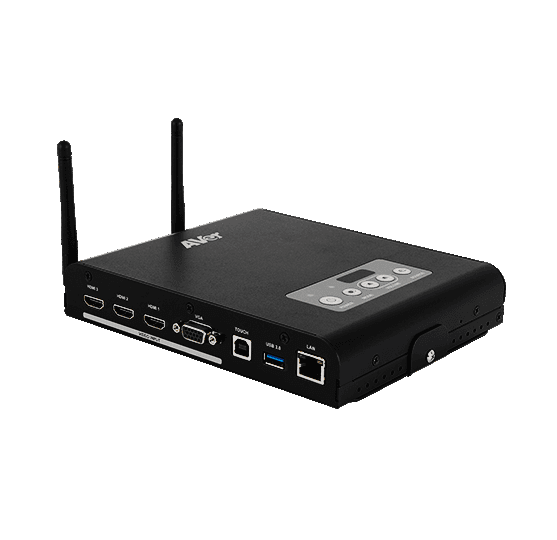

Product views
Overview

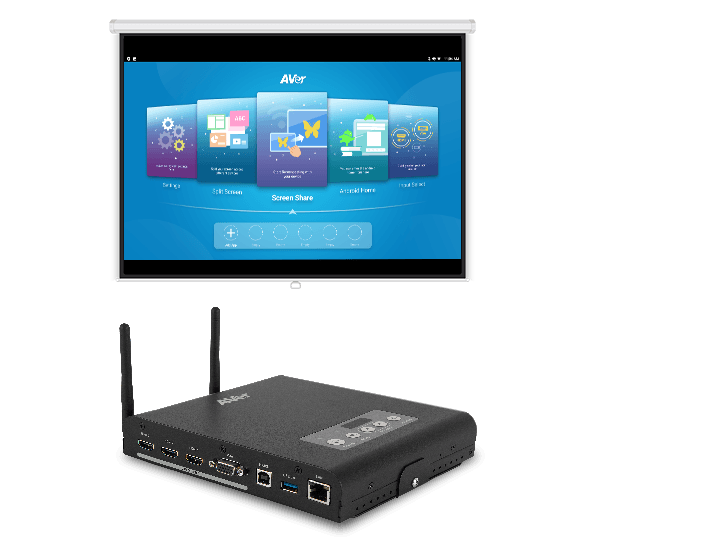

The AVer CB-310 is an indispensable, stand-alone Android™ module that easily connects to any display and converts traditional classroom equipment into powerful student-engagement tools. Use the CB-310 to enhance learning through new types of interactive experiences.

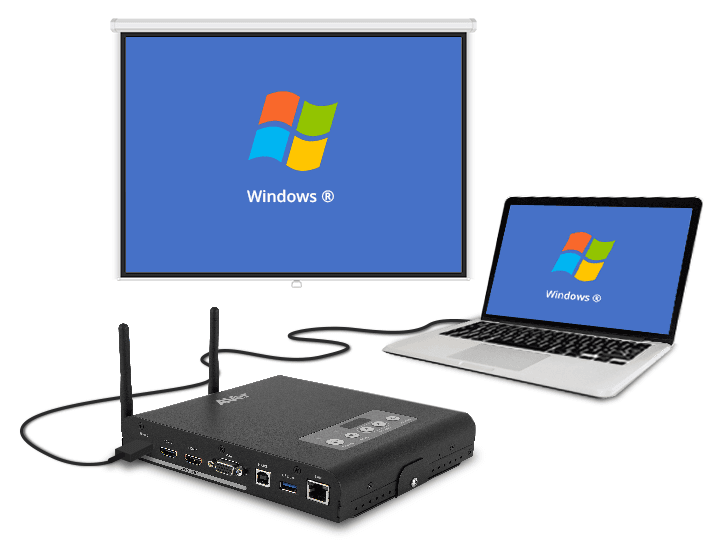

Get More Without Changing User Behavior

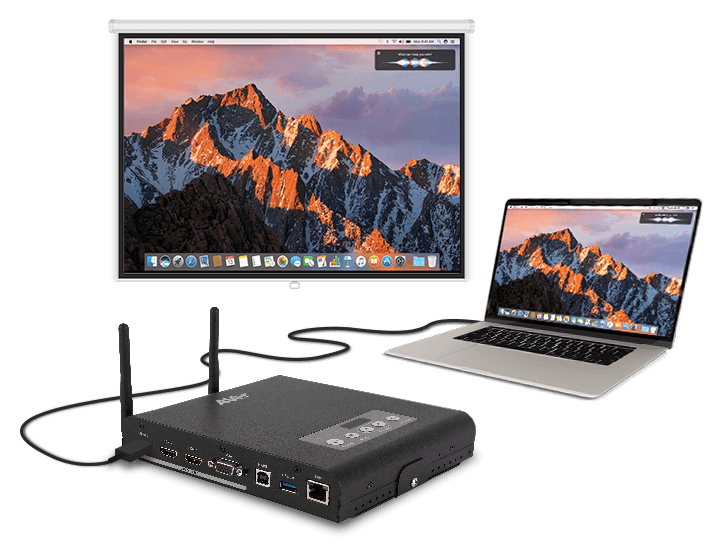

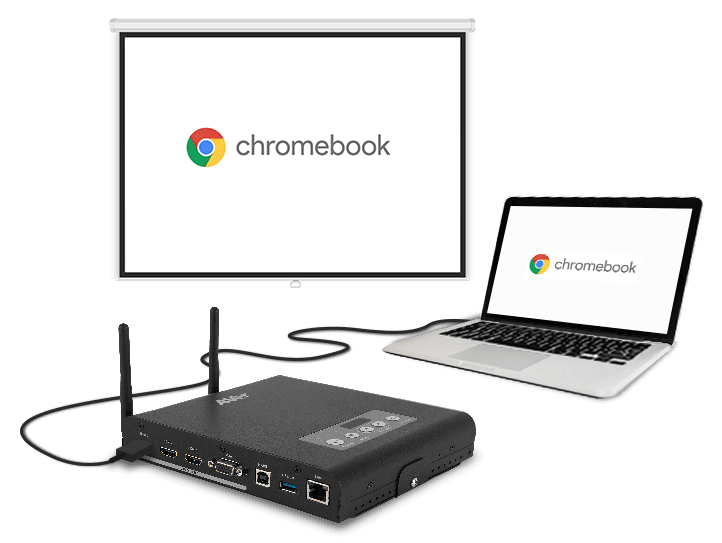

Don’ t worry about a learning curve. This device allows you to use Windows®, Mac®, Chrome® and Android™ platforms at the same time by simply switching input sources. Turn old classrooms into modern collaboration centers in moments.
Make the Most of Existing Equipment

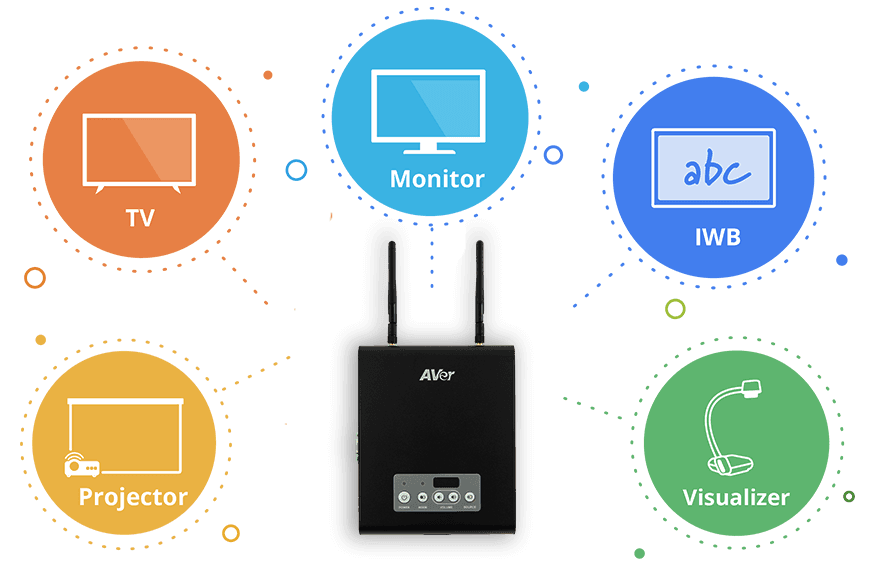

Designed for seamless integration via multiple output ports, the CB-310 brings incredible compatibility to existing classroom equipment, transforming TVs, IWBs, monitors, projectors, and visualizers (document cameras) into cutting-edge learning devices.

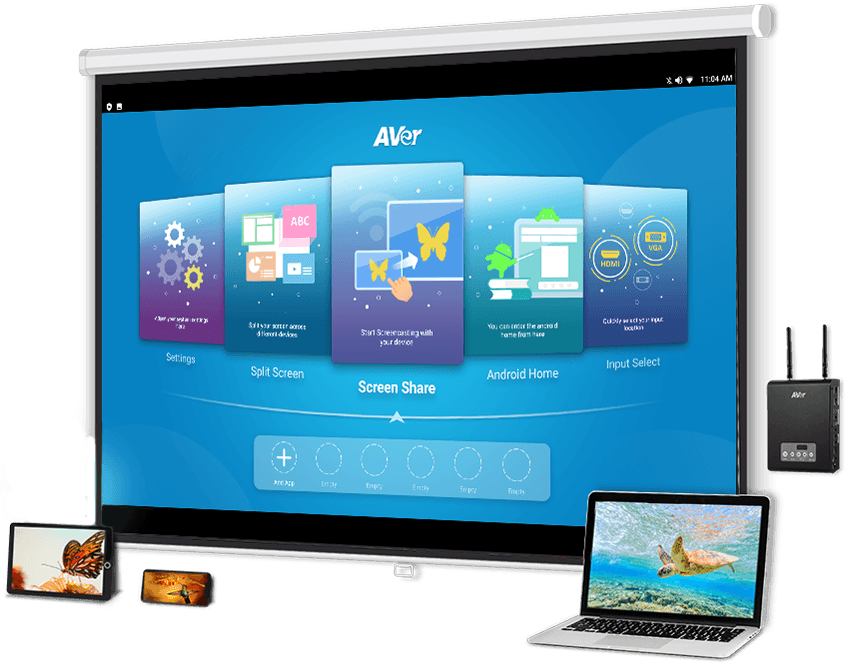

Enjoy Powerful ScreenShare Technology

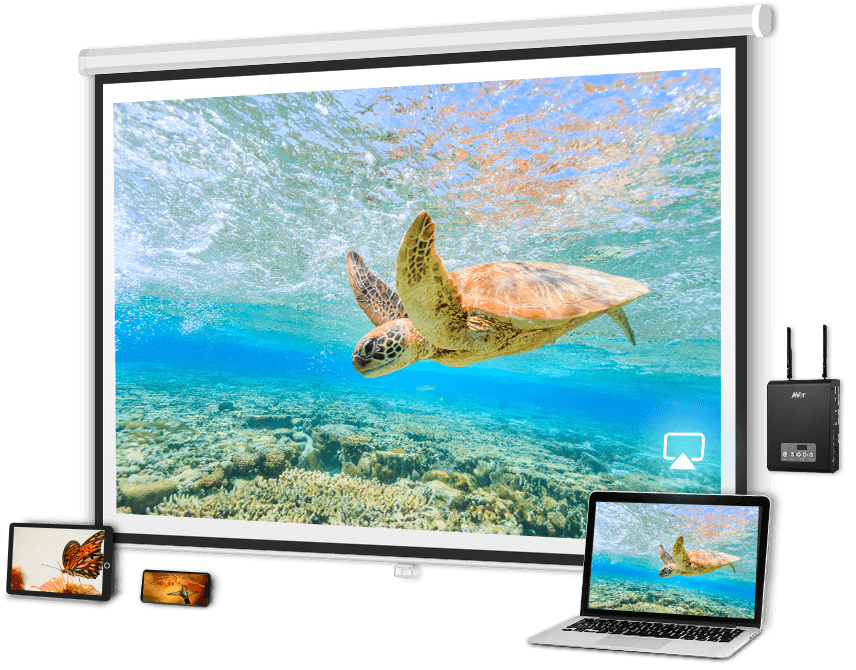

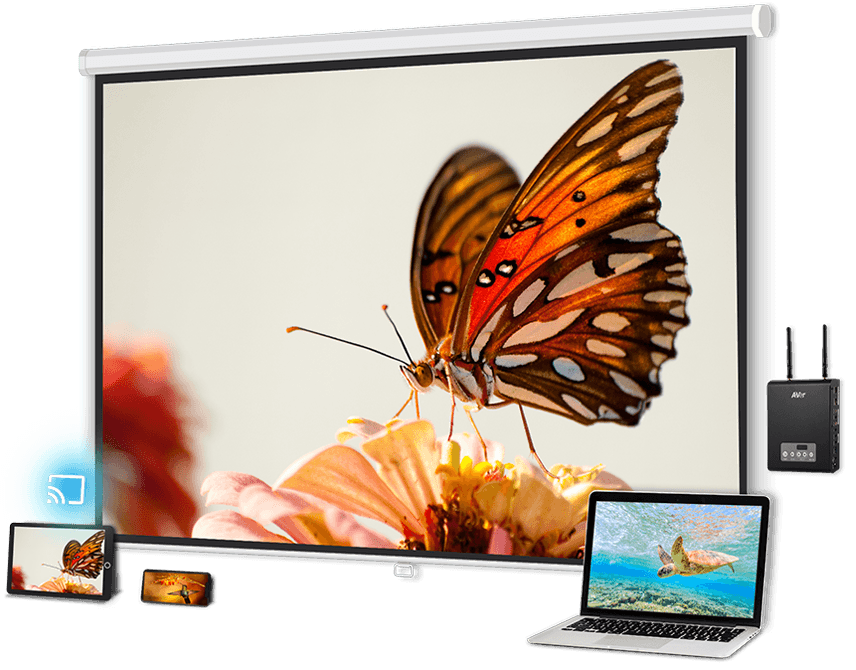

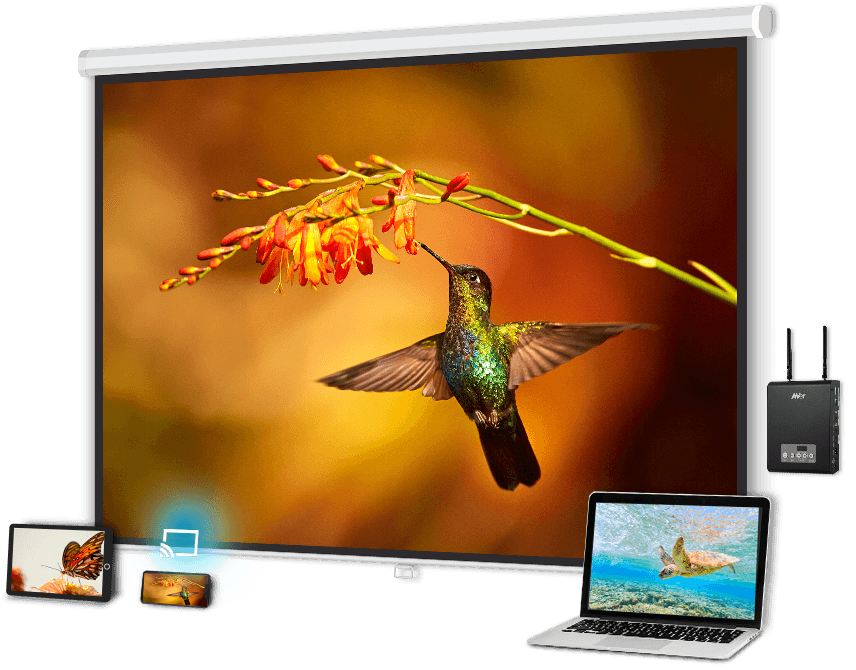

Take out your smartphone, tablet, or laptop to begin brainstorming, and then wirelessly share your thoughts with everyone. Get rid of cables and begin remotely mirroring content from your devices!
Split the Screen Up to Four Ways
Too many ideas and group presentations to share at once? Students can cast their work in two, three, or four split screens. It’s perfect for side-by-side comparisons and group collaboration.

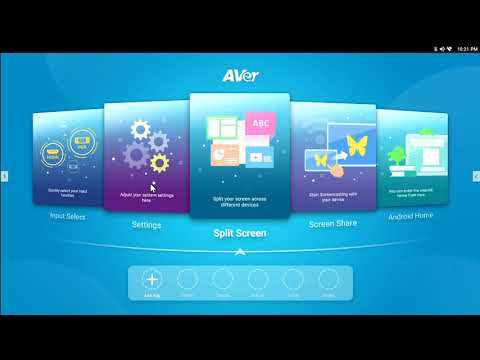

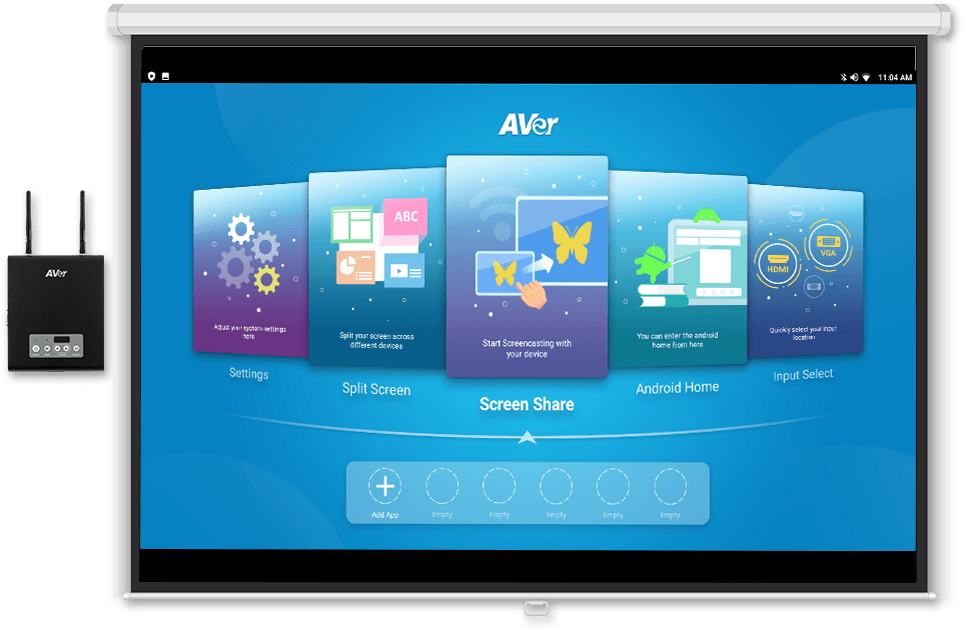

Customize Your Class

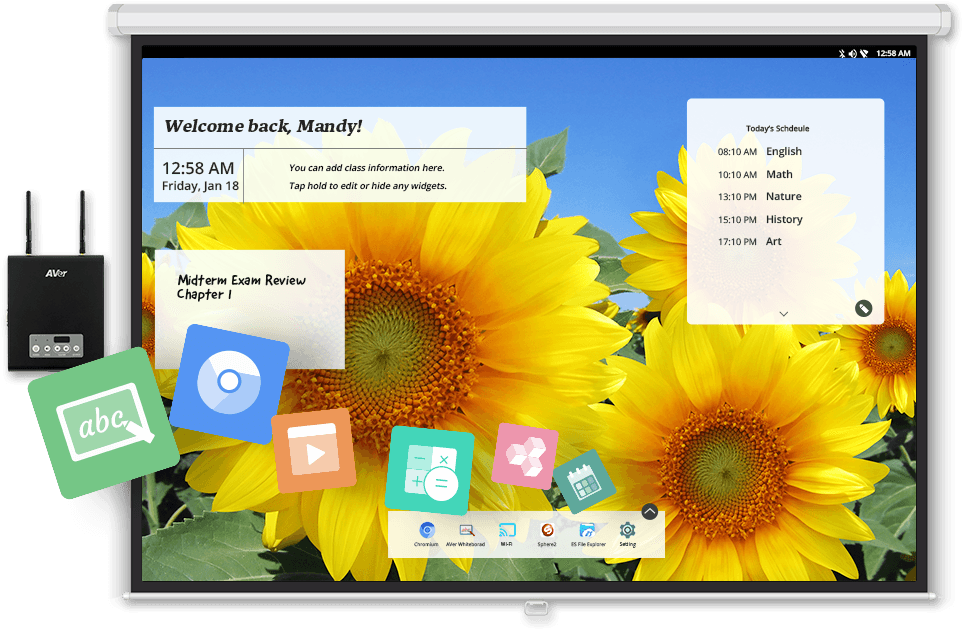

Set your favorite wallpaper and create up to six shortcuts for your most-used apps. Log in with a personal ID and find everything always ready for class. Also, while multiple users can access the CB-310, each individual’s data is secure.
Standard Accessories
-
04091R5AAABX Batteries
-
Foot rubber
-
Wi-Fi antenna
-
Quick guide
-
Remote Control
-
Wall mount
-
Power Adaptor
-
Power Cable
Optional Accessories
-
HDMI Cable
-
USB Cable
Specifications
Operating system
| Operating system | Android™ 7.1 |
|---|---|
| RAM | 4 GB DDR3 |
| ROM | 8 GB / 32 GB (optional) |
| LED indicator | Green: power on Red: standby Off: power off |
| Wireless band | 2.4 & 5 GHz |
| Wireless connectivity | 802.11n & 802.11ac MIMO |
| Wireless standard | AC1200 |
| Wireless speed | 860 Mbps |
| Android™ hotspot | Up to 10 users |
| External USB camera support | Yes, via software USB 3.0; USB 2.0 UVC |
| Communication protocol | RS-232 |
| Network connectivity | Gigabit / 10 / 100 Base-T Lan (WOL included) |
| Bluetooth® | Bluetooth® 4.2 |
| Power | 12V / 4A |
| Wall mount | Yes |
| Buttons | Power, Mode, Volume up, Volume down, Source |
| Certification | CE, FCC, BSMI, NCC, SRRC |
| Warranty | 3 years |
| Dimensions (W x D x H) | 15.4 x 19.0 x 3.3 cm |
| Net weight | 2.7 ± 0.1 kg |
| Video input | Select through menu with preview |
| Resolution | Output: up to 4K / 2K at 60fps Input: 1920 x 10801280 x 7201600 x 12001680 x 10501440 x 10501440 x 9001366 x 7681360 x 7681280 x 10241280 x 9601280 x 8001024 x 768 1920 x 1080 1280 x 720 1600 x 1200 1680 x 1050 1440 x 1050 1440 x 900 1366 x 768 1360 x 768 1280 x 1024 1280 x 960 1280 x 800 1024 x 768 ScreenShare: up to 1080p |
| Auto resolution detection | Yes |
| Codec | H.264: 4K / 2K at 30fps Decoder VP9 |
| Input | HDMI x 3 VGA x 1 USB 2.0 Type-A x 1 USB 3.0 Type-A x 1 3.5 mm x 1 (audio) 3.5 mm x 1 (microphone) IR x 1 RS-232 x 1 |
| Output | HDMI x 2 Touch USB Type-B x 1 3.5 mm x 1 (audio) RS-232 x 1 |
